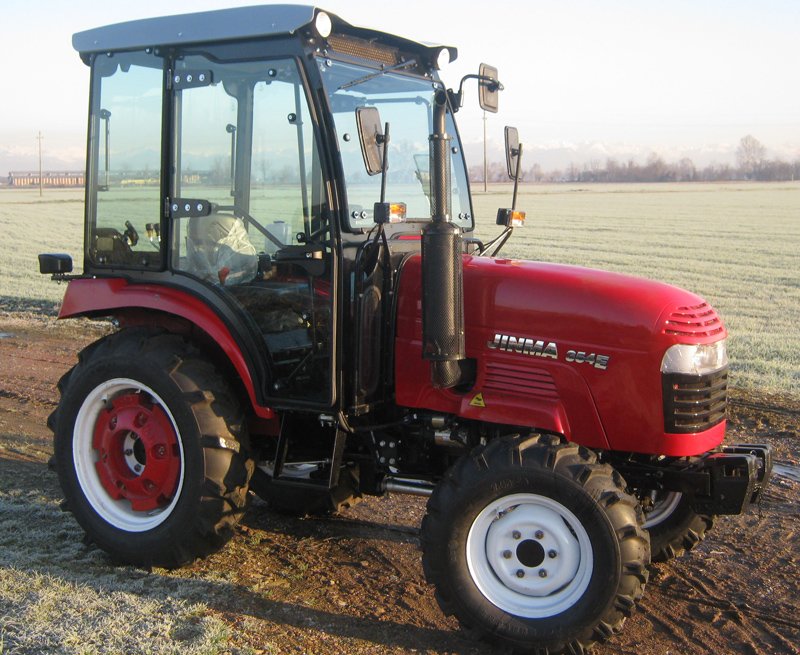

Jinma 244E
Built: 2014-2014 · Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Jinma 244E rolled off the line in 2014 as a tractor. Under the bonnet works a three-cylinder engine displacing 1.5 litres, producing 17.6 kW. Rated power is reached at 2,350 rpm.
Dimensions are 3.98 m by 1.64 m. Unladen, it tips the scales at 1,500 kg.
The engine is water-cooled. Within the range, rated power spans from 11.8 to 92 kW; with 17.6 kW, the 244E sits in the lower third. Directly alongside are the 224 with 16 kW below and the 240E with 18 kW above.
Technical data
Engine
| Engine model | KM385TEcorrect |
|---|---|
| Power | 24 hp (17.6 kW)correct |
| Rated speed | 2,350 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 1,532 cm³ (1,532 ci)correct |
| Bore | 85 mmcorrect |
| Stroke | 90 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,985 mmcorrect |
|---|---|
| Width | 1,640 mmcorrect |
| Wheelbase | 1,645 mmcorrect |
| Unladen weight | 1,500 kgcorrect |
| Gross vehicle weight | 1,750 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel driveWDcorrect |
|---|---|
| Gears | 8correct |
| Forward gears | 6correct |
| Reverse gears | 2correct |
| Clutch | Dual stagecorrect |
Working data
| Lifting capacity | 4,200correct |
|---|---|
| PTO speed | 540/1000correct |
| Linkage category | Cat Icorrect |
Origin and approval
| Plant | Chinacorrect |
|---|
Where this model stands
Power-to-weight ratio: 11.7 kW/t (18 kW / 1.5 t)
Power class: Compact (< 40 hp)
Stronger than 11% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Jinma 244E have?
The Jinma 244E delivers 24 hp.
How much does the Jinma 244E weigh?
The unladen weight is 1,500 kg.
What is the gross vehicle weight of the Jinma 244E?
1,750 kg.
What engine does the Jinma 244E have?
3 cylinders, 1,532 cm³ displacement.
What are the dimensions of the Jinma 244E?
3,985 mm × 1,640 mm.
When was the Jinma 244E built?
Production years: 2014.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
