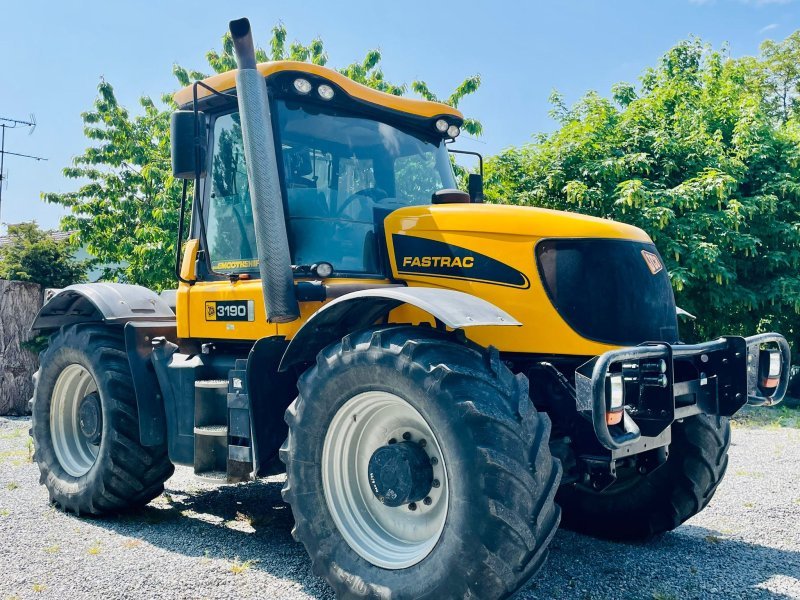

JCB Fastrac 3190 4WD
Series: Fastrac
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The JCB Fastrac 3190 is a tractor from the JCB 4WD Tractor series. The six-cylinder engine, displacing 5.9 litres, produces 196 hp (132.7 kW). Rated speed is 2,300 rpm.
Design speed is 69 km/h. Empty, it weighs 7,970 kg.
Within the range, rated power spans from 157 to 284 hp; with 196 hp, the Fastrac 3190 sits in the mid-field. Directly alongside are the 3230 XTRA with 193 hp below and the Fastrac 3220 with 223 hp above.
Technical data
Engine
| Engine model | QSB44correct |
|---|---|
| Power | 195.7 hp (132.7 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 5,884.6 cm³correct |
| Aspiration | Turbocharged and aircharge cooledcorrect |
Dimensions and weights
| Ground clearance | 410.2correct |
|---|---|
| Unladen weight | 7,970 kgcorrect |
Drivetrain and chassis
| Gearbox type | 6 gear manual gearbox synchromesh gearboxcorrect |
|---|---|
| Reverse gears | 18correct |
| Tyre size | 520/70R30correct |
| Top speed | 68.6 km/hcorrect |
| System voltage | 12 Vcorrect |
Working data
| Pump flow | 104.1 l/mincorrect |
|---|---|
| Hydraulic oil capacity | 120.4 lcorrect |
| Hydraulic pressure | 210correct |
| Fuel tank capacity | 350.2 lcorrect |
Where this model stands
Power-to-weight ratio: 16.6 kW/t (133 kW / 8 t)
Power class: Heavy (> 180 hp)
Stronger than 89% of the tractors in the register — out of 15,240 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the JCB Fastrac 3190 have?
The JCB Fastrac 3190 delivers 196 hp.
How much does the JCB Fastrac 3190 weigh?
The unladen weight is 7,970 kg.
What engine does the JCB Fastrac 3190 have?
6 cylinders, 5,885 cm³ displacement.
How fast does the JCB Fastrac 3190 go?
Top speed is 68.6 km/h.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 18 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
