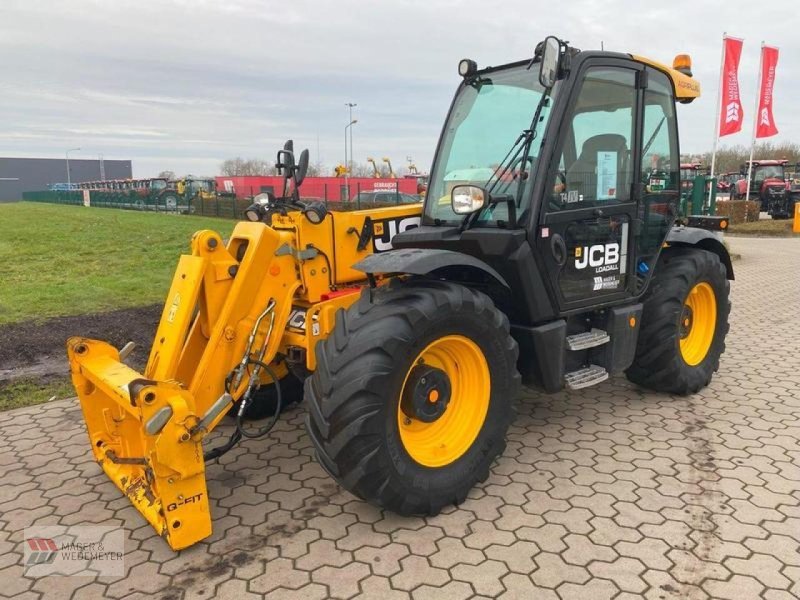

JCB 541-70 AGRI PLUS (93.2 kW)
Series: JCB Telescopic Forklift
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
JCB Loadall — the number before the dash is load, after it height, plus stabilisers and frame levelling on the larger models
JCB telehandlers carry their key figures in the name. Before the dash stands the rated lift capacity, after it the lift height. A 525-60 lifts 2.5 tonnes to 6 metres; a 514-40 reaches 4 metres. Comparing two machines needs no data sheet — the designation says it.
Read on 4 more paragraphs
That makes the range unusually easy to read. A 531-70 lifts around 3.1 tonnes to 7 metres, a 541-70 a good 4 tonnes to the same height. The first number decides the load, the second the reach — and together they decide whether the machine suits the job.
A trailing T marks differing versions of the same size, as in the 531-T70 against the 531-70. Anyone sourcing parts or comparing offers should read that letter too; it separates variants that would otherwise read alike.
One thing stays important with any telehandler: rated capacity applies to a specific load centre and to the boom retracted. The further the boom extends, the less may hang from it. What a machine may actually lift in a given position is in the load chart — not in the type designation.
On larger JCB Loadall models with greater lift height, extending stabiliser legs are also fitted, widening the support base so that the load-chart figures for supported operation become valid in the first place; a frame-levelling system also corrects cross-slope in the ground by a few degrees, keeping the boom vertical even on slightly uneven terrain.
Sources: SpecCodex register, model data: JCB Telescopic Forklift
Technical data
Engine
| Engine model | 444correct |
|---|---|
| Power | 126.7 hp (93.2 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 527.4 Nmcorrect |
| Speed at max. torque | 1,300 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,400 cm³correct |
| Aspiration | Turbo Intercooledcorrect |
Dimensions and weights
| Height | 2,540 mmcorrect |
|---|---|
| Ground clearance | 481.6 mmcorrect |
| Unladen weight | 7,561.4 kgcorrect |
Drivetrain and chassis
| Gearbox type | powershift transmissioncorrect |
|---|---|
| Forward gears | 4correct |
| Reverse gears | 4correct |
| Tyre size | 500/70 R24correct |
Working data
| Lift height | 7,000 mmcorrect |
|---|---|
| Pump flow | 191.2 l/mincorrect |
| Hydraulic pressure | 259.9 barcorrect |
Other data
| System voltage | 12 Vcorrect |
|---|
More machines with this engine (444, 18)
Where this model stands
Power-to-weight ratio: 12.3 kW/t (93 kW / 7.6 t)
Stronger than 80% of the telehandlers in the register — out of 661 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the JCB 541-70 AGRI PLUS have?
The JCB 541-70 AGRI PLUS delivers 127 hp.
How much does the JCB 541-70 AGRI PLUS weigh?
The unladen weight is 7,561 kg.
What engine does the JCB 541-70 AGRI PLUS have?
4 cylinders, 4,400 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 20 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
