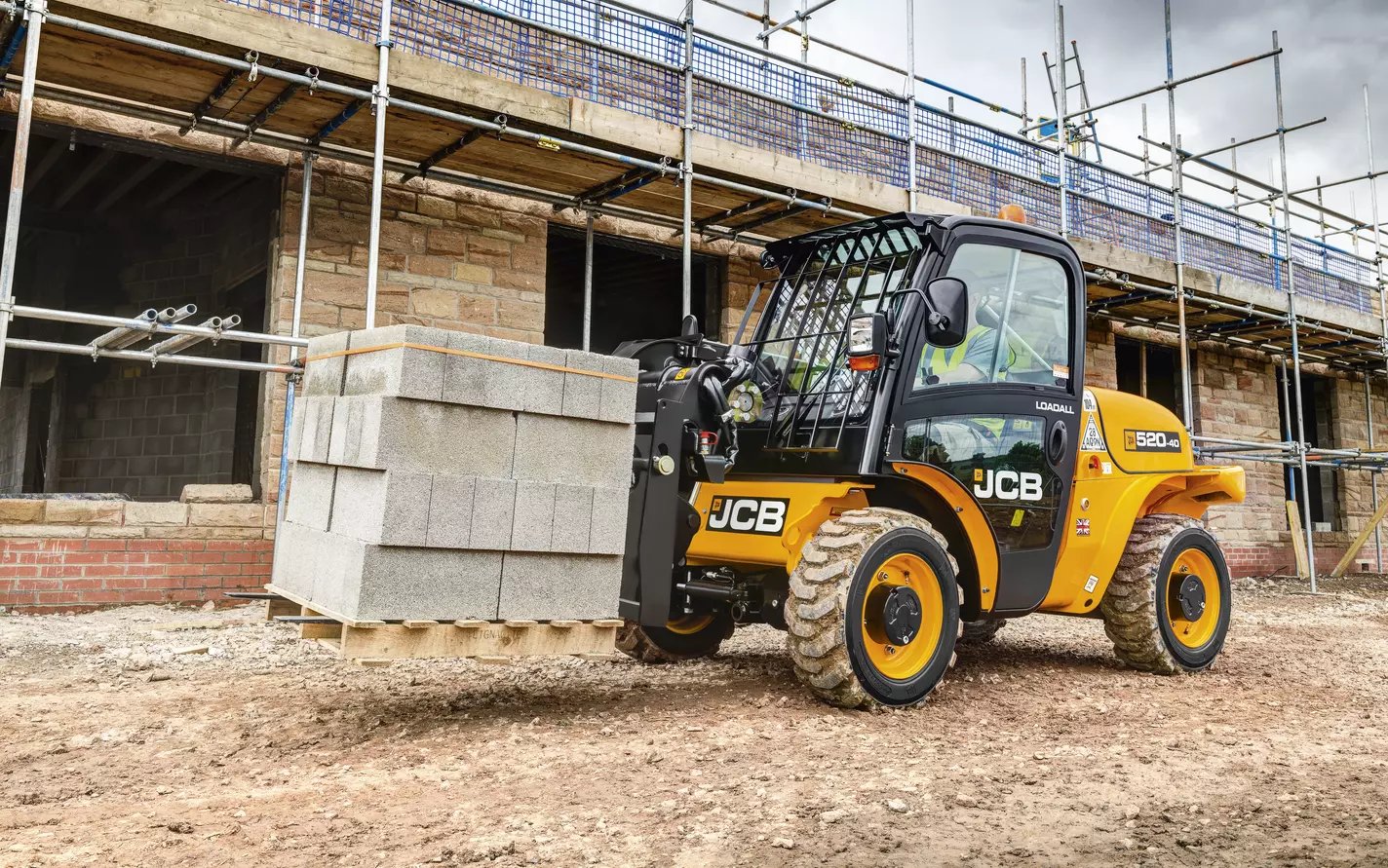

JCB 520
Series: JCB Telescopic Forklift
JCB Loadall — the number before the dash is load, after it height
JCB telehandlers carry their key figures in the name. Before the dash stands the rated lift capacity, after it the lift height. A 525-60 lifts 2.5 tonnes to 6 metres; a 514-40 reaches 4 metres. Comparing two machines needs no data sheet — the designation says it.
Read on 3 more paragraphs
That makes the range unusually easy to read. A 531-70 lifts around 3.1 tonnes to 7 metres, a 541-70 a good 4 tonnes to the same height. The first number decides the load, the second the reach — and together they decide whether the machine suits the job.
A trailing T marks differing versions of the same size, as in the 531-T70 against the 531-70. Anyone sourcing parts or comparing offers should read that letter too; it separates variants that would otherwise read alike.
One thing stays important with any telehandler: rated capacity applies to a specific load centre and to the boom retracted. The further the boom extends, the less may hang from it. What a machine may actually lift in a given position is in the load chart — not in the type designation.
Sources: JCB 525-60 Datenblatt, profi: JCB 514-40, JCB Loadall-Übersicht
Technical data
Engine
| Power | 77.1 hp (56.7 kW)correct |
|---|---|
| Rated speed | 2,000 rpmcorrect |
| Torque | 289.7correct |
| Speed at max. torque | 1,400 rpmcorrect |
Dimensions and weights
| Wheelbase | 1,530.1correct |
|---|---|
| Ground clearance | 301.8correct |
| Unladen weight | 4,490.6 kgcorrect |
Drivetrain and chassis
| Gearbox type | 4-speed Synchro shuttlecorrect |
|---|---|
| Forward gears | 4correct |
| Reverse gears | 4correct |
| Tyre size | 10.5/80-18 non ballasted tirescorrect |
Origin and approval
| Version | 2WD, rear steer Loadallcorrect |
|---|
Where this model stands
Power-to-weight ratio: 12.6 kW/t (57 kW / 4.5 t)
Stronger than 16% of the telehandlers in the register — out of 658 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the JCB 520 have?
The JCB 520 delivers 77.1 hp.
How much does the JCB 520 weigh?
The unladen weight is 4,491 kg.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
