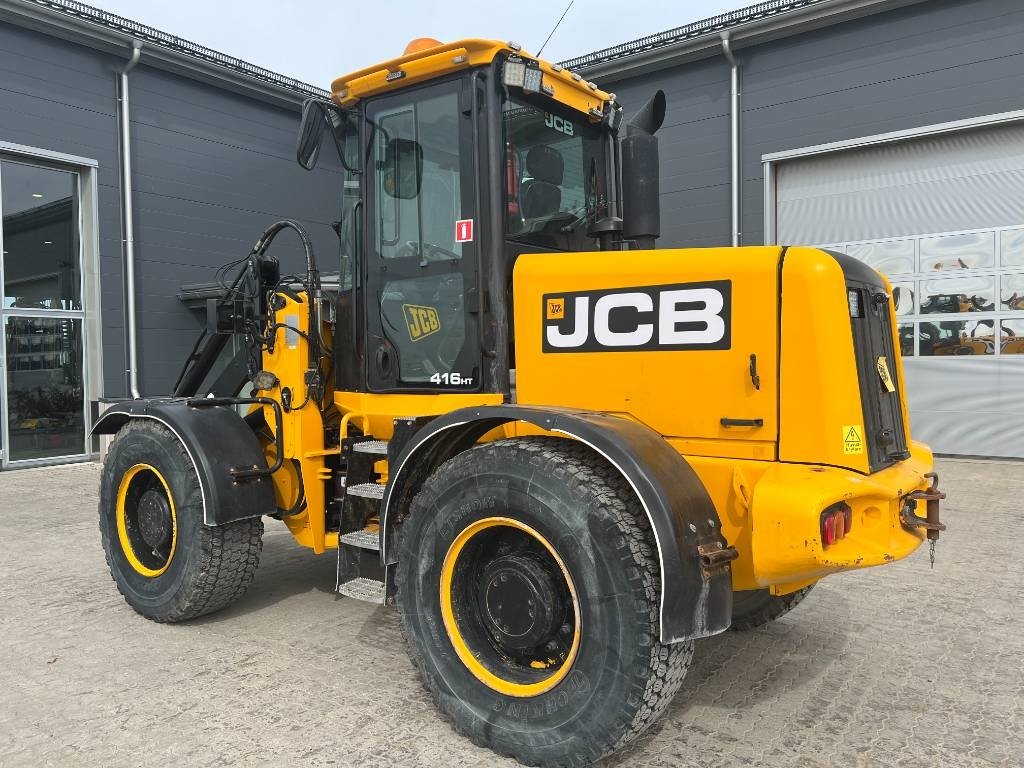

JCB 416HT High Lift
Series: JCB Integrated Tool Carrier
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
JCB Integrated Tool Carrier – the wheel loader that can also lift pallets
JCB's "Integrated Toolcarrier" concept combines a wheel loader and a forklift in one machine: a quick-hitch on the loader arm lets the operator swap between a bucket, pallet forks, or other attachments without tools. Unlike a classic forklift, the model number — 406, 407B or 412S, for instance — does not encode a standardised capacity or lift-height formula but simply marks the size class within the range.
Read on 3 more paragraphs
Models recorded in the database span engine outputs of 41 to 154 kW, own weights of 4,708 to 21,627 kg, and loader-arm lift heights of 2,980 to 5,200 mm, with engines of 3,108 to 8,300 cm³ displacement across 4 to 6 cylinders and torque of 189 to 994 Nm — a range from compact yard loaders to heavy construction-site machines.
Models such as 406, 407B, 412S, 414S or 416S show that breadth: from small, manoeuvrable loaders for recycling and agricultural operations to large toolcarriers for construction and industrial duty with correspondingly higher lift and breakout force.
For a used machine of this type, beyond the usual engine and transmission check, the quick-hitch and loader-arm pivot bearings matter most — frequent attachment changes and pallet-fork work subject this interface to specific wear that shows up less often on machines used purely for bucket loading.
Sources: Kennwerte der Modelle JCB Integrated Tool Carrier, - JCB-Katalog: Wheeled Loading Shovel 406/407/409, Toolcarrier-Konzept, - JCB (offiziell): 406 Wheel Loader
Technical data
Engine
| Engine model | Dieselmaxcorrect |
|---|---|
| Power | 126.7 hp (86.5 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 524.7correct |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,401.6 cm³correct |
| Aspiration | Turbocharged wastegatedcorrect |
| Coolant capacity | 22.7 lcorrect |
| Engine oil capacity | 10.6 lcorrect |
Dimensions and weights
| Wheelbase | 1,880.6correct |
|---|---|
| Ground clearance | 448.1correct |
| Unladen weight | 9,745 kgcorrect |
Drivetrain and chassis
| Gearbox type | Smooth shift powershift transmissioncorrect |
|---|---|
| Forward gears | 4correct |
| Reverse gears | 3correct |
| Tyre size | Michelin 17.5R25 XHA(L3)correct |
| Turning radius | 5,790 mmcorrect |
Working data
| Lift height | 4,320 mmcorrect |
|---|---|
| Pump flow | 156.3 l/mincorrect |
| Hydraulic oil capacity | 124.9 lcorrect |
| Fuel tank capacity | 139.7 lcorrect |
Other data
| Cab height | 3,154.7correct |
|---|---|
| System voltage | 24 Vcorrect |
More machines with this engine (Dieselmax, 2)
Where this model stands
Power-to-weight ratio: 8.9 kW/t (86 kW / 9.7 t)
Stronger than 71% of the telehandlers in the register — out of 661 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the JCB 416HT High Lift have?
The JCB 416HT High Lift delivers 127 hp.
How much does the JCB 416HT High Lift weigh?
The unladen weight is 9,745 kg.
What engine does the JCB 416HT High Lift have?
4 cylinders, 4,402 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
