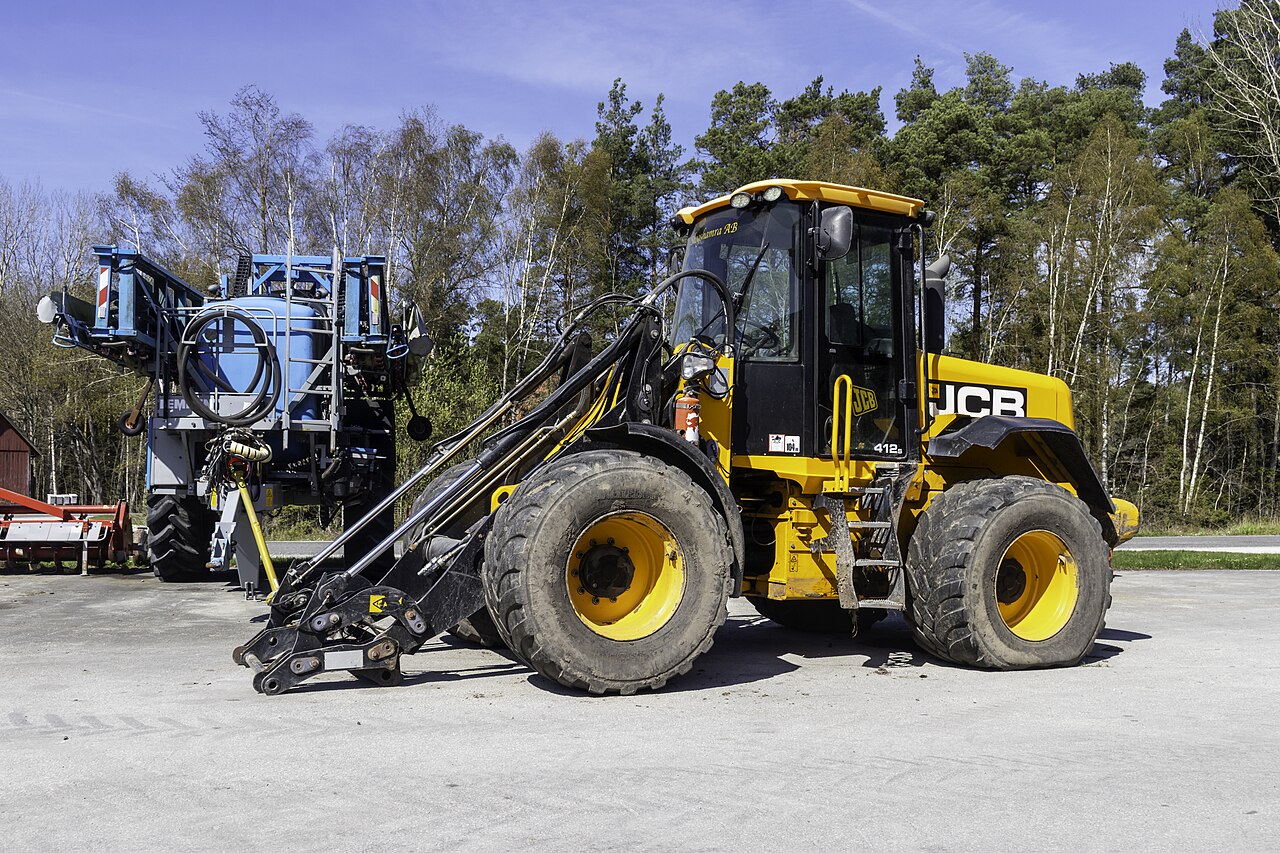

JCB 412S

Series: JCB Integrated Tool Carrier

Wikimedia Commons · CC BY-SA 4.0 · Bene Riobó · Dateiseite

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The JCB 412S is a model in the JCB Integrated Tool Carrier series. The engine delivers 123.1 hp (82 kW), with a displacement of 4,440.9 cm³. Torque is 434.1 Nm. Rated speed is 2,200 rpm. The unladen weight is 8,182 kg. The wheelbase measures 2,700.5 mm. Ground clearance is 402.3 mm. The tank holds 125.3 litres. The gearbox has 6 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,400 rpm. The pump delivers 390.3 l/min. The hydraulic tank holds 110.2 litres. The cooling system holds 21.6 litres. The oil fill is 11 litres. The electrical system runs on 24 V. The engine fitted is the 444. Tyre size: 19,5LR24 XM27. The JCB Integrated Tool Carrier series covers 37 models. Rated output within it ranges from 59.8 to 219 hp; the 412S sits in the lower part of that range with 123.1 hp. Its immediate neighbours are the 411HT below it with 101.4 hp and the 416HT High Lift above it with 126.7 hp. 752 JCB models across 38 series are on record. The model is listed under Telehandlers. 22 verified figures from 1 source are on file.

Technical data

Engine

Engine model444correct
Power123.1 hp (82 kW)correct
Rated speed2,200 rpmcorrect
Torque434.1correct
Speed at max. torque1,400 rpmcorrect
Displacement4,440.9 cm³correct
Aspirationturbochargedcorrect
Coolant capacity21.6 lcorrect
Engine oil capacity11 lcorrect

Dimensions and weights

Wheelbase2,700.5correct
Ground clearance402.3correct
Unladen weight8,182 kgcorrect

Drivetrain and chassis

Gearbox typesmooth shift powershift transmissioncorrect
Forward gears6correct
Reverse gears3correct
Tyre size19.5LR24 XM27correct
System voltage24 Vcorrect

Working data

Pump flow390.3 l/mincorrect
Hydraulic oil capacity110.2 lcorrect
Fuel tank capacity125.3 lcorrect

Other data

Height2,929.1correct

Where this model stands

Power-to-weight ratio: 10 kW/t (82 kW / 8.2 t)

Stronger than 60% of the telehandlers in the register — out of 658 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the JCB 412S have?

The JCB 412S delivers 123 hp.

How much does the JCB 412S weigh?

The unladen weight is 8,182 kg.

What engine does the JCB 412S have?

4,441 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
