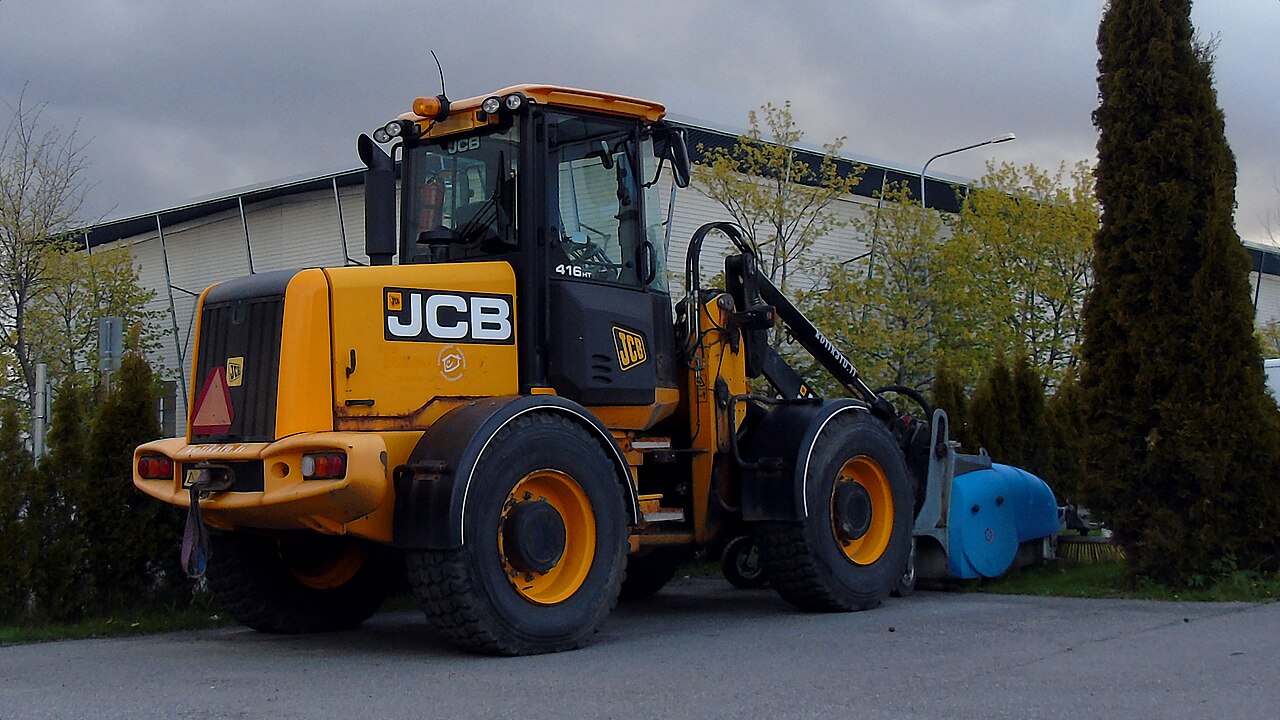

JCB 416HT
Series: JCB Integrated Tool Carrier
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Technical data
Engine
| Engine model | DIESEL MAXcorrect |
|---|---|
| Power | 126.7 hp (86.5 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 524.7correct |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,408.1 cm³correct |
| Aspiration | Turbocharged wastegatedcorrect |
| Coolant capacity | 22.7 lcorrect |
| Engine oil capacity | 10.6 lcorrect |
Dimensions and weights
| Wheelbase | 2,801.1correct |
|---|---|
| Ground clearance | 448.1correct |
| Unladen weight | 10,307.9 kgcorrect |
Drivetrain and chassis
| Gearbox type | Smooth shift powershift transmissioncorrect |
|---|---|
| Forward gears | 4correct |
| Reverse gears | 3correct |
| Tyre size | 17.5 x 25 x 12 ply(L2)correct |
| System voltage | 24 Vcorrect |
Working data
| Pump flow | 156.3 l/mincorrect |
|---|---|
| Hydraulic oil capacity | 124.9 lcorrect |
| Fuel tank capacity | 139.7 lcorrect |
Other data
| Height | 3,154.7correct |
|---|
Where this model stands
Power-to-weight ratio: 8.4 kW/t (86 kW / 10.3 t)
Stronger than 71% of the telehandlers in the register — out of 658 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the JCB 416HT have?
The JCB 416HT delivers 127 hp.
How much does the JCB 416HT weigh?
The unladen weight is 10,308 kg.
What engine does the JCB 416HT have?
4 cylinders, 4,408 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
