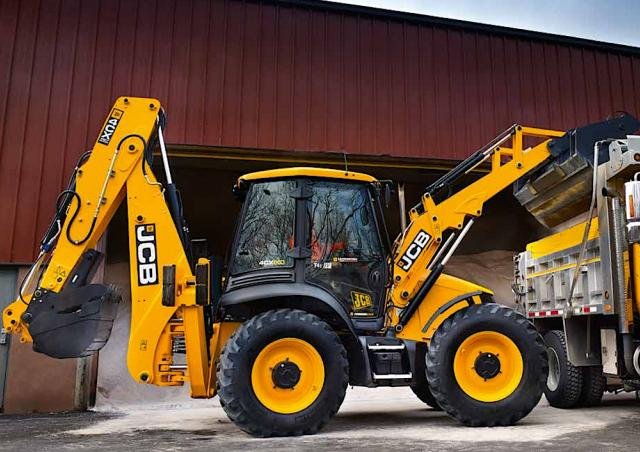

JCB 3CX Super

Series: JCB Loader Backhoe

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 3CX Super from JCB is part of the JCB Loader Backhoe series. The engine delivers 93.3 hp (67.2 kW), has 4 cylinders, with a displacement of 4,401.6 cm³. Rated speed is 2,200 rpm. The wheelbase measures 2,222 mm. Ground clearance is 332.2 mm. The tank holds 160.1 litres. The gearbox has 4 forward gears. There are also 4 reverse gears. Maximum torque is reached at 1,300 rpm. The pump delivers 79.1 l/min. The hydraulic tank holds 132.1 litres. Working pressure is 251.7 bar. The cooling system holds 18.5 litres. The electrical system runs on 12 V. The JCB Loader Backhoe series covers 36 models. Rated output within it ranges from 20.8 to 101.4 hp; the 3CX Super sits at the top of that range with 93.3 hp. Its immediate neighbours are the 3CX4SMT below it with 91.5 hp and the ACX above it with 99.1 hp. 752 JCB models across 38 series are on record. The model is listed under Wheel loaders. 18 verified figures from 1 source are on file.

Technical data

Engine

Power93.3 hp (67.2 kW)correct
Rated speed2,200 rpmcorrect
Speed at max. torque1,300 rpmcorrect
Cylinders4correct
Displacement4,401.6 cm³correct
Aspirationturbochargedcorrect
Coolant capacity18.5 lcorrect

Dimensions and weights

Wheelbase2,222correct
Ground clearance332.2correct

Drivetrain and chassis

Gearbox typesyncroshuttlecorrect
Forward gears4correct
Reverse gears4correct
System voltage12 Vcorrect

Working data

Pump flow79.1 l/mincorrect
Hydraulic oil capacity132.1 lcorrect
Hydraulic pressure251.7correct
Fuel tank capacity160.1 lcorrect

Frequently asked questions

How much power does the JCB 3CX Super have?

The JCB 3CX Super delivers 93.3 hp.

What engine does the JCB 3CX Super have?

4 cylinders, 4,402 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
