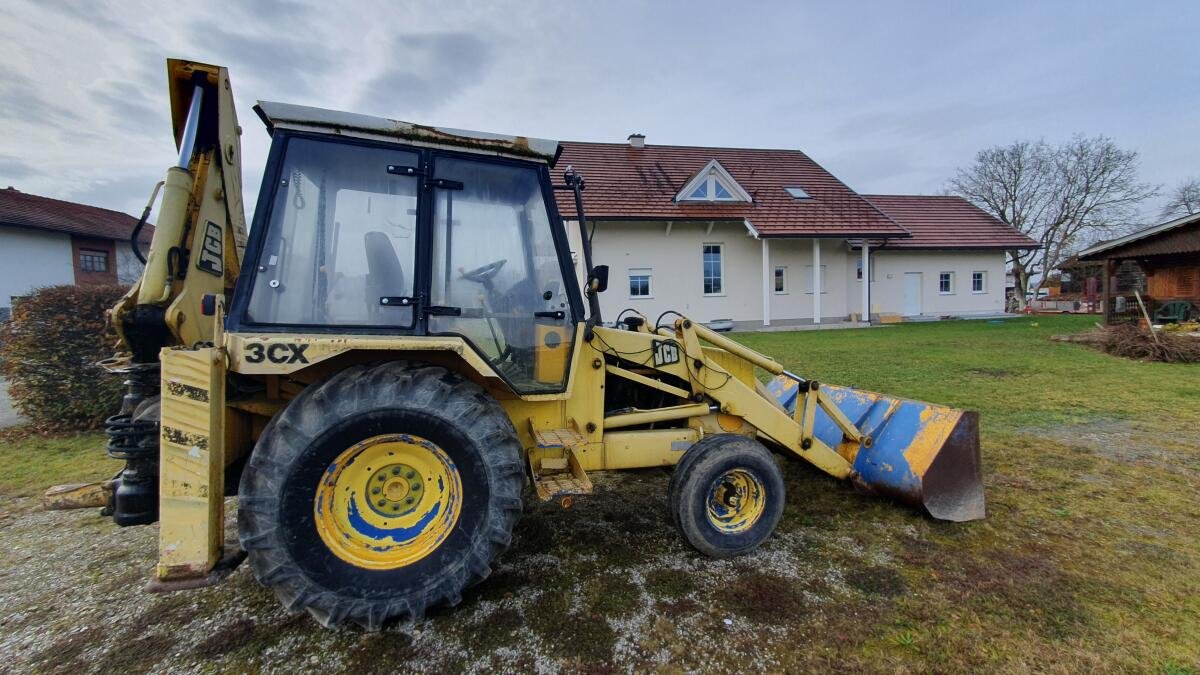

JCB 3C
Series: JCB Loader Backhoe
The 3C from JCB is part of the JCB Loader Backhoe series. The engine delivers 86.2 hp (61.6 kW), has 4 cylinders, with a displacement of 4,401.6 cm³. Rated speed is 2,200 rpm. The wheelbase measures 2,112.3 mm. Ground clearance is 350.5 mm. The tank holds 130.2 litres. The gearbox has 4 forward gears. There are also 4 reverse gears. Maximum torque is reached at 1,200 rpm. The pump delivers 90.1 l/min. The hydraulic tank holds 115.1 litres. Working pressure is 227.5 bar. The cooling system holds 18.5 litres. The electrical system runs on 12 V. The JCB Loader Backhoe series covers 36 models. Rated output within it ranges from 20.8 to 101.4 hp; the 3C sits in the upper part of that range with 86.2 hp. Its immediate neighbours are the 3CX4 below it with 83.8 hp and the 3CX4SMT above it with 91.5 hp. 752 JCB models across 38 series are on record. The model is listed under Wheel loaders. 18 verified figures from 1 source are on file.
Technical data
Engine
| Power | 86.2 hp (61.6 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Speed at max. torque | 1,200 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,401.6 cm³correct |
| Aspiration | Natural Aspiratedcorrect |
| Coolant capacity | 18.5 lcorrect |
Dimensions and weights
| Wheelbase | 2,112.3correct |
|---|---|
| Ground clearance | 350.5correct |
Drivetrain and chassis
| Gearbox type | JCB synchroshuttlecorrect |
|---|---|
| Forward gears | 4correct |
| Reverse gears | 4correct |
| System voltage | 12 Vcorrect |
Working data
| Pump flow | 90.1 l/mincorrect |
|---|---|
| Hydraulic oil capacity | 115.1 lcorrect |
| Hydraulic pressure | 227.5correct |
| Fuel tank capacity | 130.2 lcorrect |
Frequently asked questions
How much power does the JCB 3C have?
The JCB 3C delivers 86.2 hp.
What engine does the JCB 3C have?
4 cylinders, 4,402 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
