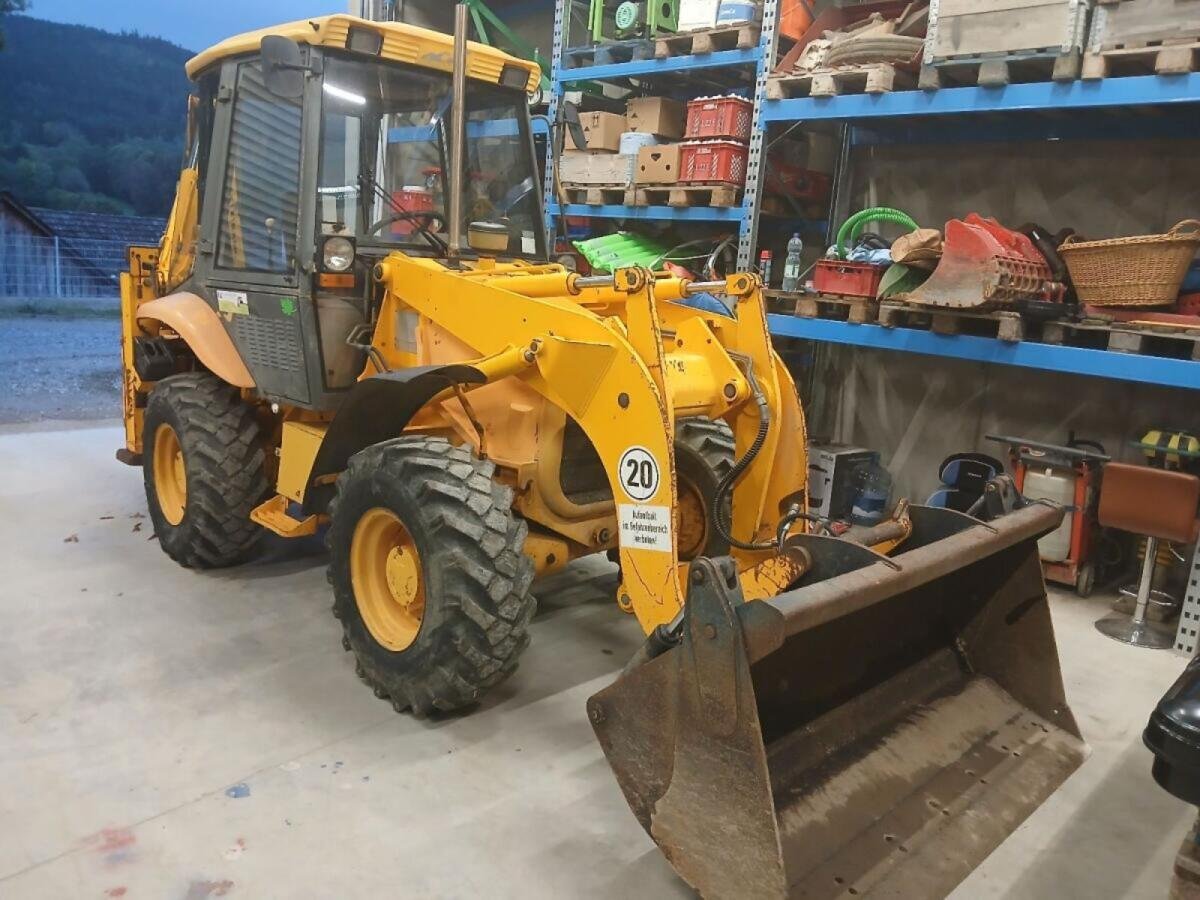

JCB 2CXS

Series: JCB Loader Backhoe

Source: https://www.landwirt.com/kleinanzeigen/detail/jcb-2cx-296071

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The JCB 2CXS belongs to the JCB Loader Backhoe series. The engine delivers 56.1 hp (38.4 kW), has 4 cylinders, with a displacement of 4,401.6 cm³. Rated speed is 2,200 rpm. The wheelbase measures 1,990.3 mm. Ground clearance is 310.9 mm. The tank holds 83.3 litres. The gearbox has 4 forward gears. There are also 4 reverse gears. Maximum torque is reached at 1,200 rpm. The pump delivers 79.1 l/min. The hydraulic tank holds 83.3 litres. Working pressure is 230 bar. The cooling system holds 18.2 litres. The electrical system runs on 12 V. The JCB Loader Backhoe series covers 36 models. Rated output within it ranges from 20.8 to 101.4 hp; the 2CXS sits in the middle of that range with 56.1 hp. Its immediate neighbours are the MIDI CX below it with 50.7 hp and the 3CX ECO CONTRACTOR above it with 74.8 hp. 752 JCB models across 38 series are on record. The model is listed under Wheel loaders. 18 verified figures from 1 source are on file.

Technical data

Engine

Power56.1 hp (38.4 kW)correct
Rated speed2,200 rpmcorrect
Speed at max. torque1,200 rpmcorrect
Cylinders4correct
Displacement4,401.6 cm³correct
Aspirationnaturally aspiratedcorrect
Coolant capacity18.2 lcorrect

Dimensions and weights

Wheelbase1,990.3correct
Ground clearance310.9correct

Drivetrain and chassis

Gearbox typesyncroshuttlecorrect
Forward gears4correct
Reverse gears4correct
System voltage12 Vcorrect

Working data

Pump flow79.1 l/mincorrect
Hydraulic oil capacity83.3 lcorrect
Hydraulic pressure230correct
Fuel tank capacity83.3 lcorrect

Frequently asked questions

How much power does the JCB 2CXS have?

The JCB 2CXS delivers 56.1 hp.

What engine does the JCB 2CXS have?

4 cylinders, 4,402 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
