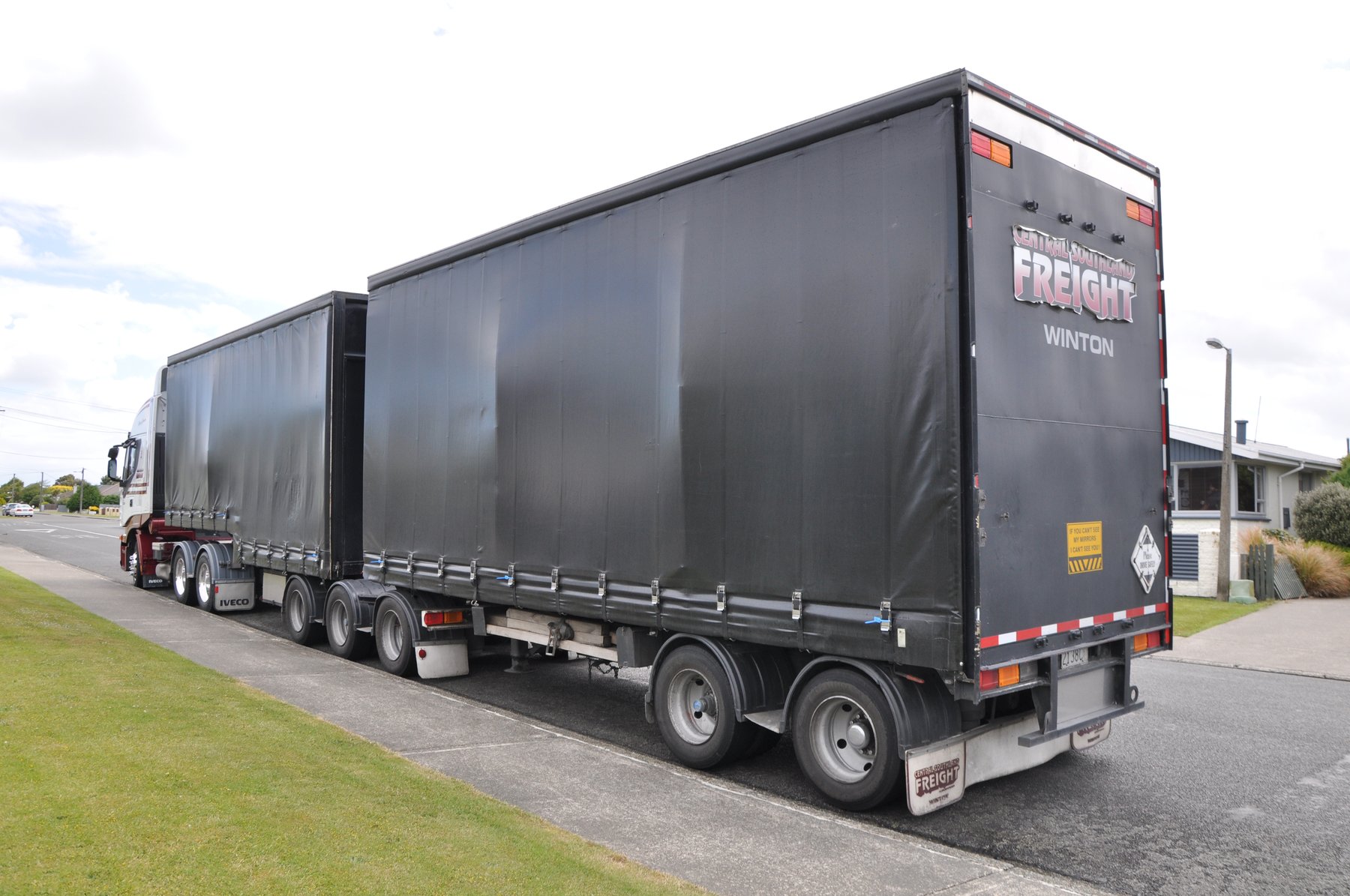

Iveco Stralis 560
Built: 2011-2018 · Series: Stralis
More machines from model year 2011
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Iveco Stralis – the long-haul and distribution range 2002–2019: AD rigid chassis and AS/AT tractor unit, Cursor six-cylinder engines, 228 to 419 kW, also as a natural-gas version
The Iveco Stralis was introduced in 2002 as the successor to the EuroTech and EuroStar and built until 2019, when the S-Way took over; Iveco itself was formed in 1975 from the merger of the Fiat, OM, Lancia and Magirus-Deutz commercial-vehicle businesses. The type designation follows a fixed scheme: AD marks the rigid chassis for bodywork, AS and AT the tractor unit, the following number (190, 260, 340, 440 and so on) the weight or power class, the letters P, S and T after the slash the cab height and equipment, and Y and Z the axle configuration. The Stralis is powered by Iveco's own inline six-cylinder Cursor engines; as the Stralis NP there was also a natural-gas-powered variant, likewise recorded in the register.
Read on 3 more paragraphs
The register lists here 146 versions, with six-cylinder engines throughout, displacements of 7,790 to 12,900 cm³, outputs of 228 to 419 kW, unladen weights of 6,960 to 20,275 kg and gross weights of 11,999 to 42,000 kg; for part of the models, lengths of 6,070 to 12,490 mm are also recorded.
For a decade and a half the Stralis was the backbone of Iveco's European range in long-haul and distribution transport and a competitor to the Mercedes-Benz Actros, Scania R/P, Volvo FH and DAF XF; with the natural-gas version Iveco positioned itself early as a pioneer of alternative drives in the heavy-truck segment.
On a used example, operating hours and mileage, the condition of the clutch and automated manual gearbox, the AdBlue and exhaust system, on the NP natural-gas models the condition and inspection dates of the gas tanks, and the brakes and tyres of the drive axle all count; parts and service run through the Iveco dealer network.
Sources: SpecCodex register, model data: Iveco Stralis, Iveco
Technical data
Engine
| Power | 412 kWcorrect |
|---|---|
| Cylinders | 6correct |
| Displacement | 12,882 cm³correct |
Dimensions and weights
| Length | 9,410 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 5,900 mmcorrect |
| Unladen weight | 20,275 kgcorrect |
| Gross vehicle weight | 27,000 kgcorrect |
Drivetrain and chassis
| Wheels | 10correct |
|---|---|
| Top speed | 90 km/hcorrect |
Where this model stands
Power-to-weight ratio: 20.3 kW/t (412 kW / 20.3 t)
Stronger than 92% of the trucks in the register — out of 25,241 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Iveco Stralis 560 have?
The Iveco Stralis 560 delivers 412 kW.
How much does the Iveco Stralis 560 weigh?
The unladen weight is 20,275 kg.
What is the gross vehicle weight of the Iveco Stralis 560?
27,000 kg.
What engine does the Iveco Stralis 560 have?
6 cylinders, 12,882 cm³ displacement.
How fast does the Iveco Stralis 560 go?
Top speed is 90 km/h.
What are the dimensions of the Iveco Stralis 560?
9,410 mm × 2,550 mm.
When was the Iveco Stralis 560 built?
Production years: 2011-2018.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 13 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
