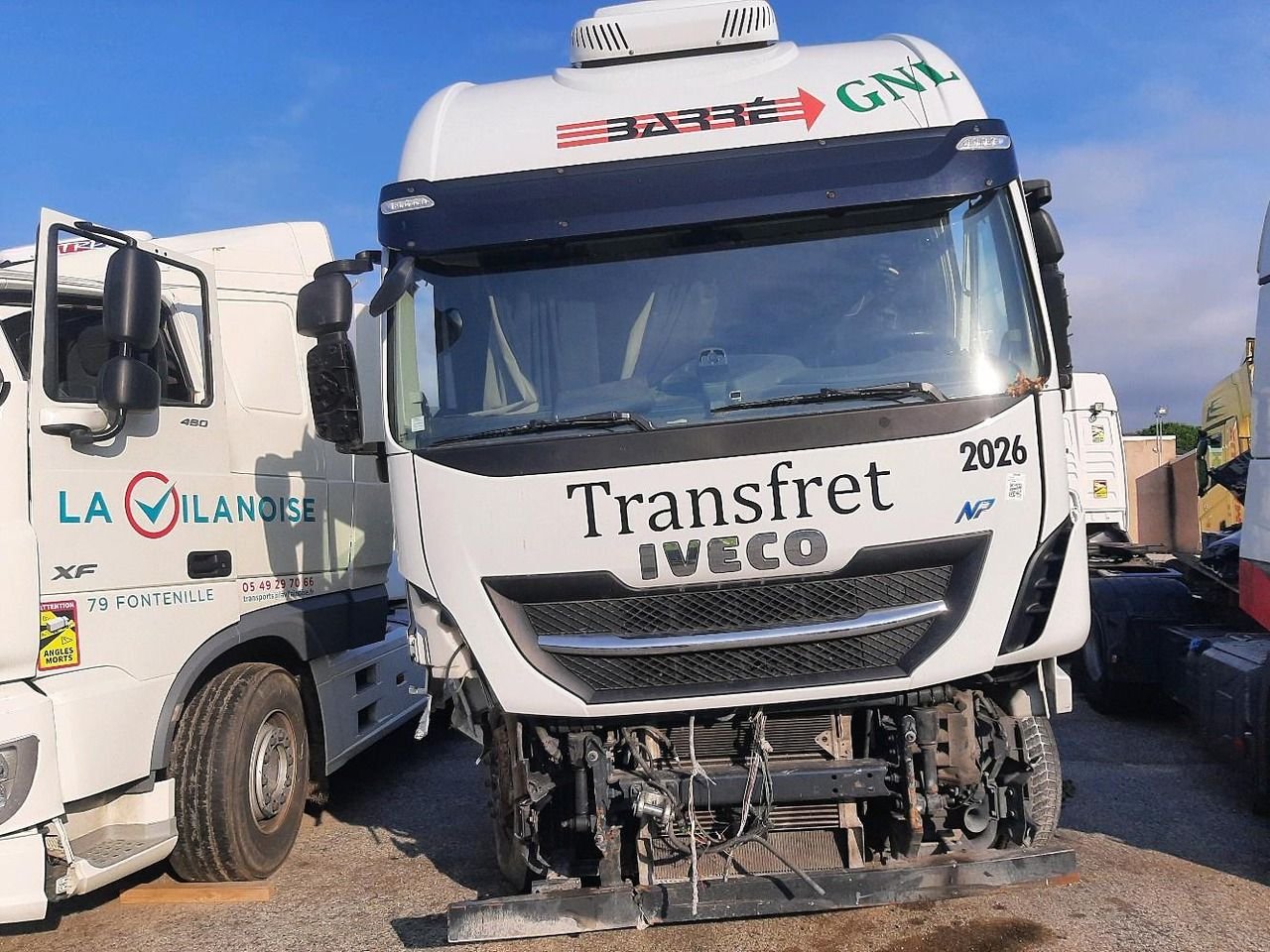

Iveco AT340T45-502
Built: 2012 · Series: Trucks over 12 t (Class N3)
More machines from model year 2012
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Iveco trucks over 12 tonnes (class N3) – collective registration-data page for the EuroTech, EuroStar, Stralis and S-Way: 608 records, 130 to 419 kW, gross weights up to 50 tonnes
This page collects registration records for Iveco trucks in the EU class N3 – trucks with a gross weight above 12 tonnes. The model list includes older type designations in the classic Fiat/Iveco pattern such as '190-36' or '180-25', where the first number gives the weight class in tonnes and the second the output in tens of horsepower, alongside more modern series such as the EuroTech and EuroStar (1990s/2000s) and the Stralis and S-Way as current long-haul flagships.
Read on 3 more paragraphs
The register lists 608 versions with outputs of 130 to 419 kW, displacements of 3,920 to 17,200 cm³ across 4 to 8 cylinders, unladen weights of 4,660 to 34,300 kg, gross weights of 12,100 to 50,000 kg and lengths of 5,350 to 13,215 mm at 1,740 to 2,800 mm width.
As a collective class, the Iveco N3 page spans everything from medium-heavy construction vehicles to heavy articulated tractor units; Iveco, formed in 1975 from the merger of Fiat, OM, Lancia Veicoli Industriali and Unic, competes in this segment with MAN, DAF, Volvo and Scania.
Given the register's origin in registration data, the model name, model year and technical values of individual entries are worth cross-checking against the vehicle identification number before a purchase decision; when buying used, as with any heavy Iveco, what counts is frame corrosion, the clutch and automated gearbox, turbocharger and EGR valve, and a documented service history.
Sources: SpecCodex register, model data: Iveco Lkw Klasse N3, Iveco (manufacturer)
Technical data
Engine
| Power | 332 kWcorrect |
|---|---|
| Cylinders | 6correct |
| Displacement | 12,882 cm³correct |
Dimensions and weights
| Length | 10,950 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Unladen weight | 22,500 kgcorrect |
| Gross vehicle weight | 35,000 kgcorrect |
Where this model stands
Power-to-weight ratio: 14.8 kW/t (332 kW / 22.5 t)
Stronger than 68% of the trucks in the register — out of 25,242 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Iveco AT340T45-502 have?
The Iveco AT340T45-502 delivers 332 kW.
How much does the Iveco AT340T45-502 weigh?
The unladen weight is 22,500 kg.
What is the gross vehicle weight of the Iveco AT340T45-502?
35,000 kg.
What engine does the Iveco AT340T45-502 have?
6 cylinders, 12,882 cm³ displacement.
What are the dimensions of the Iveco AT340T45-502?
10,950 mm × 2,550 mm.
When was the Iveco AT340T45-502 built?
Production years: 2012.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
