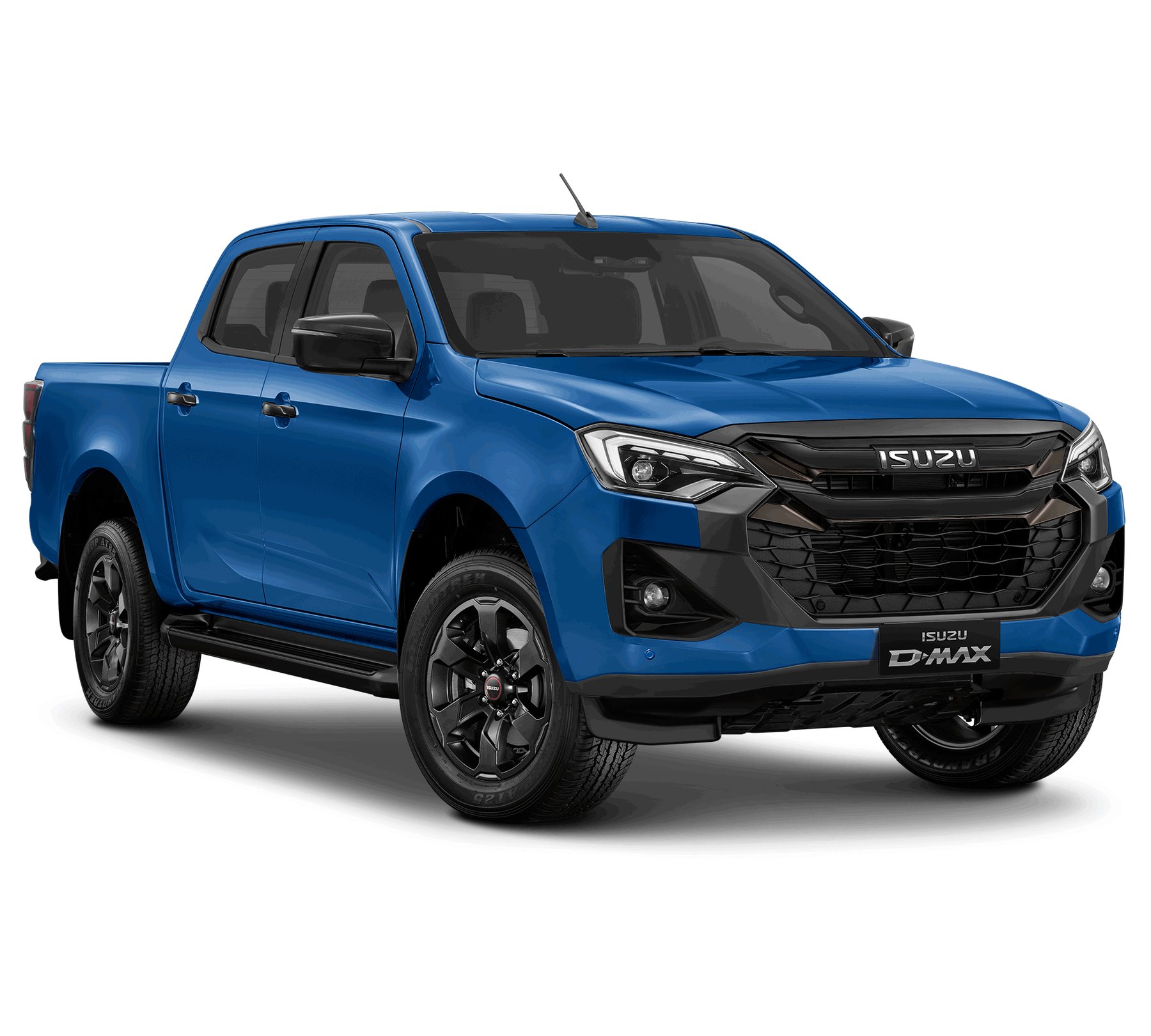

Isuzu D-Max Double Cab 3500 – specifications
Built: 2014 · Series: D-MAX
The D-MAX series from Isuzu includes the D-Max Double Cab 3500. Production: 2014. The engine delivers 120 kW, has 4 cylinders, with a displacement of 2,499 cm³. The vehicle is 5,295 mm long and 1,860 mm wide. The unladen weight is 2,062 kg. The gross vehicle weight is 3,000 kg. The gearbox offers 6 gears. The D-MAX series covers 18 models. Rated output within it ranges from 100 to 120 kW; the D-Max Double Cab 3500 sits at the top of that range with 120 kW. Its immediate neighbours are the D-MAX 2,5 MAN CREW below it with 100 kW. Unladen weight within it ranges from 1,870 to 2,733 kg; here the D-Max Double Cab 3500 sits in the lower part of that range with 2,062 kg. 359 Isuzu models across 34 series are on record.
Data for the version built 2014 · Data origin: Official register · sources
More machines from model year 2014
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Isuzu D-Max – the pick-up built in Thailand since 2002: four-cylinder diesels from 1.9 to 3.0 litres, 100 to 120 kW, single, extended and double cab up to 3.5 tonnes
This page gathers versions of the Isuzu D-Max, the pick-up built since 2002, produced mainly at Isuzu's Samrong plant in Thailand. The model list in the register shows the three body variants: the single cab, the extended Space Cab with extra storage behind the front seats, and the double cab (Double or Crew Cab) with a full second row of seats; the four-cylinder diesel engines range from the newer, smaller 1.9-litre unit to the 3.0-litre engine in the more powerful versions.
Read on 3 more paragraphs
The register lists 18 versions here, all with four-cylinder engines of 1,898 to 2,999 cc displacement, unladen weights from 1,860 to 2,733 kg, gross weights from 2,950 to 3,500 kg, lengths from 5,035 to 5,580 mm and widths from 1,800 to 1,930 mm; for part of the models, outputs of 100 to 120 kW.
The D-Max competes in the pick-up segment with the Toyota Hilux, Ford Ranger and Mitsubishi L200 and is sought after for its high payload and rugged engineering among trades businesses, in agriculture, and as a base for camper bodies and expedition conversions.
On a used example, rust on the frame and wheel arches, the condition of the turbocharger and injectors on the common-rail diesels, the transfer case and clutch of the four-wheel-drive system, and the load bed and tow hitch after towing use all count; parts run through the Isuzu dealer network.
Sources: SpecCodex register, model data: Isuzu D-Max (Transporter), Isuzu (manufacturer)
Technical data
Engine
| Power | 120 kWcorrect |
|---|---|
| Cylinders | 4correct |
| Displacement | 2,499 cm³correct |
Dimensions and weights
| Length | 5,295 mmcorrect |
|---|---|
| Width | 1,860 mmcorrect |
| Unladen weight | 2,062 kgcorrect |
| Gross vehicle weight | 3,000 kgcorrect |
Drivetrain and chassis
| Gears | 6correct |
|---|
Frequently asked questions
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 9 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Are you the manufacturer or a dealer of this machine? Check the data and add missing figures — we mark your correction as manufacturer or dealer information.
Check and complete the data →Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
