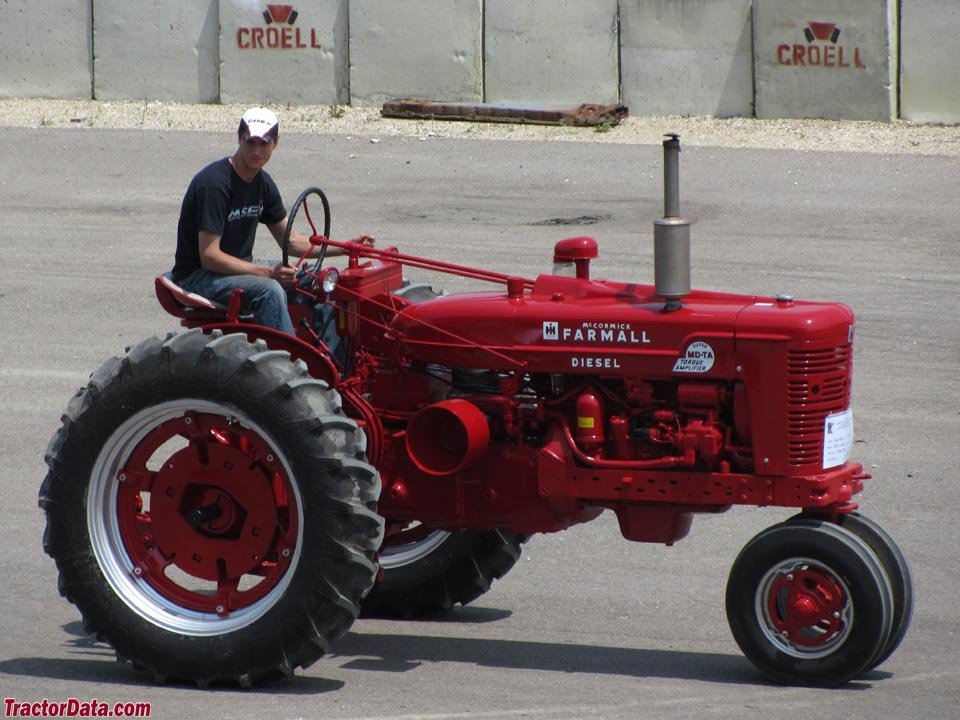

International Harvester SUPER-MD/MDV
Built: 1952–1954 · Series: FARMALL-SUPER-Baureihe
More machines from model year 1952
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
International Harvester Farmall Super (1951–1954) – the strengthened letter tractors: Super A, Super C, Super H and Super M, D for diesel, V for the high-clearance version, TA for the Torque Amplifier, distillate
The Super models were International Harvester's answer to post-war competition: from 1951 the Farmall letter tractors A, C, H and M, which had led the American market since 1939, received more displacement and power, hydraulics and the suffix Super. The type logic: the letter orders the size – A the small single-row tractor with offset driver's seat (Culti-Vision), C the two-row, H the medium and M the large row-crop tractor – D marks the diesel (Super MD), V the high-clearance version for sugar cane and vegetables (AV, HV, MV) and TA the Torque Amplifier, the powershift step introduced in 1954 that raised pulling power under load without the driver having to declutch. The fuels reflect the time: most models ran on distillate or kerosene and were started on petrol, the MD models on diesel started on petrol – IH's own solution in which the engine started as a petrol engine and switched to diesel.
Read on 3 more paragraphs
The register lists 9 versions with 14 to 34.6 kW from four-cylinders of 1,853 to 4,324 cm³ at rated speeds of 1,400 to 1,650 rpm, torque from 157 to 495 Nm, unladen weights from 1,082 to 2,488 kg, lengths from 2,715 to 3,683 mm and widths from 1,419 to 2,134 mm.
The Super range was the peak of the letter tractors before the 100 series with numbers followed in 1954; the Super M-TA is regarded as the most important post-war Farmall because it brought the powershift principle into farm machinery.
Used Super models are collector and vintage tractors: originality, engine condition, carburettor and changeover mechanism, hydraulics, the Torque Amplifier and sheet metal count; parts are widely available in North America.
Sources: SpecCodex register, model data: International Harvester Farmall Super, Farmall (Wikipedia)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 47 hp (34.6 kW)correct |
| Rated speed | 1,450 rpmcorrect |
| Torque | 475 Nmcorrect |
| Speed at max. torque | 1,080 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,324 cm³correct |
| Bore | 101.6 mmcorrect |
| Stroke | 133.35 mmcorrect |
| Compression ratio | 16.5correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,458 mmcorrect |
|---|---|
| Width | 2,134 mmcorrect |
| Height | 2,007 mmcorrect |
| Wheelbase | 2,305 mmcorrect |
| Ground clearance | 580 mmcorrect |
| Unladen weight | 2,488 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 5 V/1 Rcorrect |
| Front tyres | 6.00 x 16 (MDV: 6.00 x 20)correct |
| Rear tyres | 12 x 38 (MDV: 12.00 x 36)correct |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | semi-frame constructioncorrect |
|---|---|
| Units built | 5.199 (MDV: 89)correct |
Where this model stands
Power-to-weight ratio: 13.9 kW/t (35 kW / 2.5 t)
Power class: Universal (40–100 hp)
Stronger than 31% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the International Harvester SUPER-MD/MDV have?
The International Harvester SUPER-MD/MDV delivers 47 hp.
How much does the International Harvester SUPER-MD/MDV weigh?
The unladen weight is 2,488 kg.
What engine does the International Harvester SUPER-MD/MDV have?
4 cylinders, 4,324 cm³ displacement, Diesel.
How fast does the International Harvester SUPER-MD/MDV go?
Top speed is 30 km/h.
What are the dimensions of the International Harvester SUPER-MD/MDV?
3,458 mm × 2,134 mm × 2,007 mm.
When was the International Harvester SUPER-MD/MDV built?
Production years: 1952–1954.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
