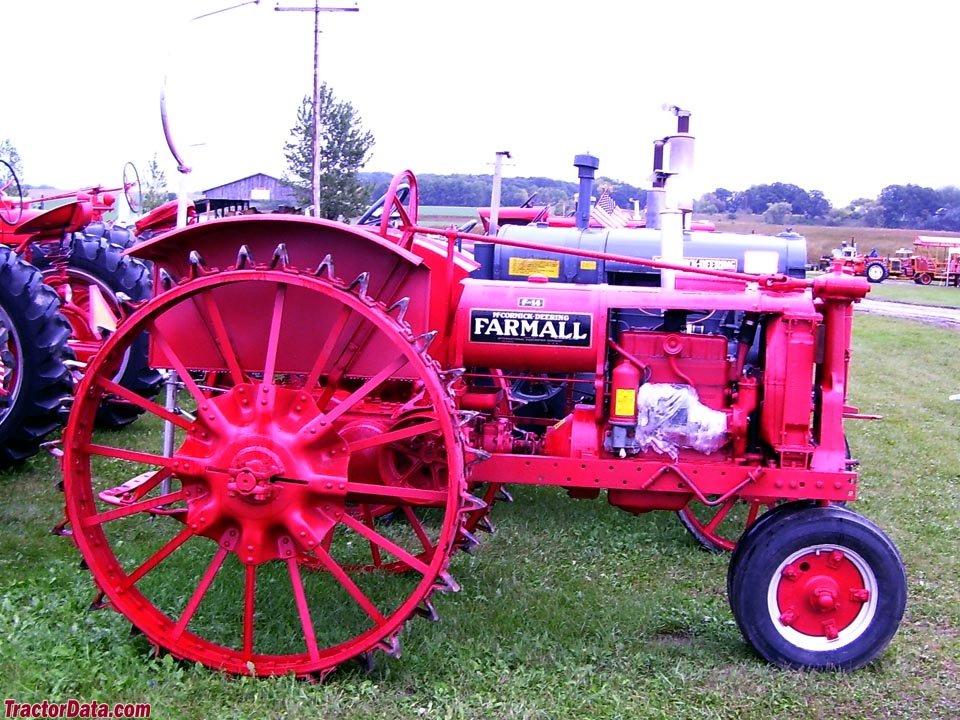

International Harvester F-14
Built: 1938–1939 · Series: FARMALL-SERIE
More machines from model year 1938
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
International Harvester Farmall – from the 1924 'Regular' to the hundreds series: the row-crop tractor and its types
With the Farmall 'Regular' of 1924, International Harvester introduced the row-crop tractor: high ground clearance, closely spaced front wheels and the ability to carry implements between the axles made the tractor for the first time a universal machine for root crops and maize. The name Farmall – to 'farm all' – became North America's best-known tractor brand and was later continued by Case IH.
Read on 3 more paragraphs
The type logic changed over the decades: the early F-12, F-14 and F-20 of the 1930s carried letter-number codes, the post-war models letters (A, B, C, H, M), and from 1958 came the hundreds series – 140, 240, 340, 460, 560 – with a rising number for rising output; the '06' models such as the 656, 706, 756 and the big 1206 of the 1960s formed the last classic Farmall generation. In the register the models run from 10.2 to 83.8 kW, from 1,088 to 5,913 cm³ with two to six cylinders and from 900 to 4,588 kg unladen; top speed lies between 6 and 30 km/h.
Production periods in the register begin in 1924 and end in the early 1970s, when International Harvester retired the Farmall name in favour of IH designations.
Historic Farmalls are the collector tractors par excellence in the USA, with excellent parts supply. In Europe they are rarer; when buying, originality, engine condition and – on the early models – the function of the PTO and the mechanical lift gear are what count.
Sources: SpecCodex register, model data: International Harvester Farmall, Farmall (Wikipedia)
Technical data
Engine
| Fuel | Kerosin/Benzincorrect |
|---|---|
| Power | 17 hp (12.5 kW)correct |
| Rated speed | 1,650 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 1,853 cm³correct |
| Bore | 76.2 mmcorrect |
| Stroke | 101.6 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,188 mmcorrect |
|---|---|
| Width | 1,886 mmcorrect |
| Height | 1,753 mmcorrect |
| Wheelbase | 1,956 mmcorrect |
| Unladen weight | 1,270 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 3 V/1 Rcorrect |
| Front tyres | 5.00 x 15correct |
| Rear tyres | 9.00 x 40correct |
| Top speed | 6.5 km/hcorrect |
Origin and approval
| Construction | frame constructioncorrect |
|---|---|
| Units built | 27,401correct |
Where this model stands
Power-to-weight ratio: 9.8 kW/t (12 kW / 1.3 t)
Power class: Compact (< 40 hp)
Stronger than 5% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the International Harvester F-14 have?
The International Harvester F-14 delivers 17 hp.
How much does the International Harvester F-14 weigh?
The unladen weight is 1,270 kg.
What engine does the International Harvester F-14 have?
4 cylinders, 1,853 cm³ displacement, Kerosin/Benzin.
How fast does the International Harvester F-14 go?
Top speed is 6.5 km/h.
What are the dimensions of the International Harvester F-14?
3,188 mm × 1,886 mm × 1,753 mm.
When was the International Harvester F-14 built?
Production years: 1938–1939.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 21 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
