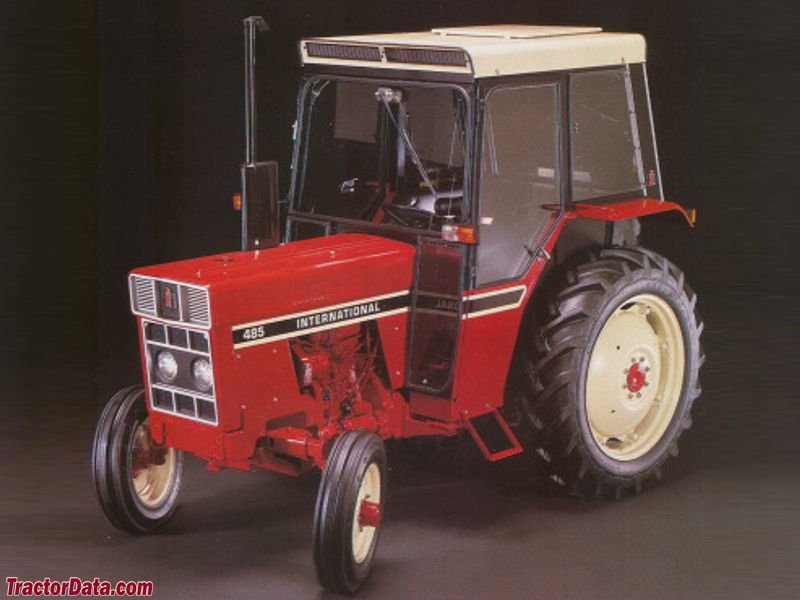

International Harvester 485 – specifications
Built: 1981–1990 · Series: 85 er-Baureihe
The 85er series from International Harvester includes the 485. Production: 1981–1990. The engine delivers 52 hp (38.2 kW), has 3 cylinders, with a displacement of 2,934 cm³. Torque is 177 Nm. Rated speed is 2,180 rpm. The machine is 3,590 mm long, 1,850 mm wide and 2,510 mm high. The unladen weight is 2,550 kg. The wheelbase measures 2,150 mm. Ground clearance is 480 mm. Top speed is 25 km/h. Transmission: 8 V/4 R or 16 V/8 R. The engine is water-cooled. Tyres: front 7.50-16, rear 12.4-36. The fuel is diesel. The bore measures 98.43 mm. The stroke is 128.59 mm. The compression ratio is 16:1. Maximum torque is reached at 1,600 rpm. Construction: unit construction (no separate frame). The 85 er-Baureihe series covers 6 models. Rated output within it ranges from 45 to 80 hp; the 485 sits in the lower part of that range with 52 hp. Its immediate neighbours are the 385 below it with 45 hp and the 585 above it with 59 hp. Unladen weight within it ranges from 2,235 to 3,340 kg; here the 485 sits in the lower part of that range with 2,550 kg. 391 International Harvester models across 45 series are on record.
Data for the version built 1981–1990 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 1981
International Harvester 85 Series (385 to 885) - utility tractors with an ascending power class: three- and four-cylinder engines of 2.5 to 4.4 litres, 33 to 59 kW, the A suffix for the upgraded second series
The 85 series was International Harvester's range of light and medium utility tractors, from the smallest, the 385, to the largest, the 885. The type logic is straightforward: the first digit orders the ascending power class, the fixed 85 suffix marks the shared series generation, and the A suffix on the 785 and 885 denotes the second series, upgraded in power and equipment. The smaller models ran three-cylinder engines, the larger ones four-cylinder units from IH's own engine production.
Read on 3 more paragraphs
The register lists 6 versions with 33.1 to 58.8 kW from three- and four-cylinder engines of 2,536 to 4,398 cm³, torque of 150 to 272 Nm at 2,180 to 2,400 rpm, kerb weights of 2,235 to 3,340 kg, lengths of 3,550 to 3,740 mm, widths of 1,850 to 1,920 mm and heights of 1,540 to 2,640 mm; every model runs on diesel.
As utility tractors, the 85 series covered the bulk of mixed farms that needed neither the size of a standard tractor nor the narrowness of a specialist one - grassland, mid-class arable work and transport duties. It competed directly with the equivalent ranges from Ford, Massey Ferguson and Deutz-Fahr.
On a used example of these IH diesels, check the injection pump and compression, the clutch and power-shift stages (on the A models), front-axle bearings, the hydraulic pump and brakes, and corrosion on the wings and bonnet; engine and driveline parts are available through IH specialists and the independent parts trade.
Sources: SpecCodex register, model data: International Harvester 85er-Baureihe
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 52 hp (38.2 kW)correct |
| Rated speed | 2,180 rpmcorrect |
| Torque | 177 Nmcorrect |
| Speed at max. torque | 1,600 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,934 cm³correct |
| Bore | 98.43 mmcorrect |
| Stroke | 128.59 mmcorrect |
| Compression ratio | 16correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,590 mmcorrect |
|---|---|
| Width | 1,850 mmcorrect |
| Height | 2,510 mmcorrect |
| Wheelbase | 2,150 mmcorrect |
| Ground clearance | 480 mmcorrect |
| Unladen weight | 2,550 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 8 V/4 R or 16 V/8 Rcorrect |
| Front tyres | 7.50-16correct |
| Rear tyres | 12.4-36correct |
| Top speed | 25 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Frequently asked questions
Where this model stands
Power-to-weight ratio: 15 kW/t (38 kW / 2.5 t)
Power class: Universal (40–100 hp)
Stronger than 36% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
