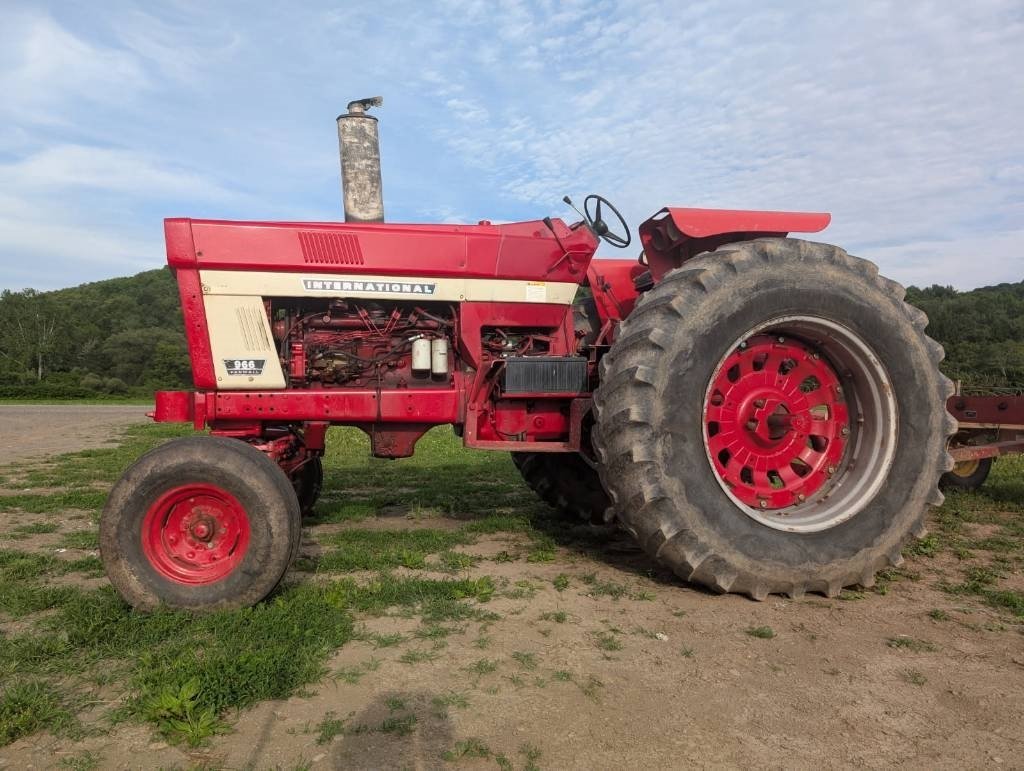

International Harvester 966 – specifications
Built: 1971–1974 · Series: 66 er-Serie
The 966 from International Harvester is part of the 66er series. Production: 1971–1974. The engine delivers 97 hp (71.3 kW), has 6 cylinders, with a displacement of 6,782 cm³. Torque is 414 Nm. The machine is 4,191 mm long, 2,489 mm wide and 2,667 mm high. The unladen weight is 5,273 kg. The wheelbase measures 2,662 mm. Ground clearance is 356 mm. Top speed is 30 km/h. Transmission: 8 V/4 R, 16 V/8 R and continuously variable. The engine is water-cooled. Tyres: front 9.5 L-15, rear 16.9-38. The fuel is diesel. The bore measures 109.22 mm. The stroke is 120.65 mm. The compression ratio is 16:1. Maximum torque is reached at 1,350 rpm. Construction: semi-frame construction. Around 21.017 units were built. The 66 er-Serie series covers 19 models. Rated output within it ranges from 67 to 165 hp; the 966 sits in the lower part of that range with 97 hp. Its immediate neighbours are the 766 below it with 80 hp and the FARMALL-1066 above it with 117 hp. Unladen weight within it ranges from 3,719 to 9,838 kg; here the 966 sits in the lower part of that range with 5,273 kg. 391 International Harvester models across 45 series are on record.
Data for the version built 1971–1974 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 1971
International Harvester 66 series – the last Farmall tractors, 1971–1976: 666 to 1568, V8 diesels, Hydro 70/100, the articulated 4366
The 66 series was International Harvester's large-tractor programme of the early 1970s and the last range to carry the Farmall name – the register lists many models under both spellings. It replaced the 56 series in 1971 and brought the new cab, the Torque Amplifier powershift in improved form and the six-cylinder diesels D-360, D-414 and DT-436 from Melrose Park; in 1974 the upgrade followed with the 1568 and 1468, which carried a V8 diesel of 8,992 cm³ – the only production V8s in IH's tractor programme.
Read on 3 more paragraphs
The type number rises with output: 666 and 766 the mid-range, 966 and 1066 the 100 hp class, 1466 and 1566 the top models with turbo, 1468 and 1568 the V8 versions. Hydro 70 and Hydro 100 are the hydrostatic variants without a gearbox, ideal for loaders and specialty crops; the 4366 is an articulated four-wheel-drive tractor that IH had built by Steiger in Fargo from 1973. In the register the models run from 49.3 to 121.4 kW, 5,113 to 8,992 cm³ with six or eight cylinders, unladen weights from 3,719 to 9,838 kg, lengths from 4,089 to 6,121 mm and heights from 1,956 to 3,251 mm.
The 1066 with the DT-414 turbo diesel became IH's best-selling large tractor with over 50,000 units and is regarded in the USA as an icon of the red camp; the 66s were also the generation with which IH peaked shortly before the crisis of the 1980s.
Used 66s are common in North America and rare in Europe. When buying, the condition of engine and turbocharger, the Torque Amplifier (the clutch pack is the classic weak point), the hydraulics and, on Hydro models, the hydrostatic drive count.
Sources: SpecCodex register, model data: International Harvester 66er-Serie, International Harvester (Wikipedia)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 97 hp (71.3 kW)correct |
| Rated speed | 2.400/2.600 rpmcorrect |
| Torque | 414 Nmcorrect |
| Speed at max. torque | 1,350 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,782 cm³correct |
| Bore | 109.22 mmcorrect |
| Stroke | 120.65 mmcorrect |
| Compression ratio | 16correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,191 mmcorrect |
|---|---|
| Width | 2,489 mmcorrect |
| Height | 2,667 mmcorrect |
| Wheelbase | 2,662 mmcorrect |
| Ground clearance | 356 mmcorrect |
| Unladen weight | 5,273 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 8 V/4 R, 16 V/8 R and continuously variablecorrect |
| Front tyres | 9.5 L-15correct |
| Rear tyres | 16.9-38correct |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | semi-frame constructioncorrect |
|---|---|
| Units built | 21,017correct |
Frequently asked questions
Where this model stands
Power-to-weight ratio: 13.5 kW/t (71 kW / 5.3 t)
Power class: Universal (40–100 hp)
Stronger than 65% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
