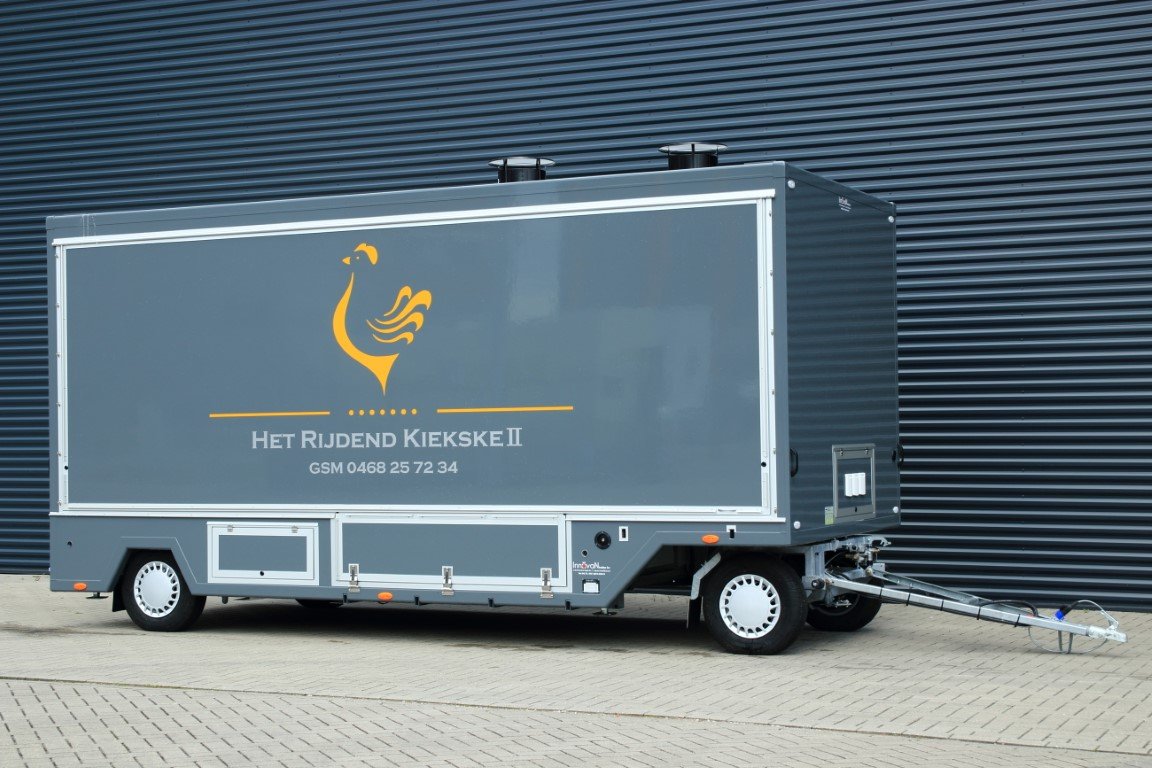

Innovan Trailers VKW-D2-8000
Built: 2010 · Series: Other models
More machines from model year 2010
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Innovan Trailers – other models: the collective page of trailers outside the named ranges, unladen weights from 840 to 6,790 kg, gross weights from 1,250 to 10,900 kg, lengths from 5,200 to 11,210 mm
This page gathers the Innovan Trailers models the register could not assign to a named range. The model list is dominated by the code VKW with the suffixes D2, E and T, plus VWZ and OPLZ, each followed by a weight figure in kilograms. One of the designations reads Kuiper Wagenbouw, Dutch for wagon building. Further entries such as D2-3500, DS10900 and KD1002 link a code directly to a weight figure in kilograms.
Read on 3 more paragraphs
The register lists here 52 versions with unladen weights from 840 to 6,790 kg and gross weights from 1,250 to 10,900 kg. Lengths lie between 5,200 and 11,210 mm, widths between 1,520 and 2,550 mm.
The span from just under 1.3 to almost 11 tonnes gross weight covers both smaller single- and tandem-axle trailers and larger versions for commercial haulage. Trailers of this size are used for building materials, machinery and general cargo as well as for carrying vehicles. The width span from 1,520 to 2,550 mm shows that both narrower versions for a car tow vehicle and wider commercial versions are part of the range.
On a used example, the condition of frame and drawbar, corrosion on axles and welded fittings, the function of the overrun brake and the braking system as a whole, the condition of the load-bed boards, and tyres and wheel bearings all matter. On the heavier versions with a tandem or double axle, it is also worth checking the axle suspension for wear.
Sources: SpecCodex register, model data: Innovan Trailers (weitere Modelle)
Technical data
Dimensions and weights
| Length | 10,250 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 5,500 mmcorrect |
| Unladen weight | 5,190 kgcorrect |
| Gross vehicle weight | 8,500 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Innovan Trailers VKW-D2-8000 weigh?
The unladen weight is 5,190 kg.
What is the gross vehicle weight of the Innovan Trailers VKW-D2-8000?
8,500 kg.
Up to what speed is the Innovan Trailers VKW-D2-8000 approved?
Approved up to 100 km/h.
What are the dimensions of the Innovan Trailers VKW-D2-8000?
10,250 mm × 2,550 mm.
When was the Innovan Trailers VKW-D2-8000 built?
Production years: 2010.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
