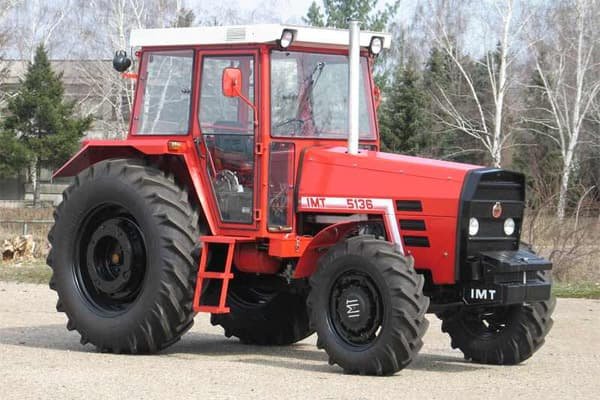

IMT 5130/5136
Built: 1982–1992 · Series: Other models
More machines from model year 1982
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
IMT – other models: tractors from Zemun outside the named ranges, from IMT 533 to 577 and 2050 to 5500, 13 to 385 kW, IMR, Perkins, Mercedes-Benz and Deutz engines
This collective page gathers IMT (Industrija Mašina i Traktora) tractors that the register could not assign to a named range – from the three-digit classics of the 1970s to 1990s such as the IMT 533, 539, 549, 558, 560, 565 and 577 to the newer four-digit ranges 2050 to 2210 and 5100 to 5500. IMT built its tractors in Zemun near Belgrade, Serbia, and used mainly engines from the neighbouring Industrija Motora Rakovica (IMR) plant, alongside Perkins, Mercedes-Benz, Famos, Simpson and Deutz engines. The De luxe suffix denotes the better-equipped version of a base model in each case.
Read on 3 more paragraphs
The register lists 82 versions here with 13 to 385.4 kW from three- to six-cylinder engines of 2,365 to 11,045 cm³, unladen weights of 1,440 to 11,790 kg, lengths of 2,972 to 7,010 mm, widths of 1,625 to 3,570 mm, torque of 130 to 890 Nm and rated speeds of 2,000 to 2,300 rpm.
IMT was Yugoslavia's most important tractor maker and supplied farming across the Balkans as well as export markets in Eastern Europe, the Middle East and Africa for decades. After Yugoslavia's break-up and subsequent economic crises, the brand remained a byword for robust, easily maintained tractors with long parts compatibility across many model years.
When buying used, the older ranges call for checking the condition of the IMR engine and injection pump, rust on wings and cab, the state of the hydraulics and power take-off, and cooling-system tightness; the newer 5000 and 2000 series additionally need gearbox and rear-axle seals checked, along with the availability of licensed Perkins or Deutz parts, since genuine IMR parts have become harder to source.
Sources: SpecCodex register, model data: IMT (weitere Modelle)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 135 hp (99.3 kW)correct |
| Rated speed | 2,250 rpmcorrect |
| Torque | 412 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 5,795 cm³correct |
| Bore | 98.48 mmcorrect |
| Stroke | 127 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,521 mmcorrect |
|---|---|
| Width | 2,100 mmcorrect |
| Height | 2,820 mmcorrect |
| Wheelbase | 2,750 mmcorrect |
| Ground clearance | 460 mmcorrect |
| Unladen weight | 5,315 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 10 V/2 R or 12 V/4 Rcorrect |
| Front tyres | 11.00-16 ASF (5136: 12.4-24 AS)correct |
| Rear tyres | 18.4-38 AScorrect |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 215 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Other data
| Linkage category | Cat II/IIIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 18.7 kW/t (99 kW / 5.3 t)
Power class: Large (100–180 hp)
Stronger than 79% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the IMT 5130/5136 have?
The IMT 5130/5136 delivers 135 hp.
How much does the IMT 5130/5136 weigh?
The unladen weight is 5,315 kg.
What engine does the IMT 5130/5136 have?
6 cylinders, 5,795 cm³ displacement, Diesel.
How fast does the IMT 5130/5136 go?
Top speed is 30 km/h.
What are the dimensions of the IMT 5130/5136?
4,521 mm × 2,100 mm × 2,820 mm.
When was the IMT 5130/5136 built?
Production years: 1982–1992.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 26 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
