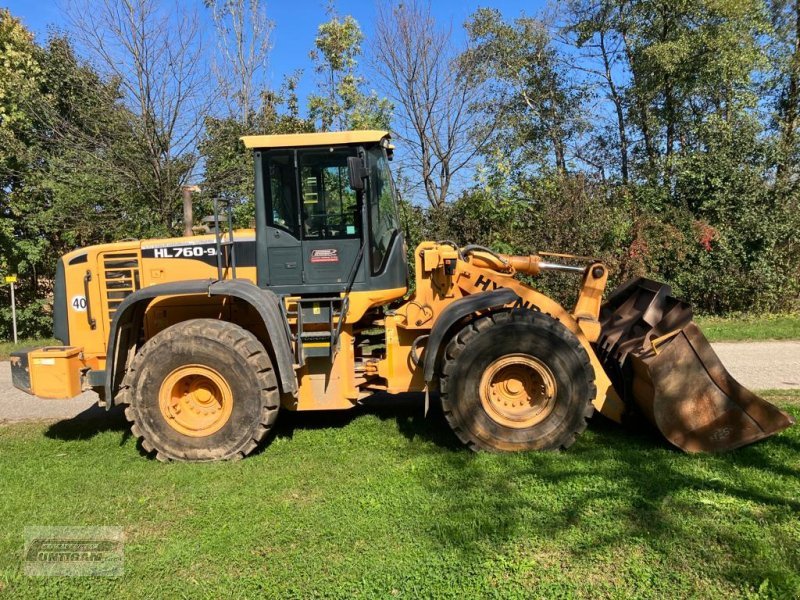

Hyundai HL760XTD-9

Series: Hyundai Wheel Loader

Source: https://www.technikboerse.at/gebraucht/radlader-255

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The HL760XTD-9 from Hyundai is part of the Hyundai Wheel Loader series. The engine delivers 218 hp (158.1 kW), has 6 cylinders. Torque is 949.1 Nm. Rated speed is 2,100 rpm. The unladen weight is 18,700 kg. The wheelbase measures 3,301 mm. Ground clearance is 420.6 mm. The tank holds 334.3 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,500 rpm. The pump delivers 233.2 l/min. The hydraulic tank holds 252.1 litres. The cooling system holds 39.4 litres. The electrical system runs on 24 V. The engine fitted is the QSB6,7. Tyre size: 23,5-25. The Hyundai Wheel Loader series covers 36 models. Rated output within it ranges from 126.7 to 352.8 hp; the HL760XTD-9 sits in the middle of that range with 218 hp. Its immediate neighbours are the HL757-9A below it with 202.8 hp and the HL760-9A above it with 228.4 hp. 391 Hyundai models across 22 series are on record. The model is listed under Wheel loaders. 21 verified figures from 1 source are on file.

Technical data

Engine

Engine modelQSB6.7correct
Power218 hp (158.1 kW)correct
Rated speed2,100 rpmcorrect
Torque949.1correct
Speed at max. torque1,500 rpmcorrect
Cylinders6correct
Aspirationturbochargedcorrect
Coolant capacity39.4 lcorrect

Dimensions and weights

Wheelbase3,301correct
Ground clearance420.6correct
Unladen weight18,700 kgcorrect

Drivetrain and chassis

Gearbox typepowershift transmissioncorrect
Forward gears4correct
Reverse gears3correct
Tyre size23.5-25correct
System voltage24 Vcorrect

Working data

Pump flow233.2 l/mincorrect
Hydraulic oil capacity252.1 lcorrect
Fuel tank capacity334.3 lcorrect

Other data

Height3,450.3correct

Where this model stands

Power-to-weight ratio: 8.5 kW/t (158 kW / 18.7 t)

Stronger than 77% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Hyundai HL760XTD-9 have?

The Hyundai HL760XTD-9 delivers 218 hp.

How much does the Hyundai HL760XTD-9 weigh?

The unladen weight is 18,700 kg.

What engine does the Hyundai HL760XTD-9 have?

6 cylinders.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
