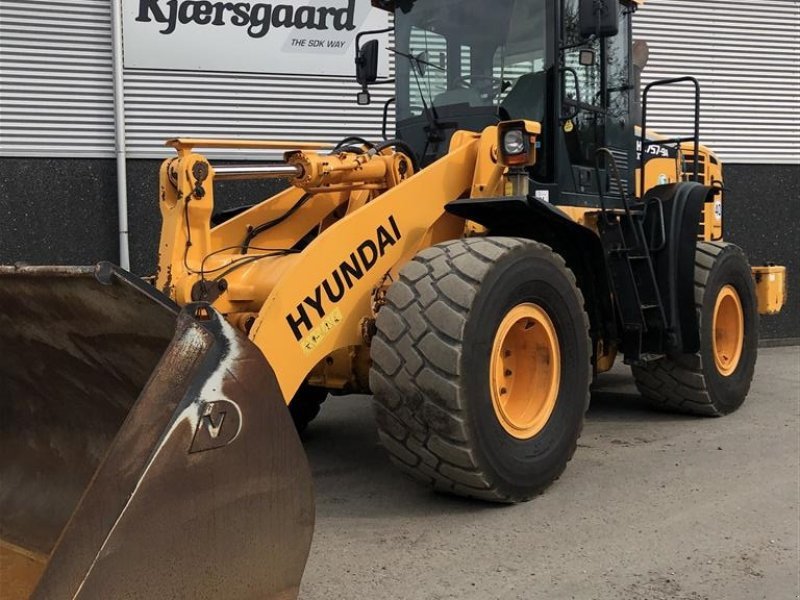

Hyundai HL757-9A

Series: Hyundai Wheel Loader

Source: https://www.technikboerse.com/gebraucht/radlader-255/hyundai

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Hyundai HL757-9A is a model in the Hyundai Wheel Loader series. The engine delivers 202.8 hp (146.9 kW), has 6 cylinders, with a displacement of 6,700.7 cm³. The engine comes from CUMMINS. The unladen weight is 14,700 kg. The wheelbase measures 3,051 mm. Ground clearance is 411.5 mm. The tank holds 294.1 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,400 rpm. The pump delivers 185.1 l/min. The hydraulic tank holds 202.1 litres. Working pressure is 245.1 bar. The cooling system holds 46.2 litres. The electrical system runs on 24 V. The engine fitted is the QSB6,7. Tyre size: 20,5-25. L3. The Hyundai Wheel Loader series covers 36 models. Rated output within it ranges from 126.7 to 352.8 hp; the HL757-9A sits in the lower part of that range with 202.8 hp. Its immediate neighbours are the HL757XTD-9 below it with 175.4 hp and the HL760-7 above it with 218 hp. 391 Hyundai models across 22 series are on record. The model is listed under Wheel loaders. 22 verified figures from 1 source are on file.

Technical data

Engine

Engine makeCUMMINScorrect
Engine modelQSB6.7correct
Power202.8 hp (146.9 kW)correct
Speed at max. torque1,400 rpmcorrect
Cylinders6correct
Displacement6,700.7 cm³correct
Aspirationturbochargedcorrect
Coolant capacity46.2 lcorrect

Dimensions and weights

Wheelbase3,051correct
Ground clearance411.5correct
Unladen weight14,700 kgcorrect

Drivetrain and chassis

Gearbox typeFull automatic gearbox power shiftcorrect
Forward gears4correct
Reverse gears3correct
Tyre size20.5-25, L3correct
System voltage24 Vcorrect

Working data

Pump flow185.1 l/mincorrect
Hydraulic oil capacity202.1 lcorrect
Hydraulic pressure245.1correct
Fuel tank capacity294.1 lcorrect

Other data

Height3,310.1correct

Where this model stands

Power-to-weight ratio: 10 kW/t (147 kW / 14.7 t)

Stronger than 72% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Hyundai HL757-9A have?

The Hyundai HL757-9A delivers 203 hp.

How much does the Hyundai HL757-9A weigh?

The unladen weight is 14,700 kg.

What engine does the Hyundai HL757-9A have?

6 cylinders, 6,701 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
