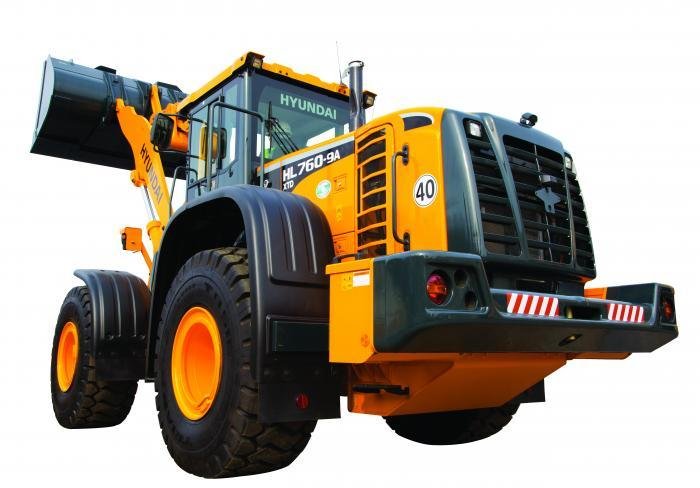

Hyundai HL760-9A

Series: Hyundai Wheel Loader

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the HL760-9A, Hyundai offers a model from the Hyundai Wheel Loader series. The engine delivers 228.4 hp (166.1 kW), has 6 cylinders, with a displacement of 6,700.7 cm³. The engine comes from CUMMINS. Rated speed is 2,100 rpm. The unladen weight is 18,350 kg. The wheelbase measures 3,301 mm. Ground clearance is 420.6 mm. The tank holds 327.1 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. The fuel is diesel. Maximum torque is reached at 1,500 rpm. The pump delivers 233.2 l/min. The hydraulic tank holds 178.3 litres. The cooling system holds 43.2 litres. The electrical system runs on 24 V. The engine fitted is the QSB6,7. Tyre size: 23,5-25. 20 PR. L3. The Hyundai Wheel Loader series covers 36 models. Rated output within it ranges from 126.7 to 352.8 hp; the HL760-9A sits in the middle of that range with 228.4 hp. Its immediate neighbours are the HL760XTD-9 below it with 218 hp and the HL770-7 above it with 283.9 hp. 391 Hyundai models across 22 series are on record. The model is listed under Wheel loaders. 23 verified figures from 1 source are on file.

Technical data

Engine

Engine makeCUMMINScorrect
Engine modelQSB6.7correct
Fueldieselcorrect
Power228.4 hp (166.1 kW)correct
Rated speed2,100 rpmcorrect
Speed at max. torque1,500 rpmcorrect
Cylinders6correct
Displacement6,700.7 cm³correct
Aspirationturbochargedcorrect
Coolant capacity43.2 lcorrect

Dimensions and weights

Wheelbase3,301correct
Ground clearance420.6correct
Unladen weight18,350 kgcorrect

Drivetrain and chassis

Gearbox typeFull automatic gearbox power shifcorrect
Forward gears4correct
Reverse gears3correct
Tyre size23.5-25, 20 PR, L3correct
System voltage24 Vcorrect

Working data

Pump flow233.2 l/mincorrect
Hydraulic oil capacity178.3 lcorrect
Fuel tank capacity327.1 lcorrect

Other data

Height3,450.3correct

Where this model stands

Power-to-weight ratio: 9.1 kW/t (166 kW / 18.4 t)

Stronger than 79% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Hyundai HL760-9A have?

The Hyundai HL760-9A delivers 228 hp.

How much does the Hyundai HL760-9A weigh?

The unladen weight is 18,350 kg.

What engine does the Hyundai HL760-9A have?

6 cylinders, 6,701 cm³ displacement, Diesel.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
