Huttner SATY-34/2H
Built: 2002 · Series: Other models
More machines from model year 2002
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

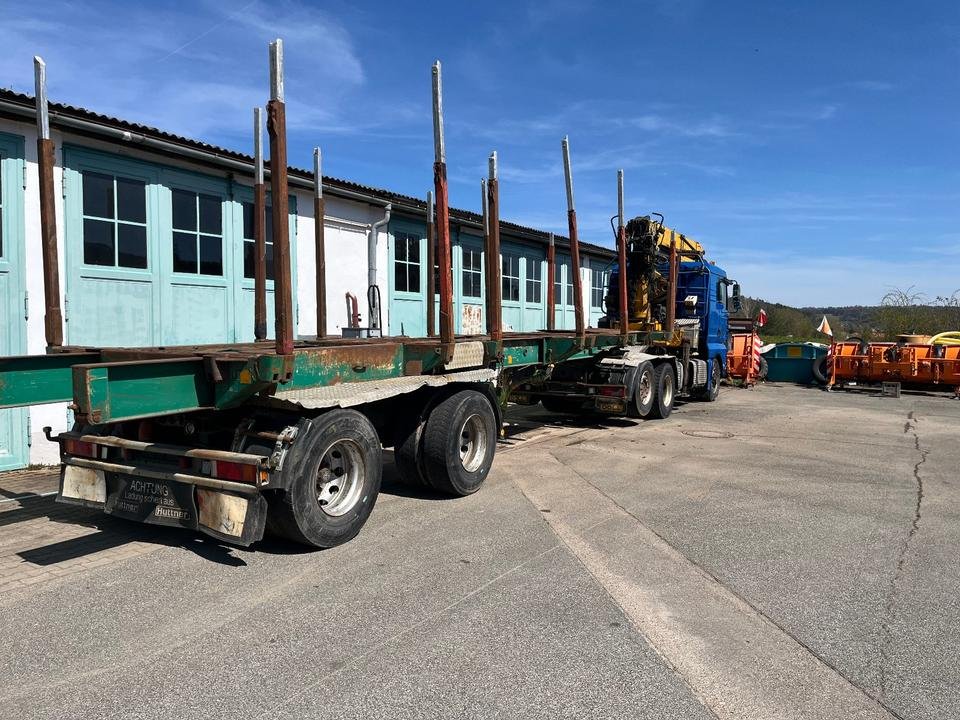

Huttner SATY-34/2H – EU class O4 trailer: 38,000 kg gross vehicle weight, 30,280 kg payload, 11.00 m length, 9.50 m wheelbase, built in 2002.
With a gross weight of 38,000 kg, the Huttner SATY-34/2H falls into EU trailer class O4, the heavy trailers and semi-trailers above 10 tonnes. Vehicles in this class take on loads in commercial goods transport that a single truck can no longer carry economically, running as a trailer behind a separate towing vehicle. They are used in long-distance haulage, construction traffic and the transport of machinery and bulk goods, where payload determines the economics of each run.
Read on 3 more paragraphs
With an unladen weight of 7,720 kg, payload comes to 30,280 kg. At 11.00 m long, 2.54 m wide and with a 9.50 m wheelbase, the trailer sits on a long chassis that carries most of its length between the axles.
From class O3 upwards, trailers of this size are generally fitted with air brakes rather than the simple overrun brake used on light trailers. Towing it as a combination requires driving licence category C1E or CE in the EU, depending on the combined train weight. The air brake system must be checked annually for function and leak-tightness as part of the periodic roadworthiness test.
When buying a used unit, start by checking the frame: cracks or additional weld seams on the main rails are grounds for rejection. Check the brake system for leaks and even action across all axles, listen to the axle bearings for play, check the tyres for even wear, and inspect the drawbar and its coupling eye for wear, cracks and properly executed repairs. Wheel chocks and their holder are part of the basic equipment and should be complete.
Sources: SpecCodex-Register: Kennwerte des Modells Huttner SATY-34/2H, Zulassungsdaten RDW (Niederlande)
Technical data
Dimensions and weights
| Length | 11,000 mmcorrect |
|---|---|
| Width | 2,540 mmcorrect |
| Wheelbase | 9,500 mmcorrect |
| Unladen weight | 7,720 kgcorrect |
| Gross vehicle weight | 38,000 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Huttner SATY-34/2H weigh?
The unladen weight is 7,720 kg.
What is the gross vehicle weight of the Huttner SATY-34/2H?
38,000 kg.
Up to what speed is the Huttner SATY-34/2H approved?
Approved up to 100 km/h.
What are the dimensions of the Huttner SATY-34/2H?
11,000 mm × 2,540 mm.
When was the Huttner SATY-34/2H built?
Production years: 2002.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
