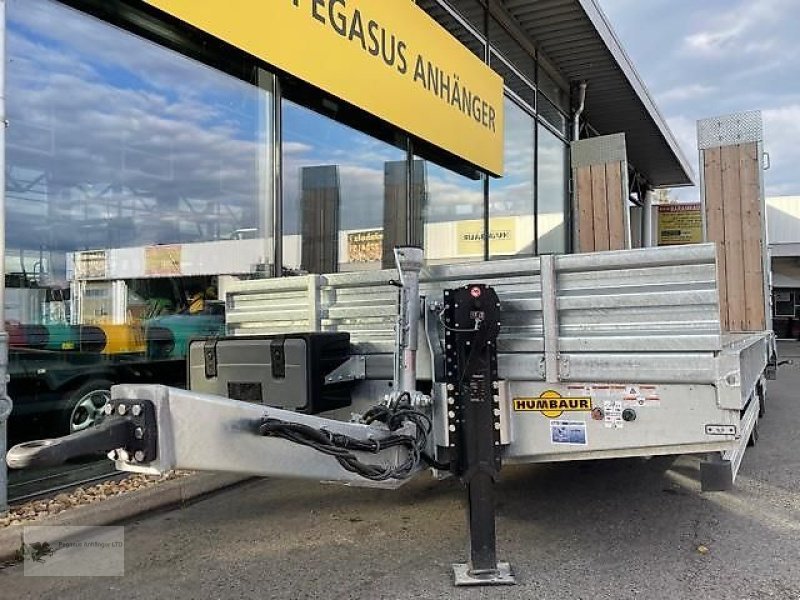

Humbaur HBTZ 217224 BS SCHRAG
Built: 2023-2024 · Series: HBTZ
More machines from model year 2023
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Humbaur HBTZ – heavy tipper trailer range with sloped side board, 3,140 to 4,650 kg unladen weight, 14,000 to 20,000 kg gross weight
The HBTZ range from the Bavarian trailer maker Humbaur of Gessertshausen comprises heavy tipper trailers. The suffix BS Schräg in the type designations marks the sloped side board, which eases tipping and unloading bulk material; the preceding strings of digits code the load area and payload of each version.
Read on 3 more paragraphs
The register lists here 11 versions with unladen weights from 3,140 to 4,650 kg, gross weights from 14,000 to 20,000 kg, lengths from 8,270 to 9,280 mm and widths from 2,470 to 2,550 mm.
With gross weights from 14 to 20 tonnes the HBTZ trailers are built for use behind lorries in earthworks, road building and bulk material haulage; such tipper trailers add extra load capacity to a construction or haulage firm's own lorry fleet. The HBTZ trailers are towed by lorries with a CE driving licence, as is standard in professional freight haulage.
When buying used, what counts is the condition of the body and the sloped side board, the function of the tipping ram and hydraulics, corrosion on the frame and axle mounts, and the condition of the brakes, tyres and lighting; parts for the hydraulics and braking system are supplied through the Humbaur dealer network. The load capacity of the support jack and the condition of the coupling head and safety chain also belong in the pre-purchase check.
Sources: SpecCodex register, model data: Humbaur HBTZ, Humbaur
Technical data
Dimensions and weights
| Length | 9,280 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 7,110 mmcorrect |
| Unladen weight | 4,650 kgcorrect |
| Gross vehicle weight | 20,000 kgcorrect |
Drivetrain and chassis
| Wheels | 8correct |
|---|---|
| Top speed | 100 km/hcorrect |
Frequently asked questions
How much does the Humbaur HBTZ 217224 BS SCHRAG weigh?
The unladen weight is 4,650 kg.
What is the gross vehicle weight of the Humbaur HBTZ 217224 BS SCHRAG?
20,000 kg.
Up to what speed is the Humbaur HBTZ 217224 BS SCHRAG approved?
Approved up to 100 km/h.
What are the dimensions of the Humbaur HBTZ 217224 BS SCHRAG?
9,280 mm × 2,550 mm.
When was the Humbaur HBTZ 217224 BS SCHRAG built?
Production years: 2023-2024.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
