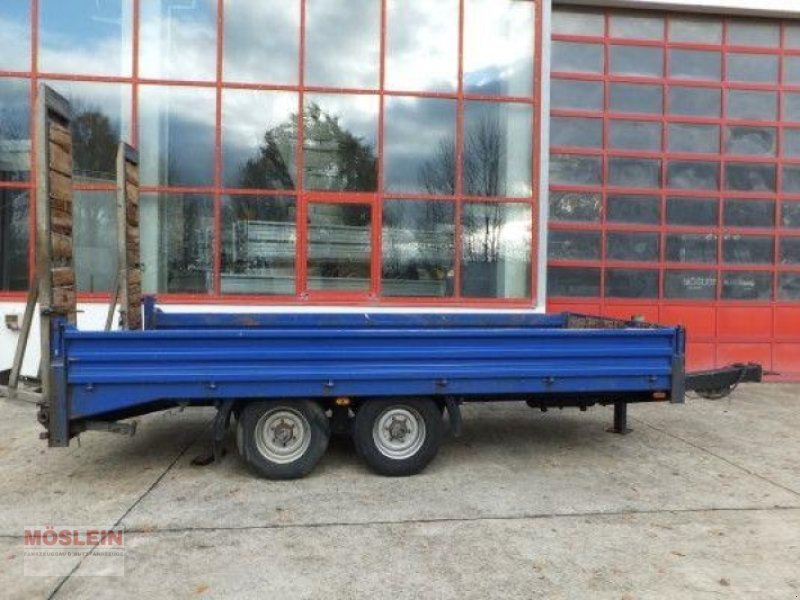

Humbaur HBT 105225 BE
Built: 2019-2020 · Series: HBT
More machines from model year 2019
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Humbaur HBT – light tandem-axle tipper trailer range: 9 versions, unladen weight from 2,060 to 3,210 kg, gross weight from 10,500 to 13,000 kg, lengths up to 9,400 mm
Humbaur, based in Gersthofen near Augsburg, is one of the well-known German manufacturers of car trailers, tippers and transport trailers for construction, agriculture and municipal services. The HBT range brings together a group of trailers with a comparatively low unladen weight relative to the gross weight, typical of tipper trailers built for high payload.
Read on 3 more paragraphs
The register lists here 9 versions with unladen weights from 2,060 to 3,210 kg and a gross weight from 10,500 to 13,000 kg. Lengths range from 7,140 to 9,400 mm, and widths from 2,450 to 2,550 mm.
With a payload of around 7 to 10 tonnes combined with a low kerb weight, the range targets the transport of bulk material, excavated soil or construction rubble, where a high payload share is economically decisive. Such tandem-axle tipper trailers often supplement the own truck fleet of smaller and mid-sized construction and earthmoving firms without the need to buy an additional tipper truck.
When buying a used tipper trailer of this class, check above all the tipping mechanism and hydraulic cylinders, the side boards and their locks, the condition of the load floor, and the axles and braking system; under intensive use with bulk material, wear shows up first on the floor of the load bed. Humbaur supplies spare parts through its dealer network, while general wear parts are also available through the open trailer parts trade.
Sources: SpecCodex register, model data: Humbaur HBT, Humbaur (manufacturer)
Technical data
Dimensions and weights
| Length | 7,140 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 5,040 mmcorrect |
| Unladen weight | 2,500 kgcorrect |
| Gross vehicle weight | 10,500 kgcorrect |
Drivetrain and chassis
| Wheels | 4correct |
|---|---|
| Top speed | 100 km/hcorrect |
Frequently asked questions
How much does the Humbaur HBT 105225 BE weigh?
The unladen weight is 2,500 kg.
What is the gross vehicle weight of the Humbaur HBT 105225 BE?
10,500 kg.
Up to what speed is the Humbaur HBT 105225 BE approved?
Approved up to 100 km/h.
What are the dimensions of the Humbaur HBT 105225 BE?
7,140 mm × 2,550 mm.
When was the Humbaur HBT 105225 BE built?
Production years: 2019-2020.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
