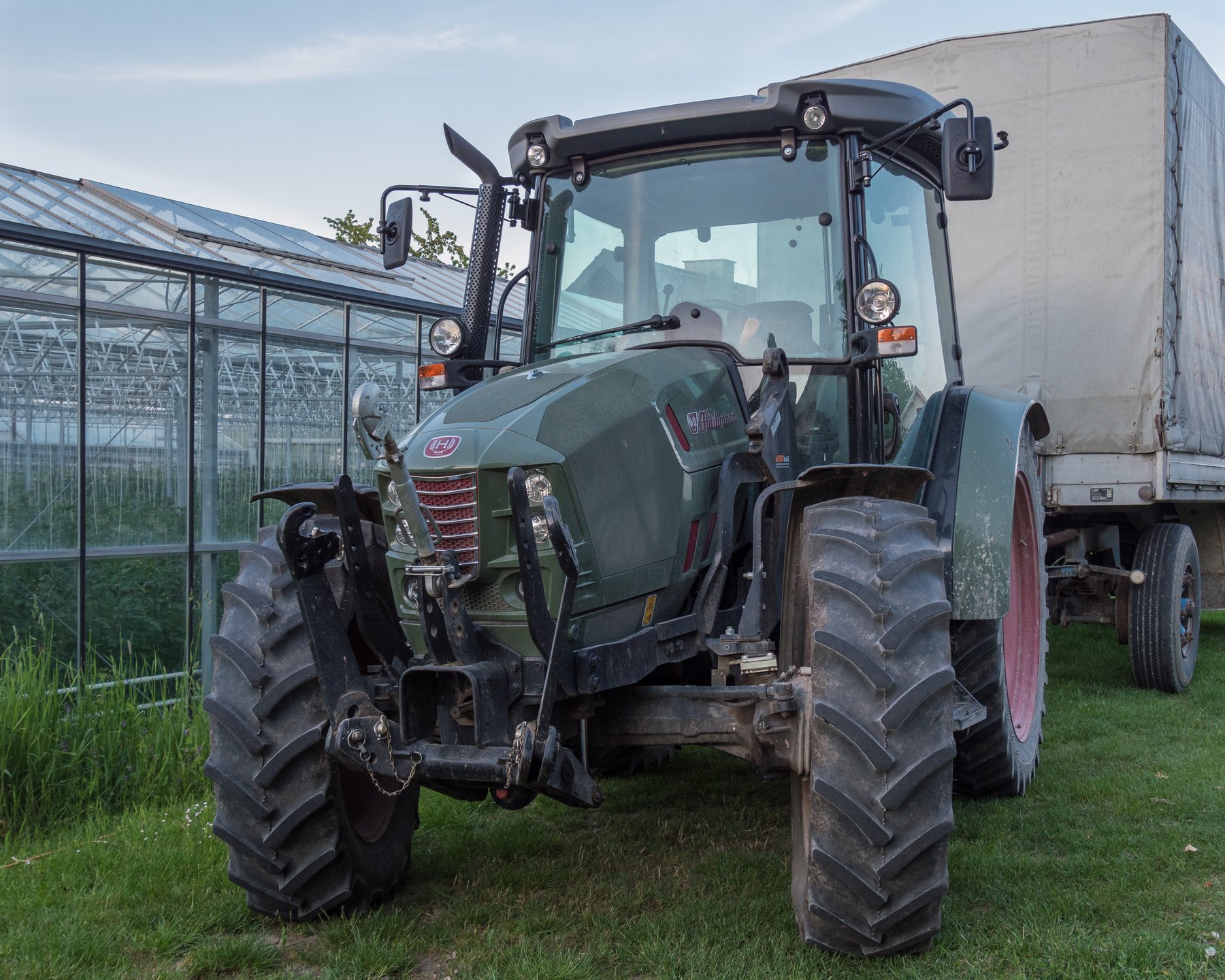

Hürlimann XB MAX 100
Built: 2012–2015 · Series: XB MAX
More machines from model year 2012
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Hürlimann XB MAX 100: four-cylinder diesel engine with 4,038 cc displacement, liquid and oil cooling, 99 hp (70.5 kW), 380 Nm torque and a top speed of 40 km/h
The XB MAX series was Hürlimann's offering in the medium-to-upper power class and, like the brand's other models, was aimed at farms in mountain and hill terrain as well as mixed agricultural use.
Read on 3 more paragraphs
The four-cylinder diesel engine of 4,038 cc with liquid and oil cooling produces 99 hp (70.5 kW) at 2,300 rpm and 380 Nm of torque. At an unladen weight of 3,400 kilograms, a wheelbase of 2,320 millimetres and a width of 2,050 millimetres, the XB MAX 100 is noticeably more powerful and heavier than the brand's smaller series.
A design top speed of 40 km/h places the machine in the upper part of driving licence category T. The combination of liquid and oil cooling keeps operating temperatures stable even under sustained load at the power take-off or the ISO 730 three-point linkage.
When buying a used XB MAX 100, the coolant and engine oil cooling circuits are among the most important checks, since a failure of the oil cooling quickly leads to engine damage. Also important are the condition of the front loader bracket, where fitted, and wear on the four-wheel drive and brakes on a machine of this weight. The cab mounting points and the seals around doors and windows are worth checking too, since moisture from mountain work tends to cause damage there first, and a full service history is a useful indicator of how the machine was used.
Sources: SpecCodex-Register: Kennwerte des Modells XB MAX 100
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 99 hp (70.5 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Torque | 380 Nmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,038 cm³correct |
| Bore | 101 mmcorrect |
| Stroke | 126 mmcorrect |
| Compression ratio | 18correct |
| Cooling | Flüssigkeits-/Ölkühlungcorrect |
Dimensions and weights
| Length | 3,950 mmcorrect |
|---|---|
| Width | 2,050 mmcorrect |
| Height | 2,580 mmcorrect |
| Wheelbase | 2,320 mmcorrect |
| Ground clearance | 500 mmcorrect |
| Unladen weight | 3,400 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | Mechanisch/HI-LO auf Wunschcorrect |
| Front tyres | 7.50-16 ASF (A: 11.2 R 24 AS)correct |
| Rear tyres | 16.9 R 34 AScorrect |
| Top speed | 40 km/hcorrect |
Working data
| Fuel tank capacity | 160 lcorrect |
|---|
Origin and approval
| Construction | Standardtraktorcorrect |
|---|
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 20.7 kW/t (70 kW / 3.4 t)
Power class: Universal (40–100 hp)
Stronger than 64% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Hürlimann XB MAX 100 have?
The Hürlimann XB MAX 100 delivers 99 hp.
How much does the Hürlimann XB MAX 100 weigh?
The unladen weight is 3,400 kg.
What engine does the Hürlimann XB MAX 100 have?
4 cylinders, 4,038 cm³ displacement, Diesel.
How fast does the Hürlimann XB MAX 100 go?
Top speed is 40 km/h.
What are the dimensions of the Hürlimann XB MAX 100?
3,950 mm × 2,050 mm × 2,580 mm.
When was the Hürlimann XB MAX 100 built?
Production years: 2012–2015.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
