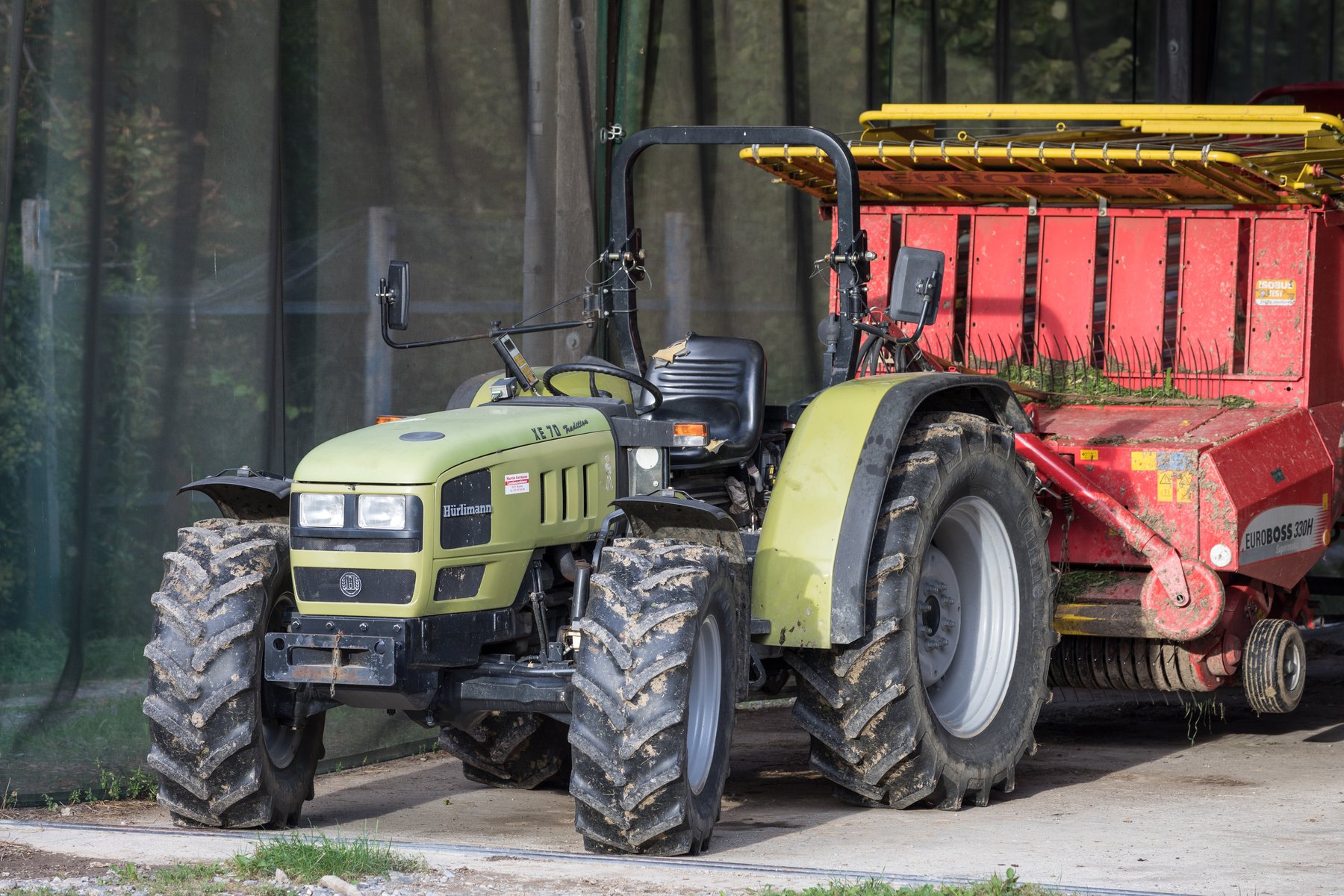

Hürlimann / Sdf XE 70 TRADITION
Built: 2005–2009 · Series: XE-Baureihe
More machines from model year 2005
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Hürlimann XE series Tradition: compact three-cylinder tractors from Wil, XE 55 and XE 70 TRADITION, 38 to 49 kW, under the SAME Deutz-Fahr group
The XE series rounds out Hürlimann's range under the SAME Deutz-Fahr group (SDF) in the compact power segment. The XE 55 and XE 70 TRADITION carry three-cylinder engines and the Tradition suffix, marking a more simply equipped base version within the series. Within Hürlimann's range, the XE series thus formed the counterpart to the more comfortably equipped model lines with richer standard equipment.
Read on 3 more paragraphs
The register lists 2 versions here with 38.2 to 49.3 kW from three-cylinder engines of 3,000 cm³, torque of 205 to 260 Nm at a rated speed of 2,200 rpm, and unladen weights of 2,180 to 2,350 kg, with lengths of 3,085 to 3,270 mm, widths of 1,640 to 1,780 mm and heights of 2,245 to 2,300 mm.
As compact three-cylinder tractors, the XE series targeted smaller and medium-sized farms for which a simply equipped, robust base version was sufficient, rounding out the more richly equipped models in Hürlimann's range at the lower end. Its lower weight and compact dimensions also made it attractive to farms with tight yard conditions.
When buying one of these three-cylinder tractors, attention should go to the condition of the engine and injection system, the tightness of the hydraulics, rust on the fenders and cab floor, and the condition of the clutch and transmission, as well as the tightness of the cab mounts and the function of the pto; spare parts are available through the SDF dealer network.
Sources: SpecCodex register, model data: Hürlimann XE-Baureihe, Hürlimann (SDF-Marke, Hersteller)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 67 hp (49.3 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 260 Nmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 3,000 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 115.5 mmcorrect |
| Compression ratio | 16correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,270 mmcorrect |
|---|---|
| Width | 1,780 mmcorrect |
| Height | 2,300 mmcorrect |
| Wheelbase | 2,055 mmcorrect |
| Ground clearance | 380 mmcorrect |
| Unladen weight | 2,350 kgcorrect |
Drivetrain and chassis
| Drive | rear- and four-wheel drivecorrect |
|---|---|
| Gearbox | 20 V/10 R and 30 V/15 Rcorrect |
| Front tyres | 11.2 R 24 AScorrect |
| Rear tyres | 16.9 R 30 AScorrect |
| Top speed | 40 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 21 kW/t (49 kW / 2.4 t)
Power class: Universal (40–100 hp)
Stronger than 46% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Hürlimann / Sdf XE 70 TRADITION have?
The Hürlimann / Sdf XE 70 TRADITION delivers 67 hp.
How much does the Hürlimann / Sdf XE 70 TRADITION weigh?
The unladen weight is 2,350 kg.
What engine does the Hürlimann / Sdf XE 70 TRADITION have?
3 cylinders, 3,000 cm³ displacement, Diesel.
How fast does the Hürlimann / Sdf XE 70 TRADITION go?
Top speed is 40 km/h.
What are the dimensions of the Hürlimann / Sdf XE 70 TRADITION?
3,270 mm × 1,780 mm × 2,300 mm.
When was the Hürlimann / Sdf XE 70 TRADITION built?
Production years: 2005–2009.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
