Start › Trailers › Hueffermann Transsysteme › HSA › HSA 3073L

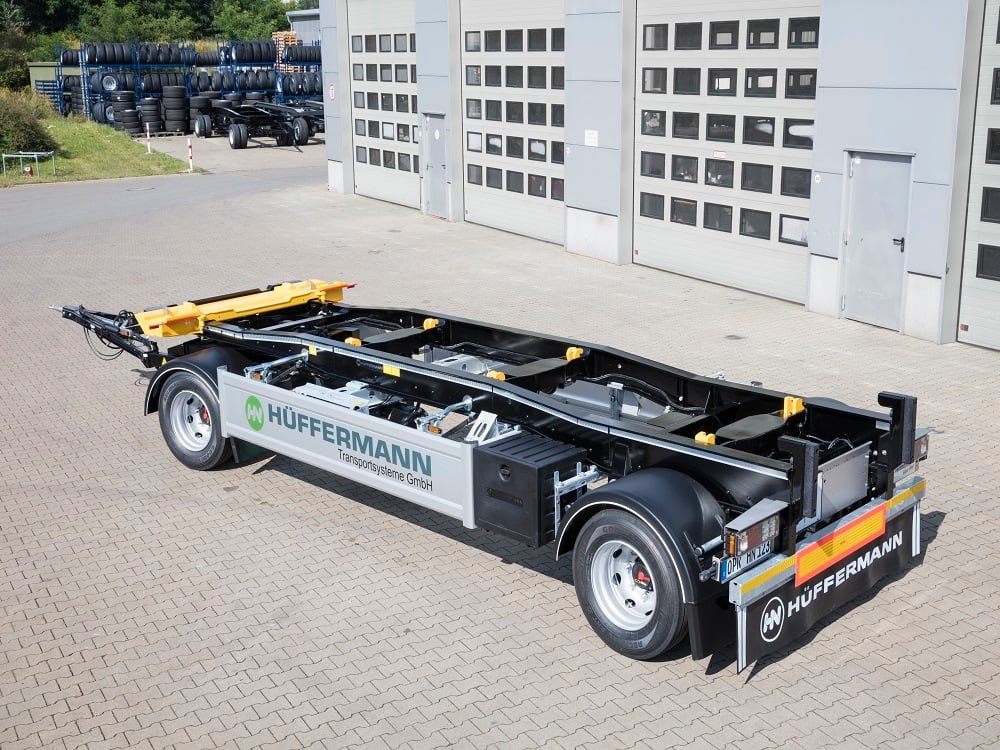

Hueffermann Transsysteme HSA 3073L

Built: 2015 · Series: HSA

More machines from model year 2015

Source: hueffermann.de

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the HSA 3073L, Hueffermann Transsysteme offers a model from the HSA series. Production: 2015. The vehicle is 9,750 mm long and 2,520 mm wide. The unladen weight is 4,422 kg. The wheelbase measures 5,360 mm. Top speed is 100 km/h. The gross vehicle weight is 30,000 kg. The HSA series covers 14 models. Unladen weight within it ranges from 3,200 to 5,160 kg; the HSA 3073L sits in the upper part of that range with 4,422 kg. Its immediate neighbours are the HSA 28.71 below it with 4,320 kg and the HSA 27.70 above it with 4,484 kg. Gross vehicle weight within it ranges from 18,000 to 30,000 kg; here the HSA 3073L sits at the top of that range with 30,000 kg. 28 Hueffermann Transsysteme models across 2 series are on record.

Hüffermann Transportsysteme HSA – transport trailers for containers and swap bodies, unladen weights 3,200 to 5,160 kg, permissible gross weights 18,000 to 30,000 kg, lengths 9,500 to 10,060 mm

Hüffermann Transportsysteme is a German manufacturer of transport trailers for containers, swap bodies and construction machinery. The HSA range on this page covers medium-heavy to heavy trailers whose type designation combines a two-digit base number with a further two-digit addition after a dot, as in HSA 18.70 through HSA 30.73, with the second number within a given size marking different equipment levels, as in HSA 30.70, HSA 30.71 and HSA 30.73.

Read on 3 more paragraphs

The register lists here 14 versions with unladen weights from 3,200 to 5,160 kg, permissible gross weights from 18,000 to 30,000 kg, lengths from 9,500 to 10,060 mm and widths from 2,500 to 2,550 mm.

With payloads well over 20 tonnes against a comparatively low kerb weight, the HSA trailers belong to the transport-system segment for swap bodies, containers and construction machinery, as needed in combined transport and on building sites. Hauliers and building firms often run these trailers interchangeably with several bodies rather than tying them to one fixed load.

When buying used, these transport systems call above all for a check of the loading and locking mechanism for swap bodies or containers, the hydraulics, and the axles and brakes appropriate to the high permissible gross weight. The frame and the loading gear's mounting points should be examined for wear and cracking; Hüffermann supplies spares and service through its own works; on frequently swapped bodies it is also worth assessing wear at the locking points themselves.

Sources: SpecCodex register, model data: Hueffermann Transsysteme HSA, Hüffermann Transportsysteme (manufacturer)

Technical data

Dimensions and weights

Length9,750 mmcorrect
Width2,520 mmcorrect
Wheelbase5,360 mmcorrect
Unladen weight4,422 kgcorrect
Gross vehicle weight30,000 kgcorrect

Drivetrain and chassis

Top speed100 km/hcorrect

Frequently asked questions

How much does the Hueffermann Transsysteme HSA 3073L weigh?

The unladen weight is 4,422 kg.

What is the gross vehicle weight of the Hueffermann Transsysteme HSA 3073L?

30,000 kg.

Up to what speed is the Hueffermann Transsysteme HSA 3073L approved?

Approved up to 100 km/h.

What are the dimensions of the Hueffermann Transsysteme HSA 3073L?

9,750 mm × 2,520 mm.

When was the Hueffermann Transsysteme HSA 3073L built?

Production years: 2015.

What to check before buying

  • Search the frame and welds at the axle mounts — that is where cracks start.
  • Check the brakes and the last inspection in the papers.
  • Work the gross weight against the towing vehicle before buying.
  • Compare the chassis number with the papers.
  • Look at the floor, cover or body from the inside — rust does not show from outside.

A general list for this type of machine — no substitute for an inspection or an appraiser.
