Hueffermann HRA 36.12 LS
Built: 2012 · Series: HRA
More machines from model year 2012
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

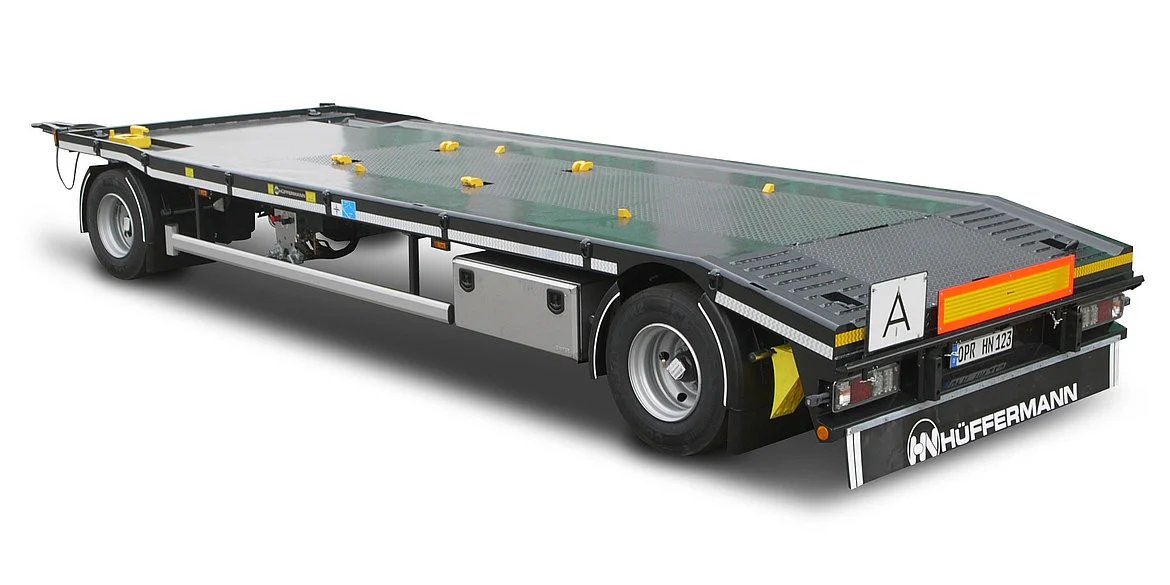

The Hueffermann HRA 36.12 LS is a trailer from Hueffermann (EU vehicle class O4), registered as built in 2012. It is 15,450 mm long and 2,500 mm wide, weighs 7,000 kg unladen and has a permitted gross weight of 36,000 kg.
The Hueffermann HRA 36.12 LS offers a payload of 29,000 kg – the gap between unladen and permitted gross weight. More than half of the gross weight is therefore available for cargo.
With a permitted gross weight of 36,000 kg the trailer exceeds the BE limit of 3,500 kg. It requires a C1E licence as long as the combination stays within 12,000 kg, otherwise CE – in practice behind a truck or an agricultural tractor.
Among the 65 trailers from Hueffermann with a stated length, the Hueffermann HRA 36.12 LS at 15,450 mm is among the longest (rank 6); the range runs from 4,880 to 15,975 mm. The Finnish vehicle register lists one unit – one of the brand's most common models.
Hüffermann HRA – the trailer: five versions of the HRA range from the commercial-vehicle builder in Neustadt am Rübenberge, 7,000 to 9,090 kg unladen weight, 36,000 to 50,000 kg gross weight
This page covers the HRA range from the commercial-vehicle builder Hüffermann of Neustadt am Rübenberge, which builds, among other things, roll-off container trailers. The register lists the versions HRA 36.12 LS, HRA 42.12, HRA 42.12 LS, HRA 42.13 LS and HRA 4212 side by side; the first two digit groups fall within the range's gross weight span, and the LS suffix denotes an equipment variant.
Read on 3 more paragraphs
The register lists here 5 versions with unladen weights from 7,000 to 9,090 kg, gross weights from 36,000 to 50,000 kg, lengths from 15,450 to 15,975 mm and widths from 2,500 to 2,550 mm.
With gross weights of 36 to 50 tonnes and lengths of around 15.5 to 16 metres, the range falls into the class of multi-axle trailers for transporting swap bodies and containers, used in construction and waste-handling transport behind suitably rated tractor units. The small differences between the versions point to different axle and equipment variants of the same base design.
On a used example of this range, the condition and function of the hook-lift or swap-body mechanism, the condition and load rating of the axles, the function of the brake system, rust on frame and side members, and lighting and plug connections all count above all. Parts and service for Hüffermann run through the maker's own dealer and workshop network.
Sources: SpecCodex register, model data: Hüffermann HRA
Technical data
Dimensions and weights
| Length | 15,450 mmcorrect |
|---|---|
| Width | 2,500 mmcorrect |
| Unladen weight | 7,000 kgcorrect |
| Gross vehicle weight | 36,000 kgcorrect |
Frequently asked questions
How much does the Hueffermann HRA 36.12 LS weigh?
The unladen weight is 7,000 kg.
What is the gross vehicle weight of the Hueffermann HRA 36.12 LS?
36,000 kg.
What are the dimensions of the Hueffermann HRA 36.12 LS?
15,450 mm × 2,500 mm.
When was the Hueffermann HRA 36.12 LS built?
Production years: 2012.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 5 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
