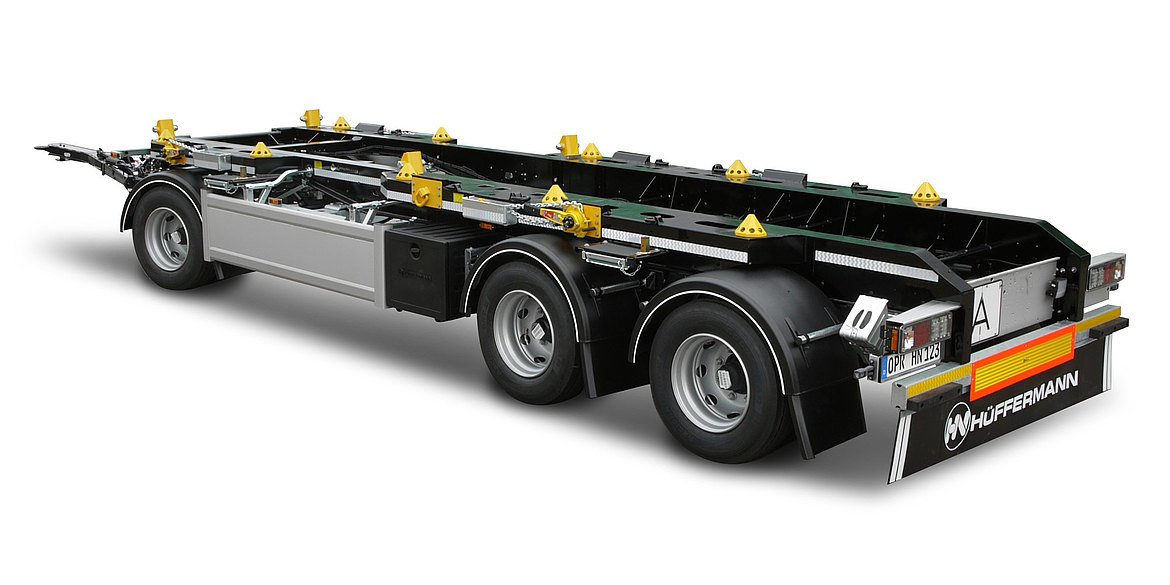

Hueffermann HMA 1820 – specifications
Built: 2005 · Series: HMA
The Hueffermann HMA 1820 is a model in the HMA series. Production: 2005. The vehicle is 9,400 mm long and 2,500 mm wide. The unladen weight is 4,520 kg. The wheelbase measures 5,150 mm. Top speed is 100 km/h. The gross vehicle weight is 20,000 kg. The HMA series covers 6 models. Unladen weight within it ranges from 3,670 to 7,072 kg; the HMA 1820 sits in the lower part of that range with 4,520 kg. Its immediate neighbours are the HMA 18.24 below it with 3,670 kg and the HMA 24 24 above it with 6,609 kg. Gross vehicle weight within it ranges from 20,000 to 30,000 kg; here the HMA 1820 sits at the bottom of that range with 20,000 kg. 70 Hueffermann models across 6 series are on record.
Data for the version built 2005 · Data origin: Official register · sources
More machines from model year 2005
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Hueffermann HMA: six class O4 hook-lift trailers from Neustadt (Dosse), unladen weight 3.67 to 7.07 t, gross vehicle weight 20 to 30 t, lengths 9.05 to 11.80 m
The HMA range from Hueffermann in Neustadt (Dosse) comprises class O4 hook-lift trailers: they carry swap containers loaded and unloaded by a hook-lift system, giving a hook-lift lorry an additional load area via the trailer. The versions listed in the register, from HMA 18.24 to HMA 30.96L, cover different payload and length steps of the range.
Read on 3 more paragraphs
The register lists 6 versions with unladen weights from 3,670 to 7,072 kg, gross vehicle weights from 20,000 to 30,000 kg, lengths from 9.05 to 11.80 m and widths from 2.44 to 2.53 m.
Hook-lift trailers of this kind are common in waste, recycling and construction-site traffic, where a vehicle with swap-body equipment moves several containers between different work sites and the trailer doubles the towing vehicle's transport capacity. The combination of lorry and trailer allows a full container to be left at one site while an empty one is taken away at the same time, without a second vehicle having to call.
When buying used, what counts on hook-lift trailers is the condition of the hook arm, rollers and guide rails, wear on chains or cables, corrosion on the chassis from contact with bulk material and building rubble, and the function of the container lock; axle load capacity and the condition of the braking system should be checked. Checking that the chassis number matches the registration papers, and reviewing the service book, also belong to the pre-purchase inspection.
Sources: SpecCodex register, model data: Hueffermann HMA
Technical data
Dimensions and weights
| Length | 9,400 mmcorrect |
|---|---|
| Width | 2,500 mmcorrect |
| Coupling-to-axle distance | 5,150 mmcorrect |
| Unladen weight | 4,520 kgcorrect |
| Gross vehicle weight | 20,000 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Are you the manufacturer or a dealer of this machine? Check the data and add missing figures — we mark your correction as manufacturer or dealer information.
Check and complete the data →Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
