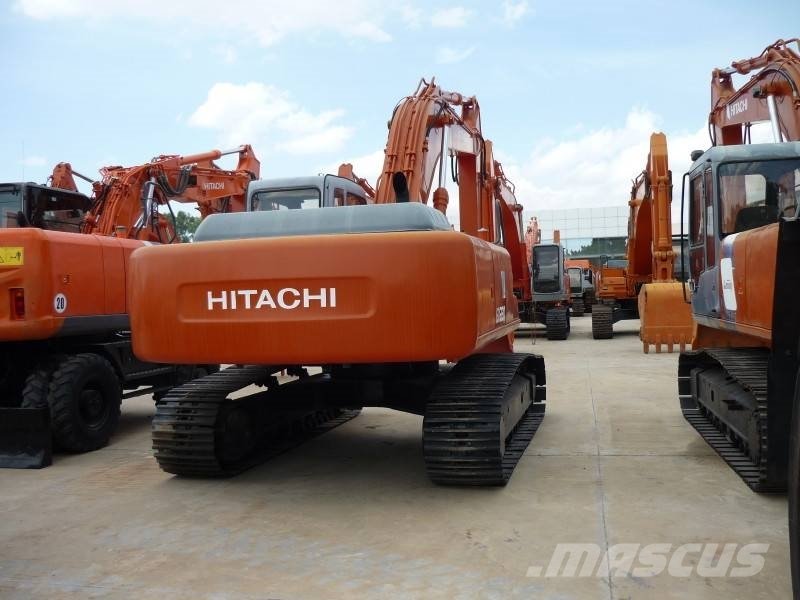

Hitachi EX220-5

Series: Hitachi Hydraulic Excavator

Source: https://www.mascus.fr/4-occasion/pelle-chenilles/hitachi-ex-

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the EX220-5, Hitachi offers a model from the Hitachi Hydraulic Excavator series. The engine delivers 116.3 kW, has 6 cylinders, with a displacement of 6,735.1 cm³. Torque is 618.1 Nm. Rated speed is 2,000 rpm. The unladen weight is 22,498.2 kg. Ground clearance is 460.2 mm. The tank holds 380.1 litres. Maximum torque is reached at 1,600 rpm. The pump delivers 408.1 l/min. The hydraulic tank holds 239.2 litres. Working pressure is 343.4 bar. The cooling system holds 23.1 litres. The oil fill is 26.1 litres. The engine fitted is the H07C-TD. The Hitachi Hydraulic Excavator series covers 158 models. Rated output within it ranges from 42.4 to 481.7 kW; the EX220-5 sits in the lower part of that range with 116.3 kW. Its immediate neighbours are the EX220LC-3 below it with 116 kW and the ZX225USLC-3 above it with 118.6 kW. 347 Hitachi models across 20 series are on record. The model is listed under Excavators & compaction. 17 verified figures from 1 source are on file.

Technical data

Engine

Engine modelH07C-TDcorrect
Power116.3 kWcorrect
Rated speed2,000 rpmcorrect
Torque618.1correct
Speed at max. torque1,600 rpmcorrect
Cylinders6correct
Displacement6,735.1 cm³correct
Aspirationturbochargedcorrect
Coolant capacity23.1 lcorrect
Engine oil capacity26.1 lcorrect

Dimensions and weights

Ground clearance460.2correct
Unladen weight22,498.2 kgcorrect

Working data

Pump flow408.1 l/mincorrect
Hydraulic oil capacity239.2 lcorrect
Hydraulic pressure343.4 barcorrect
Fuel tank capacity380.1 lcorrect

Other data

Cab height2,941.3correct

Where this model stands

Power-to-weight ratio: 5.2 kW/t (116 kW / 22.5 t)

Stronger than 53% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Hitachi EX220-5 have?

The Hitachi EX220-5 delivers 116 kW.

How much does the Hitachi EX220-5 weigh?

The unladen weight is 22,498 kg.

What engine does the Hitachi EX220-5 have?

6 cylinders, 6,735 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 17 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
