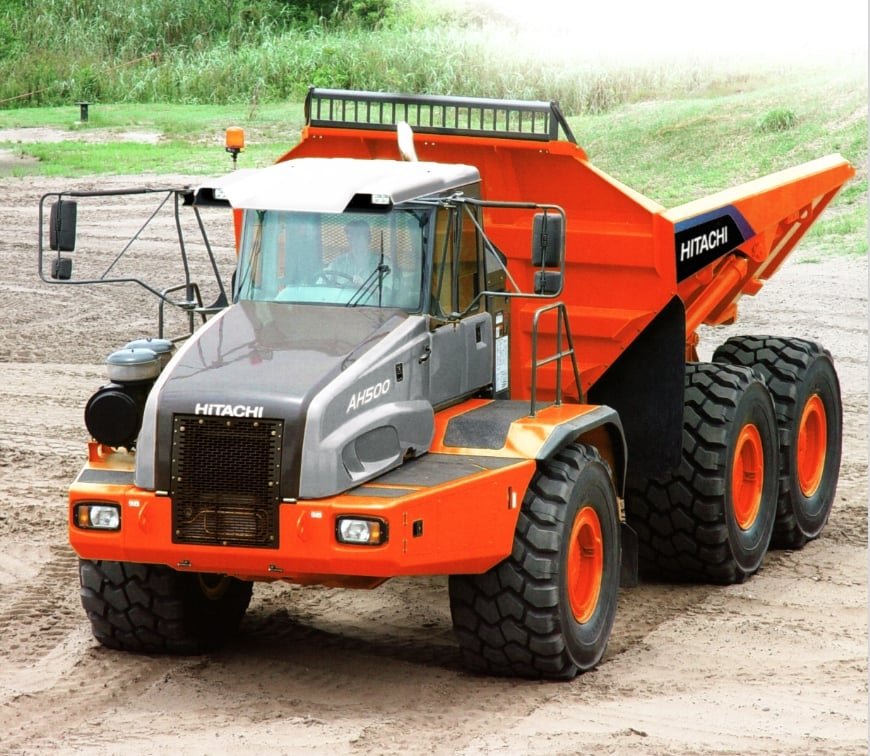

Hitachi AH500D
Series: Hitachi Articulated Dump Truck
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Hitachi AH250D to AH500D – the articulated dump trucks with Mercedes engines: AH for Articulated Hauler, the number as payload class in tonnes, six- and eight-cylinder OM906LA to OM502LA, 198 to 382 kW
Hitachi took over the articulated dump truck business from Euclid in the 1990s and continued it as Euclid-Hitachi, later fully under its own name. The AH range stands for 'Articulated Hauler', the model number giving roughly the payload class in tonnes – from the AH250D at around 25 t to the AH500D at around 50 t payload; the D marks the diesel version. The models are powered by Mercedes-Benz diesel engines of the OM family: the six-cylinder OM906LA in the smaller, the V-engines OM501LA and OM502LA in the larger machines.
Read on 3 more paragraphs
The register lists 5 versions with engines of 6,371 to 15,932 cm³, outputs of 197.6 to 381.8 kW and torque of 1,315 to 2,676 Nm, at a rated speed around 1,800 rpm. Lengths range from 9,504 to 10,820 mm, widths from 2,880 to 3,901 mm, heights from 3,430 to 7,230 mm, with the greater height including the raised body position when tipping.
Articulated dump trucks haul material in open-pit mining, earthmoving and on unmade sites over ground too soft or uneven for rigid dump trucks; the articulation between tractor unit and body allows tighter turning circles. In this segment Hitachi competes chiefly with Bell, Caterpillar, Volvo and Komatsu.
On used machines, operating hours, the condition of the articulation joint and oscillating axle, body bearing and tipping cylinders, tyres and brakes, and the Mercedes engine itself count, whose parts are usually readily available through the wide Mercedes commercial-vehicle network, while machine-specific parts run through Hitachi.
Sources: SpecCodex register, model data: Hitachi Articulated Dump Truck, Hitachi Construction Machinery (manufacturer)
Technical data
Engine
| Engine model | OM502LAcorrect |
|---|---|
| Power | 530.3 hp (381.8 kW)correct |
| Rated speed | 1,800 rpmcorrect |
| Torque | 2,147.1 Nmcorrect |
| Speed at max. torque | 1,300 rpmcorrect |
| Cylinders | 8correct |
| Displacement | 15,931.5 cm³correct |
| Aspiration | Turbocharged & Intercooledcorrect |
Dimensions and weights
| Length | 10,820.4 mmcorrect |
|---|---|
| Width | 3,901.4 mmcorrect |
| Height | 4,290 mmcorrect |
| Wheelbase | 5,446.8 mmcorrect |
| Ground clearance | 533.4 mmcorrect |
Drivetrain and chassis
| Gearbox type | Allison HD4500R ORS Full automatic gearbox planetary transmission with integral retardercorrect |
|---|---|
| Forward gears | 6correct |
| Reverse gears | 1correct |
| Tyre size | 875/65 R29correct |
| Top speed | 38.5 km/hcorrect |
Working data
| Fuel tank capacity | 640.1 lcorrect |
|---|
Other data
| System voltage | 24 Vcorrect |
|---|
More machines with this engine (Mercedes-Benz OM502LA, 4)
Frequently asked questions
How much power does the Hitachi AH500D have?
The Hitachi AH500D delivers 530 hp.
What engine does the Hitachi AH500D have?
8 cylinders, 15,932 cm³ displacement.
How fast does the Hitachi AH500D go?
Top speed is 38.5 km/h.
What are the dimensions of the Hitachi AH500D?
10,820 mm × 3,901 mm × 4,290 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
