Hino 285 LP – specifications
Built: 2009 · Series: Other models
Data for the version built 2009 · Data origin: Official register · sources
More machines from model year 2009
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

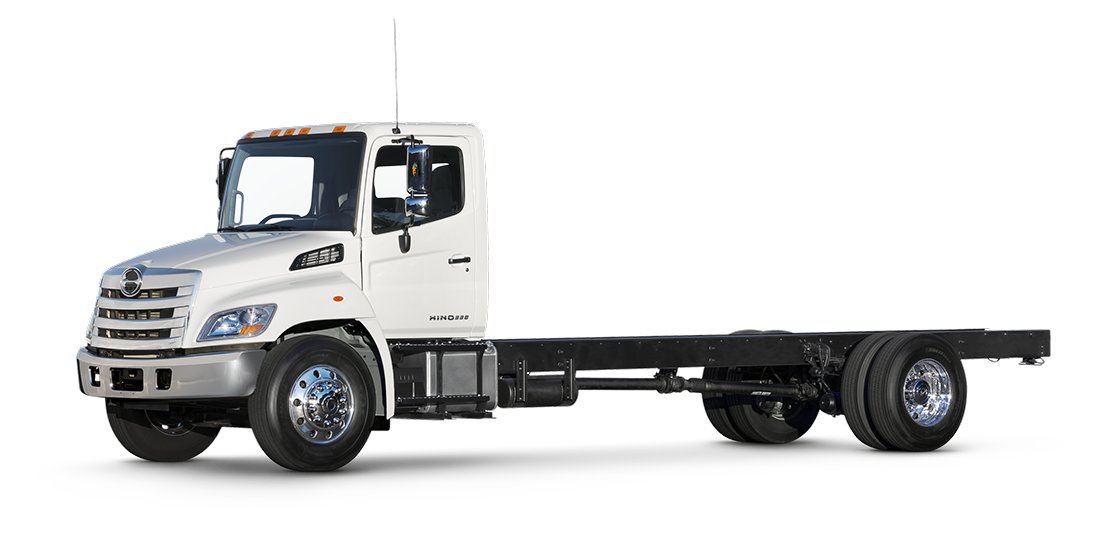

Hino 285 LP: Japanese six-cylinder truck with a 7,680 cc engine, a gross vehicle weight of 11,570 kg and six wheels on a 5,390 mm wheelbase
Hino is a Japanese manufacturer of trucks and buses and part of the Toyota group. The 285 LP shows the layout of a medium-duty low-frame chassis, of the kind used for bodies with a low loading floor, such as closed box bodies or vehicles fitted with a tail lift.
Read on 3 more paragraphs
The six-cylinder engine of 7,680 cc drives a vehicle 9,120 mm long, 2,420 mm wide, with a wheelbase of 5,390 mm, spread across six wheels. At a gross vehicle weight of 11,570 kg and an unladen weight of 6,970 kg, around 4,600 kg remains for body and payload.
At just over 11.5 tonnes, the vehicle sits in class N2 for trucks between 3.5 and 12 tonnes, the classic distribution segment for urban and regional rounds. The low frame makes loading and unloading at ramps and with pallet trucks easier, and six wheels on two axles spread the axle load more evenly than a simple two-axle vehicle on four wheels.
For a used Hino in this class, the condition of the tail lift or rear door, if fitted, matters, as does rust on the frame around the tow hitch. With six wheels on two axles, it is also worth checking the rear axle's brake pads and tyres, since these see heavier wear in urban distribution work with frequent stop-start driving. The condition of the load floor itself, such as dents or corrosion through the deck, also says a lot about the kind of goods it has carried.
Sources: SpecCodex-Register: Kennwerte des Modells Hino 285 LP, Hino
Technical data
Engine
| Cylinders | 6correct |
|---|---|
| Displacement | 7,680 cm³correct |
Dimensions and weights
| Length | 9,120 mmcorrect |
|---|---|
| Width | 2,420 mmcorrect |
| Wheelbase | 5,390 mmcorrect |
| Unladen weight | 6,970 kgcorrect |
| Gross vehicle weight | 11,570 kgcorrect |
Drivetrain and chassis
| Wheels | 6correct |
|---|
Frequently asked questions
How much does the Hino 285 LP weigh?
The unladen weight is 6,970 kg.
What is the gross vehicle weight of the Hino 285 LP?
11,570 kg.
What engine does the Hino 285 LP have?
6 cylinders, 7,680 cm³ displacement.
What are the dimensions of the Hino 285 LP?
9,120 mm × 2,420 mm.
When was the Hino 285 LP built?
Production years: 2009.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
