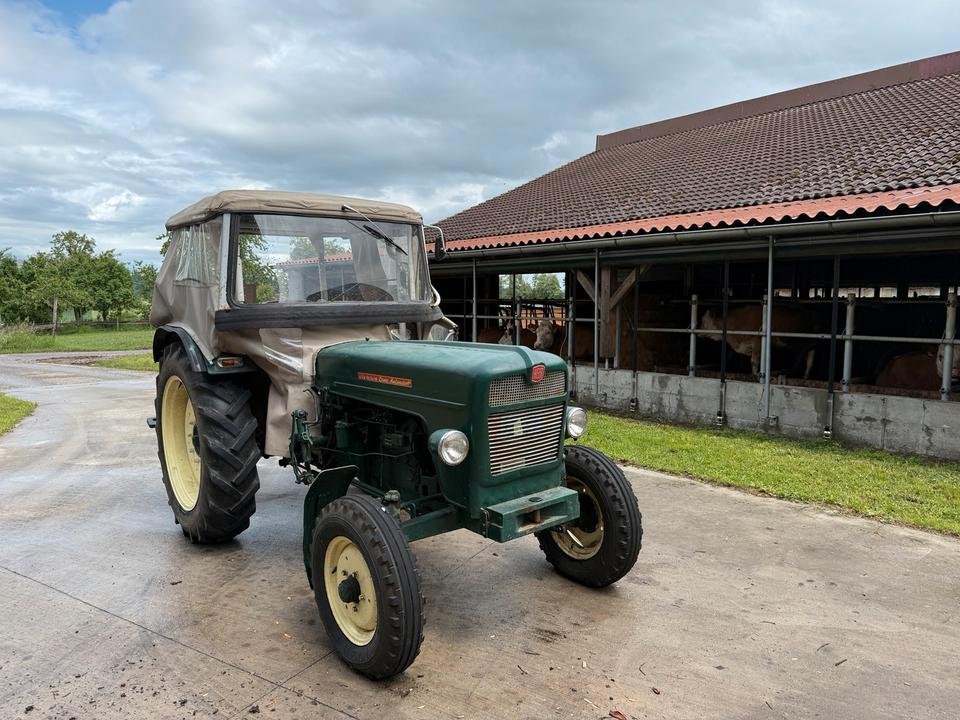

Hermann Lanz D 538 S – specifications
Built: 10/1966–6/1973 · Series: Schmalspur-Reihe
The Schmalspur-Reihe series from Hermann Lanz includes the D 538 S. Production: 10/1966–6/1973. The engine delivers 40 hp (29.3 kW), has 3 cylinders, with a displacement of 2,232 cm³. Rated speed is 2,300 rpm. The machine is 3,300 mm long, 1,040 mm wide and 1,230 mm high. The unladen weight is 1,520 kg. The wheelbase measures 1,860 mm. Ground clearance is 300 mm. Top speed is 20 km/h. Transmission: 10 V/2 R. The engine is water-cooled. Tyres: front 4.50-16 ASF, rear 10-24 AS. The fuel is diesel. The bore measures 95 mm. The stroke is 105 mm. Construction: unit construction (no separate frame). Injection pressure is 180 bar. Around 51 units were built. Rated output across the Hermann Lanz range ranges from 11 to 60 hp; the D 538 S sits in the middle of that range with 40 hp. Its immediate neighbours are the D 438 Export below it with 38 hp and the D 145 above it with 45 hp. Rated output across the Hermann Lanz range ranges from 8.1 to 43.9 kW; here the D 538 S sits in the middle of that range with 29.3 kW. 48 Hermann Lanz models across 8 series are on record.
Data for the version built 10/1966–6/1973 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 1966
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Hermann Lanz D 538 S: water-cooled three-cylinder narrow-track tractor with 2,232 cc, 29.3 kW and just 1,040 mm width from October 1966 to June 1973
Hermann Lanz of Aalen, independent of Heinrich Lanz AG in Mannheim, built tractors in a narrow-track series designed for work in confined spaces. The D 538 S was among the final versions of this series.
Read on 3 more paragraphs
The D 538 S is powered by a water-cooled three-cylinder engine of 2,232 cc, producing 40 hp, or 29.3 kW, at 2,300 rpm. At a weight of 1,520 kg, a length of 3,300 mm, a height of 1,230 mm and a width of just 1,040 mm, the machine, with a wheelbase of 1,860 mm, reaches a top speed of 20 km/h.
At just 1,040 mm wide and 1,230 mm high, the D 538 S is markedly narrower and lower than a standard-track tractor of the same output; such narrow-track tractors were built for row crops such as vineyards, orchards and hop yards, where the row spacing limited the vehicle's outline. A three-cylinder engine at a comparatively high speed of 2,300 rpm was typical of this compact design. Narrower wheel and tyre spacings were standard equipment on such models of the period.
When buying such a narrow-track tractor, the condition of the injection pump and injectors matters, along with the radiator and water pump for leaks. Given the narrow build, the steering and steering-knuckle pins should also be checked for play; spare parts for this small and now rare manufacturer are only available through a specialist circle of collectors.
Sources: SpecCodex-Register: Kennwerte des Modells Hermann Lanz D 538 S
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 40 hp (29.3 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,232 cm³correct |
| Bore | 95 mmcorrect |
| Stroke | 105 mmcorrect |
| Injection pressure | 180 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,300 mmcorrect |
|---|---|
| Width | 1,040 mmcorrect |
| Height | 1,230 mmcorrect |
| Wheelbase | 1,860 mmcorrect |
| Ground clearance | 300 mmcorrect |
| Unladen weight | 1,520 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 10 V/2 Rcorrect |
| Front tyres | 4.50-16 ASFcorrect |
| Rear tyres | 10-24 AScorrect |
| Top speed | 20 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 51correct |
Frequently asked questions
Where this model stands
Power-to-weight ratio: 19.3 kW/t (29 kW / 1.5 t)
Power class: Compact (< 40 hp)
Stronger than 25% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
