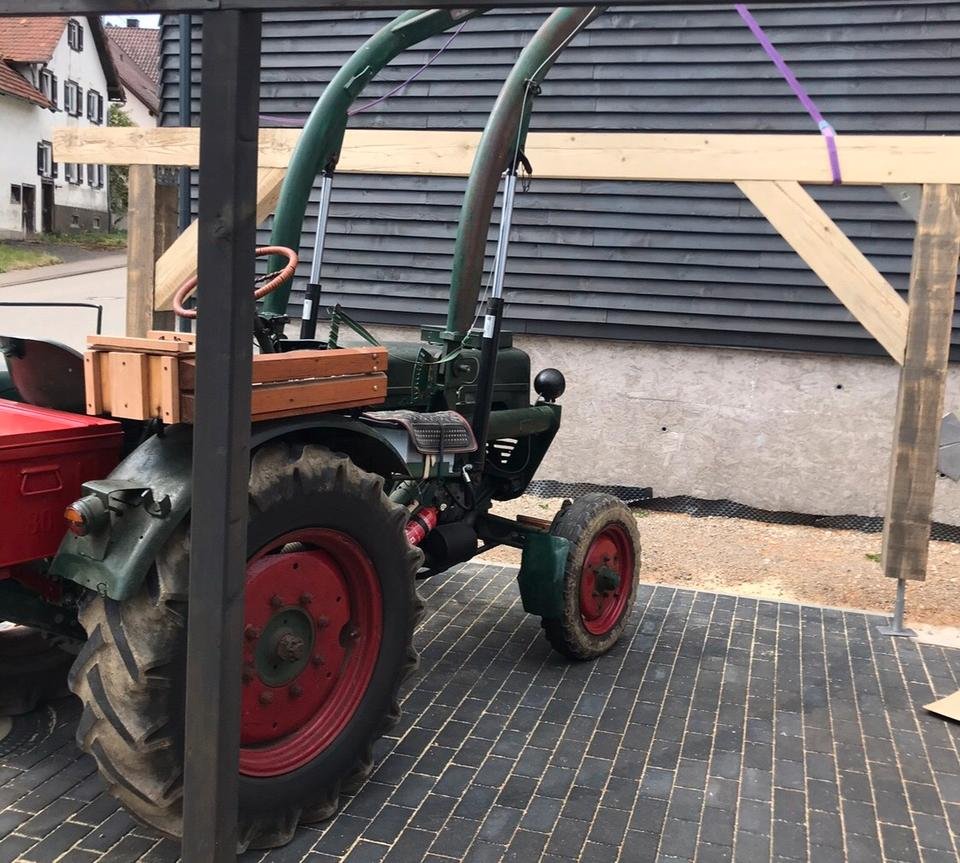

Hermann Lanz S 24 – specifications
Built: 03/1958–06/1963 · Series: D-Reihe
With the S 24, Hermann Lanz offers a model from the D-Reihe series. Production: 03/1958–06/1963. The engine delivers 24 hp (17.6 kW), has 2 cylinders, with a displacement of 1,810 cm³. Rated speed is 2,000 rpm. The machine is 2,830 mm long, 1,010 mm wide and 1,240 mm high. The unladen weight is 1,170 kg. The wheelbase measures 1,820 mm. Ground clearance is 360 mm. Top speed is 20 km/h. Transmission: 6V/1R. The engine is air-cooled. Tyres: front 5.00-16, rear 9-24. The fuel is diesel. The bore measures 98 mm. The stroke is 120 mm. Construction: unit construction (no separate frame). Injection pressure is 125 bar. Around 16 units were built. The D-Reihe series covers 38 models. Rated output within it ranges from 12 to 60 hp; the S 24 sits in the lower part of that range with 24 hp. Its immediate neighbours are the D 47 (KD) below it with 22 hp and the D 30 above it with 28 hp. Unladen weight within it ranges from 1,120 to 3,950 kg; here the S 24 sits at the bottom of that range with 1,170 kg. 48 Hermann Lanz models across 8 series are on record.
Data for the version built 03/1958–06/1963 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 1958
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Hermann Lanz Aulendorf D series – not the Bulldog: air-cooled tractors from Upper Swabia, 1949–1967
The D series from Hermann Lanz of Aulendorf is often confused with the Lanz Bulldogs from Mannheim – wrongly, because apart from the name the two companies have nothing in common. After the war the Upper Swabian firm built its own tractors with bought-in air-cooled diesel engines, mostly from MWM, and sold them mainly to small farms in southern Germany and Austria; the 'Austria-Diesel' in the register is one such export version.
Read on 3 more paragraphs
The type designation is consistent: D for diesel, the number roughly the power class – from the small D 12 and D 15 to the D 240 and D 245 of the 1960s. The suffix S marks improved versions, AE an equipment level. In the register the models run from 8.8 to 43.9 kW, from 905 to 3,400 cm³ with one to four cylinders and from 1,120 to 3,950 kg unladen; top speeds lie between 16.5 and 29.8 km/h.
The production periods of the individual models are recorded in the register to the month – a sign of the small batches and frequent model changes of a mid-sized maker that ended tractor production in 1967.
For collectors rarity counts; for condition, engine bearings, the cooling blower and the often simple gearboxes are decisive. Spare parts are available through the MWM engine connection and a small but active enthusiast scene.
Sources: SpecCodex register, model data: Hermann Lanz D-Reihe, Hermann Lanz Aulendorf (Wikipedia)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 24 hp (17.6 kW)correct |
| Rated speed | 2,000 rpmcorrect |
| Cylinders | 2correct |
| Displacement | 1,810 cm³correct |
| Bore | 98 mmcorrect |
| Stroke | 120 mmcorrect |
| Injection pressure | 125 barcorrect |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 2,830 mmcorrect |
|---|---|
| Width | 1,010 mmcorrect |
| Height | 1,240 mmcorrect |
| Wheelbase | 1,820 mmcorrect |
| Ground clearance | 360 mmcorrect |
| Unladen weight | 1,170 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 6V/1Rcorrect |
| Front tyres | 5.00-16correct |
| Rear tyres | 9-24correct |
| Top speed | 20 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 16correct |
Frequently asked questions
Where this model stands
Power-to-weight ratio: 15 kW/t (18 kW / 1.2 t)
Power class: Compact (< 40 hp)
Stronger than 10% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
