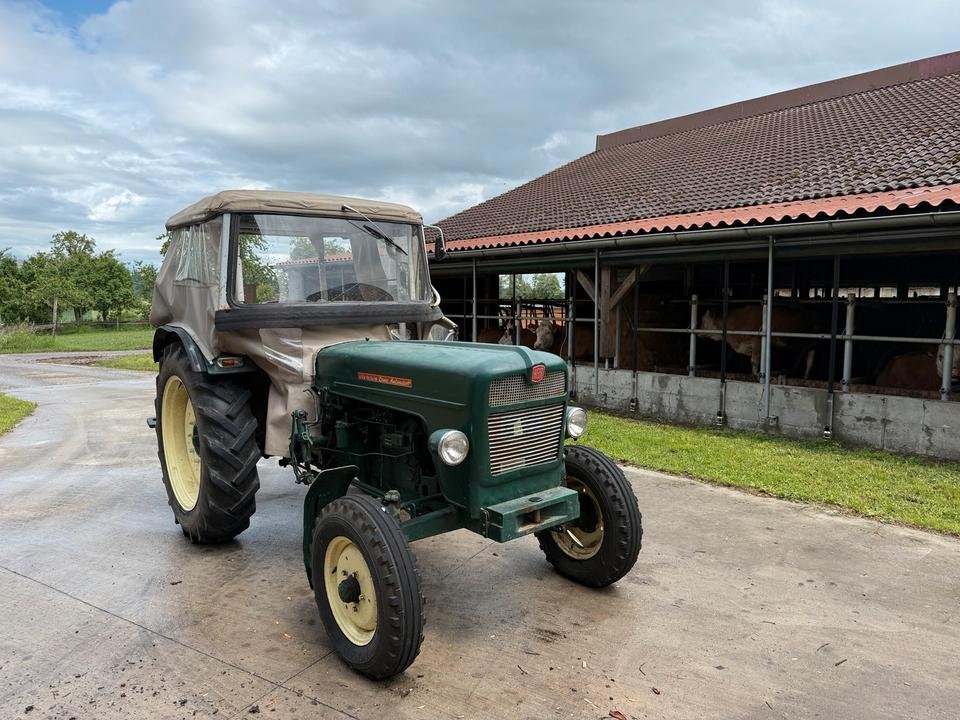

Hermann Lanz D 532
Lata produkcji: 05/68–02/74 · Seria: D-Reihe
Dane techniczne
| Construction | Blockbauweise |
| Cooling | Wasserkühlung |
| Cylinders | 3 |
| Displacement cm3 | 2232 cm3 |
| Drive type | Hinterradantrieb |
| Fuel | Diesel |
| Gearbox | 8V/2R |
| Ground clearance mm | 330 mm |
| Height mm | 1470 mm |
| Length mm | 3300 mm |
| Power km | 30 KM |
| Power kw | 22 kW |
| Rated rpm | 2100 obr./min |
| Tires front | 6.00-16 ASF |
| Tires rear | 10-28 AS |
| Top speed kmh | 20 km/h |
| Units built | 295 |
| Weight kg | 1710 kg |
| Wheelbase mm | 2080 mm |
| Width mm | 1520 mm |
Inne modele tej serii
Źródła: [1]
