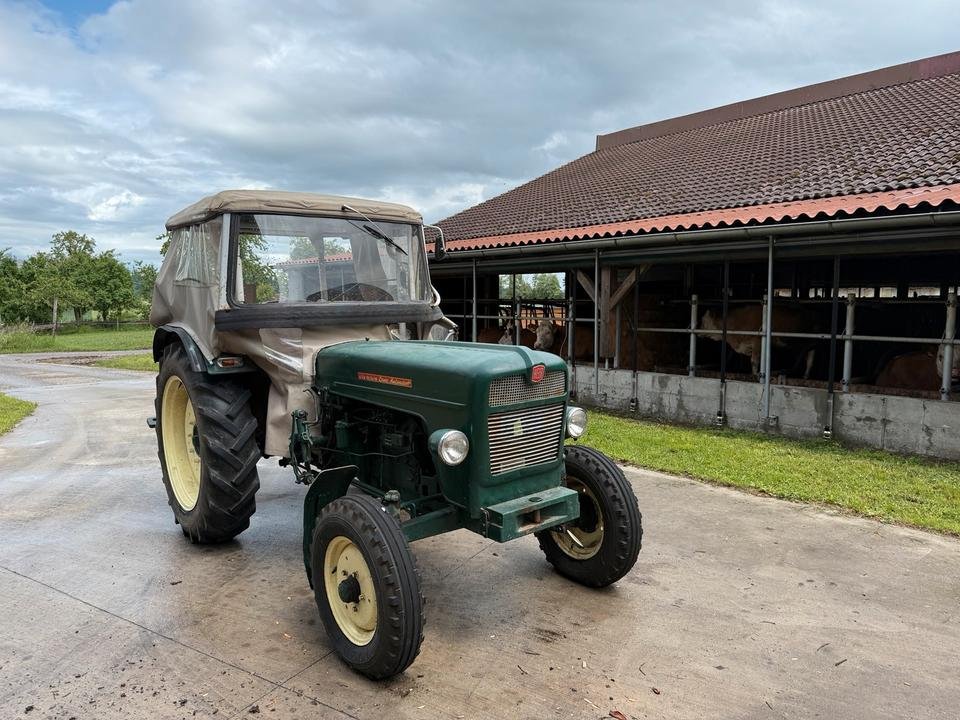

Hermann Lanz D 47
Bauzeit: 10/1949–12/1954 · Baureihe: 47-Baureihe
Technische Daten
| Construction | Blockbauweise |
| Cooling | Wasserkühlung |
| Cylinders | 2 |
| Displacement cm3 | 2198 cm3 |
| Drive type | Hinterradantrieb |
| Fuel | Diesel |
| Gearbox | 5V/1R |
| Ground clearance mm | 360 mm |
| Height mm | 1500 mm |
| Length mm | 2900 mm |
| Power km | 22 KM |
| Power kw | 16.1 kW |
| Rated rpm | 1500/1600 obr./min |
| Tires front | 5.50 x 16 |
| Tires rear | 9.00 x 24 |
| Top speed kmh | 20 km/h |
| Units built | 355 |
| Weight kg | 1600 kg |
| Wheelbase mm | 1800 mm |
| Width mm | 1540 mm |
Quellen: [1]
