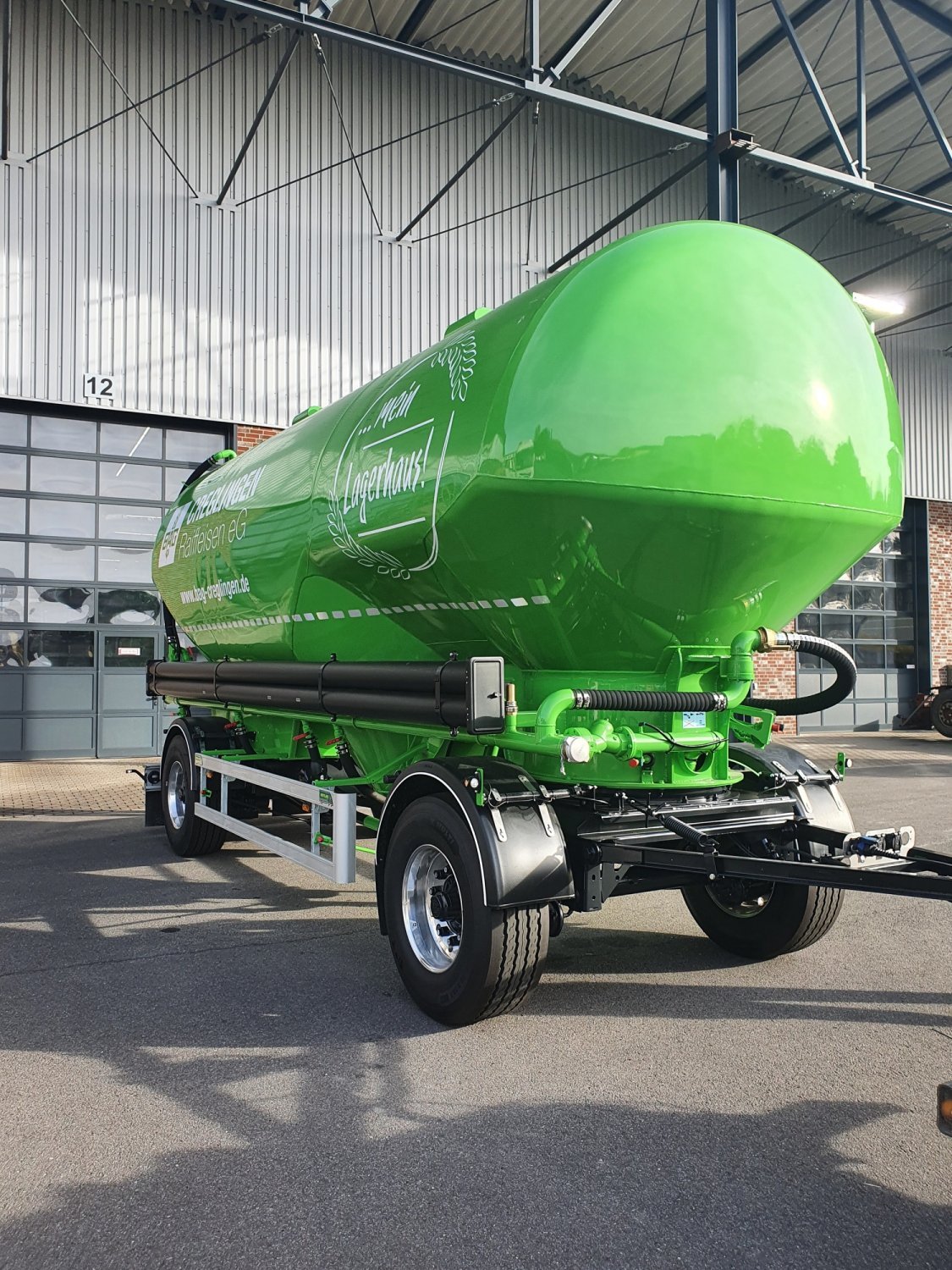

Heitling Melle SDBH
Built: 2015 · Series: Other models
More machines from model year 2015
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Heitling Melle SDBH – O4-class trailer with a gross weight of 30,000 kg, 24,177 kg payload, a length of 9.17 m and a 5.48 m wheelbase, built in 2015.
With a gross weight of 30,000 kg, the SDBH falls into EU trailer class O4, the heavy trailers above 10 tonnes. Trailers of this size haul general cargo, building materials or agricultural produce behind a tractor unit.
Read on 3 more paragraphs
With an unladen weight of 5,823 kg, payload comes to 24,177 kg, a high share of the gross weight. At 9.17 m long, 2.55 m wide and with a 5.48 m wheelbase, the trailer sits on a compact, multi-axle chassis that carries the high payload on a comparatively short base.
From class O3 upwards, trailers of this size are generally fitted with air brakes rather than the simple overrun brake used on light trailers. Towing it as a combination requires driving licence category C1E or CE in the EU, depending on the combined train weight. The compact build combined with a high payload calls for even load distribution across the platform, so axle loads stay within the permitted range rather than concentrating on a single axle.
When buying a used unit, check the frame and load platform: deformed main rails from point overloads and corrosion on the cross members are common weak spots on compact, heavily loaded chassis. Check the air lines for leaks, listen to the axle bearings for play, inspect the load-lashing points for deformation, and assess the condition of the frame paintwork as an indicator of earlier upkeep.
Sources: SpecCodex-Register: Kennwerte des Modells Heitling Melle SDBH, Zulassungsdaten RDW (Niederlande)
Technical data
Dimensions and weights
| Length | 9,170 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 5,480 mmcorrect |
| Unladen weight | 5,823 kgcorrect |
| Gross vehicle weight | 30,000 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Heitling Melle SDBH weigh?
The unladen weight is 5,823 kg.
What is the gross vehicle weight of the Heitling Melle SDBH?
30,000 kg.
Up to what speed is the Heitling Melle SDBH approved?
Approved up to 100 km/h.
What are the dimensions of the Heitling Melle SDBH?
9,170 mm × 2,550 mm.
When was the Heitling Melle SDBH built?
Production years: 2015.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
