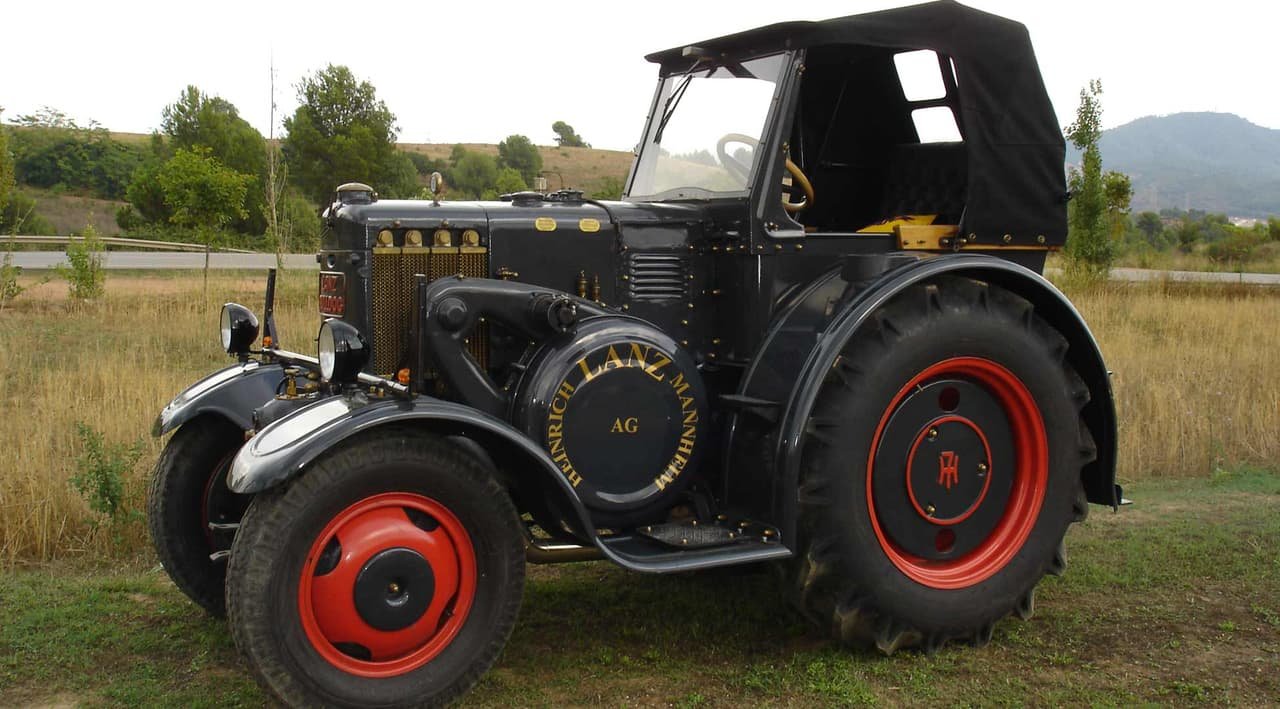

Heinrich Lanz D 2531 – specifications
Built: 1937–1954 · Series: HR 9
With the D 2531, Heinrich Lanz offers a model from the HR 9 series. Production: 1937–1954. The engine delivers 55 hp (40.3 kW), has 1 cylinder. Rated speed is 750 rpm. The machine is 3,900 mm long, 2,160 mm wide and 2,150 mm high. The unladen weight is 4,300 kg. The wheelbase measures 2,515 mm. Ground clearance is 275 mm. Top speed is 30.6 km/h. Transmission: 5V/1R. The engine is water-cooled. Tyres: front 7.00-20, rear 10.50-24. The fuel is Vielstoff. The bore measures 225 mm. The stroke is 260 mm. Construction: unit construction (no separate frame). Injection pressure is 80 bar. Rated output across the Heinrich Lanz range ranges from 12 to 60 hp; the D 2531 sits at the top of that range with 55 hp. Its immediate neighbours are the D 5016 below it with 50 hp and the D 5806 above it with 58 hp. Rated output across the Heinrich Lanz range ranges from 8.8 to 43.9 kW; here the D 2531 sits at the top of that range with 40.3 kW. 89 Heinrich Lanz models across 27 series are on record.
Data for the version built 1937–1954 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 1937
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Heinrich Lanz HR 9: heavy single-cylinder Bulldog from Mannheim, D 2531 and D 2539, 40.3 kW at 750 rpm, running on gas oil, lignite tar oil, diesel oil, paraffin oil or petrol
Heinrich Lanz AG, with its plant in Mannheim, built the Bulldog, a single-cylinder hot-bulb tractor that ran at low revs with high torque and could run on simple, varying fuels. This page collects the HR 9, recorded here as the D 2531 and D 2539; hot-bulb technology dispensed with a spark plug and a classic injector, making the machine insensitive to fuel quality.
Read on 3 more paragraphs
The register lists 2 versions rated at 40.3 kW from the single-cylinder engine at 750 rpm. Kerb weights range from 4,300 to 4,540 kg, lengths from 3,900 to 3,920 mm, widths from 2,160 to 2,500 mm, with a height of 2,150 mm. Gas oil, raw lignite tar oil, diesel oil, paraffin oil and petrol are recorded as fuel.
This multi-fuel capability was the central selling point of the Bulldog line: in times of scarce or expensive diesel fuel, farmers could switch to cheaper substitutes without converting the engine. The heavy, low-slung build also delivered high pulling power for tillage work.
When buying a used example, check the condition of the hot bulb and cylinder liner, the tightness of the cooling system, the state of clutch and gearbox, and corrosion on frame and wings; given the great age of these machines, spare parts are mostly sourced through Bulldog collectors and specialist restoration workshops, and a solid understanding of hot-bulb technology is essential for operation.
Sources: SpecCodex register, model data: Heinrich Lanz HR 9
Technical data
Engine
| Fuel | Vielstoffcorrect |
|---|---|
| Power | 55 hp (40.3 kW)correct |
| Rated speed | 750 rpmcorrect |
| Cylinders | 1correct |
| Bore | 225 mmcorrect |
| Stroke | 260 mmcorrect |
| Injection pressure | 80 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,900 mmcorrect |
|---|---|
| Width | 2,160 mmcorrect |
| Height | 2,150 mmcorrect |
| Wheelbase | 2,515 mmcorrect |
| Ground clearance | 275 mmcorrect |
| Unladen weight | 4,300 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 5V/1Rcorrect |
| Front tyres | 7.00-20correct |
| Rear tyres | 10.50-24correct |
| Top speed | 30.6 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Frequently asked questions
Where this model stands
Power-to-weight ratio: 9.4 kW/t (40 kW / 4.3 t)
Power class: Universal (40–100 hp)
Stronger than 38% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 21 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
