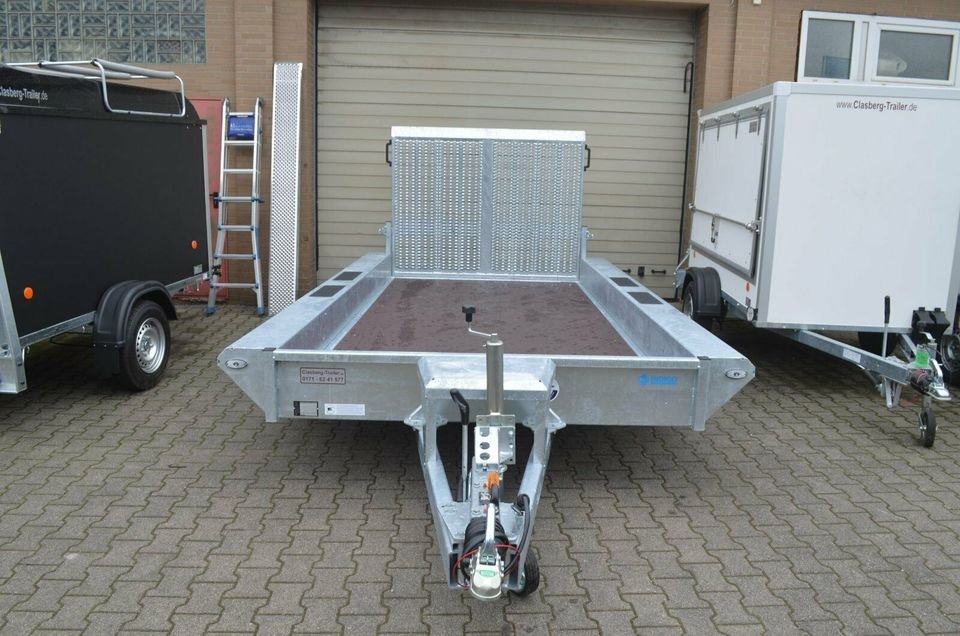

Haverkate HA 3500 – specifications
Built: 2009-2025 · Series: HA
With the HA 3500, Haverkate offers a model from the HA series. Production: 2009-2025. The vehicle is 10,100 mm long and 1,930 mm wide. The unladen weight is 2,840 kg. The wheelbase measures 8,330 mm. Top speed is 100 km/h. The gross vehicle weight is 3,500 kg. The vehicle runs on 6 wheels. The HA series covers 5 models. Unladen weight within it ranges from 2,370 to 3,823 kg; the HA 3500 sits in the lower part of that range with 2,840 kg. Its immediate neighbours are the HA 5000 below it with 2,826 kg and the HA 6000 above it with 3,823 kg. Gross vehicle weight within it ranges from 3,500 to 6,000 kg; here the HA 3500 sits at the bottom of that range with 3,500 kg. 57 Haverkate models across 3 series are on record.
Data for the version built 2009-2025 · Data origin: Official register · sources
More machines from model year 2009
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Haverkate HA – Dutch trailer series: 3.5 to 6 tonnes gross weight, 2.37 to 3.82 tonnes unladen weight, 8.22 to 10.3 m length
Haverkate is a Dutch maker of trailers. The HA series gathers versions with the code HA, followed on the larger models by a four-digit number such as 3200, 3500, 5000 or 6000; this number corresponds to the gross weight of the respective model in kilograms. This system makes it easier for buyers to match the right model to the payload they need.
Read on 3 more paragraphs
With a gross weight of 3.5 to 6 tonnes, the series spans from EU vehicle class O2 into class O3 for trailers between 3.5 and 10 tonnes. The register lists 5 versions with unladen weights of 2,370 to 3,823 kg. Lengths range from 8,220 to 10,300 mm and widths from 1,670 to 1,990 mm.
Trailers of this series, with their narrow width and weight range of 3.5 to 6 tonnes, cover a segment often used for transporting machinery and vehicles. The narrow build eases loading in confined spaces and transport on narrower access roads.
When buying used, check the drawbar and towing eye for cracks, as well as the axles, brake system and suspension for condition and tightness. Standard checks include tyres, lighting and the load bed coating. On the heavier models, also check the overrun brake and the lashing points for machinery and vehicles. Spare parts for axles and brake systems are available through the general commercial vehicle parts trade across Europe.
Sources: SpecCodex register, model data: Haverkate HA
Technical data
Dimensions and weights
| Length | 10,100 mmcorrect |
|---|---|
| Width | 1,930 mmcorrect |
| Coupling-to-axle distance | 8,330 mmcorrect |
| Unladen weight | 2,840 kgcorrect |
| Gross vehicle weight | 3,500 kgcorrect |
Drivetrain and chassis
| Wheels | 6correct |
|---|---|
| Top speed | 100 km/hcorrect |
Frequently asked questions
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 9 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Are you the manufacturer or a dealer of this machine? Check the data and add missing figures — we mark your correction as manufacturer or dealer information.
Check and complete the data →Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Other models in this series
Sources: RDW — Dutch national vehicle register (retrieved August 2026) · Data sources and cross-checks
