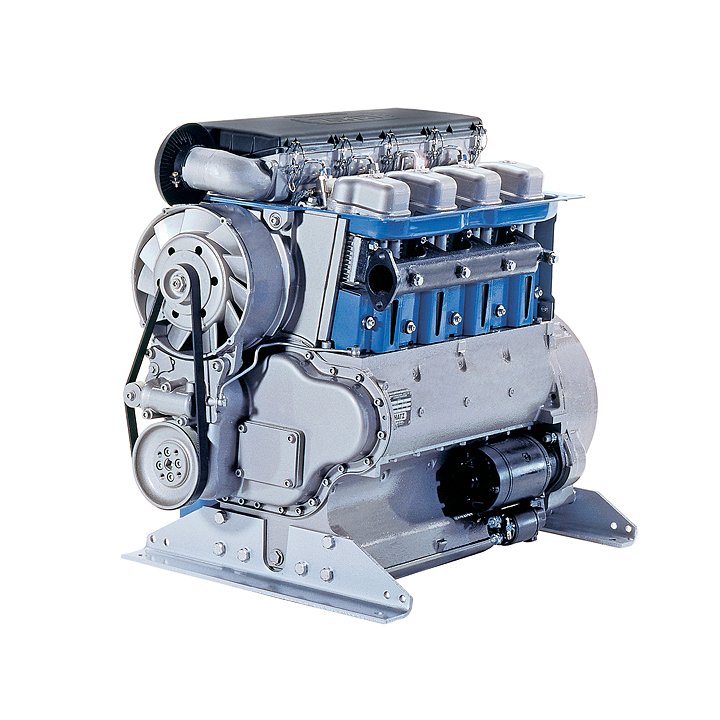

Hatz 4M41

Built: 2012-2012 · Series: Other models

Source: https://parts.hatz.com/en/by-engine-family/m-series/4m41/ p

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Hatz 4M41 is a machine built by Hatz. Production: 2012. The fuel is 7-15 ppm Ultra Low Sulfur Diesel. The rated output is 37 kW. The engine is naturally aspirated. The engine meets emissions stage Interim Tier 4. Fuel reaches the combustion chamber through direct injection. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the Hatz range ranges from 2 to 39 kW; the 4M41 sits at the top of that range with 37 kW. Its immediate neighbours are the 4L41C below it with 35 kW and the 4M42Z above it with 38 kW. 126 Hatz models across 8 series are on record. The model is listed under Non-road diesel engines. 24 verified figures from 1 source are on file.

Technical data

Engine

Engine code	4M41-ICFN-1800correct
Engine family	CHZXL3.43C41correct
Engine families	CHZXL3.43C41correct
Fuel	7-15 ppm Ultra Low Sulfur Dieselcorrect
Rated output	37 kWcorrect
Power band	19<=kW<37correct
Rated speed	1,800 rpmcorrect
Maximum torque	195.2 N·mcorrect
Speed at max. torque	1,800 rpmcorrect
Cylinders	4correct
Cylinder layout	in linecorrect
Bore	102 mmcorrect
Stroke	105 mmcorrect
Operating cycle	four-stroke dieselcorrect
Injection	direct injectioncorrect
Aspiration	naturally aspiratedcorrect
Emissions stage	Interim Tier 4correct

Origin and approval

Version	4M41-ICFN-1800correct
Built from	2012correct
Built to	2012correct
Model year from	2012correct
Model year to	2012correct

Frequently asked questions

How much power does the Hatz 4M41 have?

The Hatz 4M41 delivers 37 kW.

When was the Hatz 4M41 built?

Production years: 2012.

What to check before buying

Match the data plate against the order: frame size, mounting and rating have to agree.
For used units, ask about winding condition and bearing play.
Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
