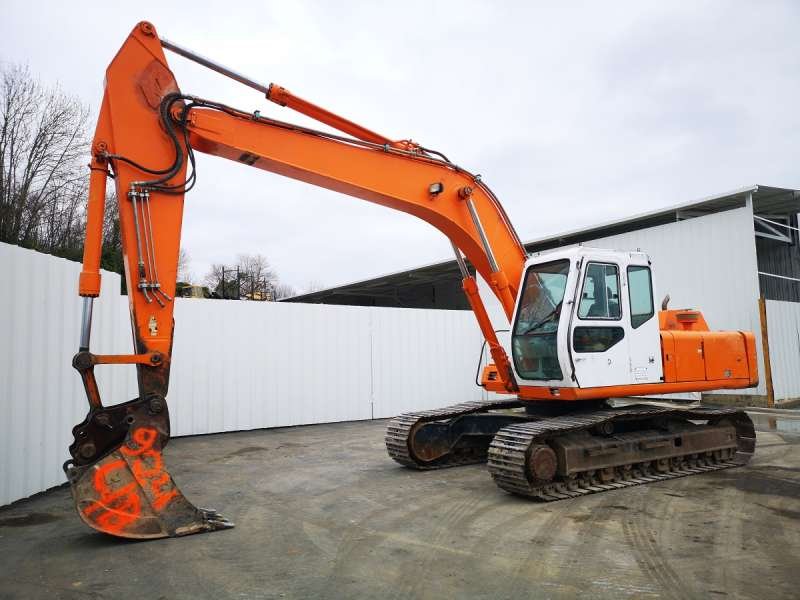

Halla HE220LC

Series: Halla Hydraulic Excavator

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Halla HE220LC is a model in the Halla Hydraulic Excavator series. The engine delivers 112 kW, has 6 cylinders, with a displacement of 5,883 cm³. Torque is 580 Nm. The unladen weight is 21,000 kg. Ground clearance is 466.3 mm. The tank holds 310 litres. Maximum torque is reached at 1,600 rpm. The pump delivers 458 l/min. The hydraulic tank holds 265.4 litres. Working pressure is 313.7 bar. The cooling system holds 31.4 litres. The oil fill is 16.7 litres. The electrical system runs on 24 V. The engine fitted is the B5,9C. The Halla Hydraulic Excavator series covers 3 models. Rated output within it ranges from 112 to 186.1 kW; the HE220LC sits at the bottom of that range with 112 kW. Its immediate neighbours are the HE280LC above it with 132.1 kW. 7 Halla models across 4 series are on record. The model is listed under Excavators & compaction. 17 verified figures from 1 source are on file.

Technical data

Engine

Engine model	B5.9Ccorrect
Power	112 kWcorrect
Torque	580correct
Speed at max. torque	1,600 rpmcorrect
Cylinders	6correct
Displacement	5,883 cm³correct
Aspiration	Turbocharged and Aftercooledcorrect
Coolant capacity	31.4 lcorrect
Engine oil capacity	16.7 lcorrect

Dimensions and weights

Ground clearance	466.3correct
Unladen weight	21,000 kgcorrect

Drivetrain and chassis

System voltage	24 Vcorrect

Working data

Pump flow	458 l/mincorrect
Hydraulic oil capacity	265.4 lcorrect
Hydraulic pressure	313.7 barcorrect
Fuel tank capacity	310 lcorrect

Other data

Height	2,938.3correct

Where this model stands

Power-to-weight ratio: 5.3 kW/t (112 kW / 21 t)

Stronger than 50% of the excavators & compaction in the register — out of 1,666 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Halla HE220LC have?

The Halla HE220LC delivers 112 kW.

How much does the Halla HE220LC weigh?

The unladen weight is 21,000 kg.

What engine does the Halla HE220LC have?

6 cylinders, 5,883 cm³ displacement.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
