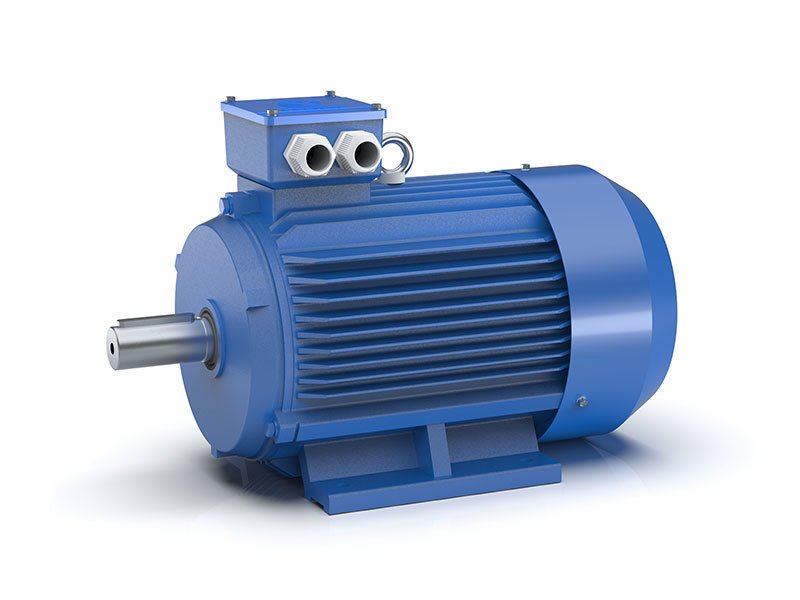

Guanglu YX3-80M2-2
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Guanglu – other models: the collective page of MEPS-registered YX3 three-phase motors outside the named ranges, frame sizes 80 to 200, 0.75 to 37 kW, 2- to 6-pole, from China
This page brings together the three-phase motors from Guanglu that the Australian energy-efficiency register (GEMS/MEPS) does not assign to a named series. Type designations such as YX3-100L-2 or YX3-160M2-2 follow the YX3 standard series widespread in China for aluminium-frame three-phase induction motors: the series code is followed by the IEC frame size, a letter for the frame length, and after the hyphen the pole count.
Read on 3 more paragraphs
The register lists here 39 versions with 0.75 to 37 kW, two- to six-pole, at a supply voltage of 415 V. Efficiency at full load ranges from 80.2 to 93.88%, and at 75% load from 80.49 to 93.84%. Frame sizes run from 80 to 200, almost all motors carry the IP55 rating, manufactured in China. Testing followed the 2019 GEMS determination, mostly using test method B; 11 of the 39 motors reach the 2005 High Efficiency Level, the rest carry no classification.
The page thus shows the broad base YX3 programme with which Guanglu competes in the power band up to 37 kW against other Chinese standard-motor makers in the MEPS register; the share of motors with a High Efficiency classification points to a gradual upgrading of the range.
When buying used, check the condition of the rolling bearings, a measured winding insulation resistance, visible overheating marks on the terminal box and fan cover, and a legible nameplate showing frame size, pole count and efficiency class. Since the High Efficiency Level classification varies from model to model, it is worth comparing the efficiency figures when replacing a unit; bearings and terminal boxes for the IEC frame sizes are usually available independent of the manufacturer.
Sources: SpecCodex register, model data: Guanglu (weitere Modelle, MEPS-Registrierungen)
Technical data
Engine
| Rated output | 1.1 kWcorrect |
|---|
Electrical data
| Rated voltage | 415 Vcorrect |
|---|---|
| Number of poles | 2correct |
| Protection class | IP55correct |
| Frame size | 80 M (foot)correct |
| Mounting (IEC 60034-7) | B3, B34, B35correct |
| Efficiency at full load | 82.73 %correct |
| Efficiency at 75 % load | 82.49 %correct |
| Efficiency at half load | 80.23 %correct |
Origin and approval
| Country of manufacture | Chinacorrect |
|---|
Other data
| Standard applied | Greenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2019correct |
|---|---|
| Test method | IEC 60034-2-1 (Edition 2.0)correct |
Frequently asked questions
How much power does the Guanglu YX3-80M2-2 have?
The Guanglu YX3-80M2-2 delivers 1.1 kW.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- Check the ingress rating against the installation site — outdoors or in dust the demands differ.
- Hold the mounting form and dimensions against the existing seat before ordering.
- The pole count sets the speed — when replacing an older unit, compare this first.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 22 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
