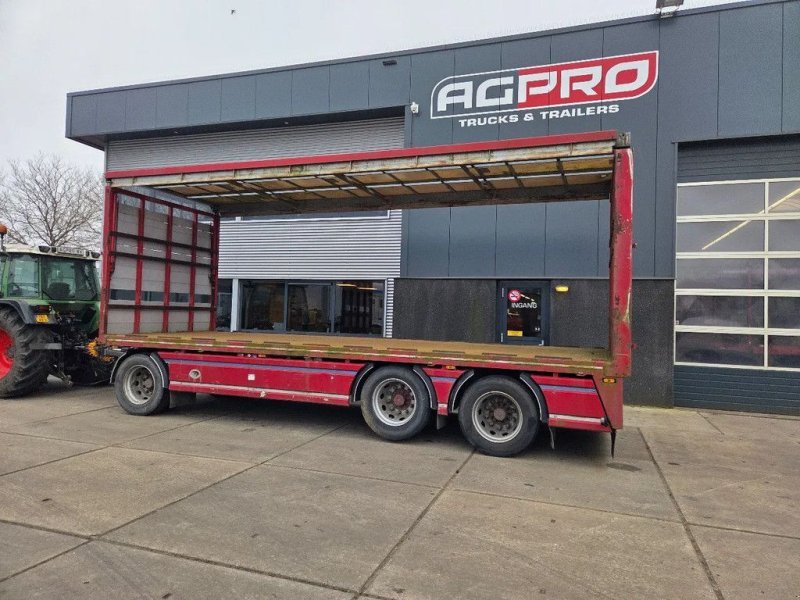

Gs AIL-3700 RW – specifications
Built: 2006 · Series: AIL-3700
With the AIL-3700 RW, Gs offers a model from the AIL-3700 series. Production: 2006. The vehicle is 11,080 mm long and 2,550 mm wide. The unladen weight is 8,380 kg. The wheelbase measures 6,800 mm. Top speed is 100 km/h. The gross vehicle weight is 37,000 kg. The AIL-3700 series covers 6 models. Unladen weight within it ranges from 7,780 to 9,850 kg; the AIL-3700 RW sits in the lower part of that range with 8,380 kg. Its immediate neighbours are the AIL-3700 MR below it with 7,780 kg and the AIL-3700 N above it with 8,660 kg. Gross vehicle weight within it ranges from 32,000 to 37,000 kg; here the AIL-3700 RW sits at the top of that range with 37,000 kg. 821 Gs models across 29 series are on record.
Data for the version built 2006 · Data origin: Official register · sources
More machines from model year 2006
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Gs AIL-3700 – trailer series from GS Meppel: 32 to 37 tonnes gross weight, 7.78 to 9.85 tonnes unladen weight, 10.14 to 12 m length
The AIL-3700 series from GS Meppel gathers trailers with the code AIL-3700, supplemented by letters such as BW, LM, MR, N, RW or UB for the respective equipment variant. The number 3700 in the type designation is close to the series' upper gross weight of 37,000 kg. The Dutch maker GS Meppel has traditionally built its trailers for cross-border European freight transport.
Read on 3 more paragraphs
With a gross weight of 32 to 37 tonnes, the series falls into EU vehicle class O4 for trailers over 10 tonnes. The register lists 6 versions with unladen weights of 7,780 to 9,850 kg. Lengths range from 10,140 to 12,000 mm and the width is uniformly 2,550 mm.
Trailers of this size serve commercial freight transport in the mid to upper weight segment and compete with comparable series from other Dutch, Belgian and German makers. They are often used in exchange traffic, where a trailer is taken over by different tractor units during the day to minimise standing time.
When buying used, check the frame, drawbar and towing eye for cracks, as well as the axles, brake system and suspension for condition and tightness. Standard checks include tyres, lighting and the load bed coating. Also check the tightness of the air-brake connections and the frame for corrosion at the welds. Spare parts for axles and brake systems are available through the general commercial vehicle parts trade.
Sources: SpecCodex register, model data: Gs AIL-3700
Technical data
Dimensions and weights
| Length | 11,080 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Coupling-to-axle distance | 6,800 mmcorrect |
| Unladen weight | 8,380 kgcorrect |
| Gross vehicle weight | 37,000 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Are you the manufacturer or a dealer of this machine? Check the data and add missing figures — we mark your correction as manufacturer or dealer information.
Check and complete the data →Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Other models in this series
Sources: RDW — Dutch national vehicle register (retrieved August 2026) · Data sources and cross-checks
Trailer in 3D section
Turn the model, look inside and click an assembly — each one is explained.
