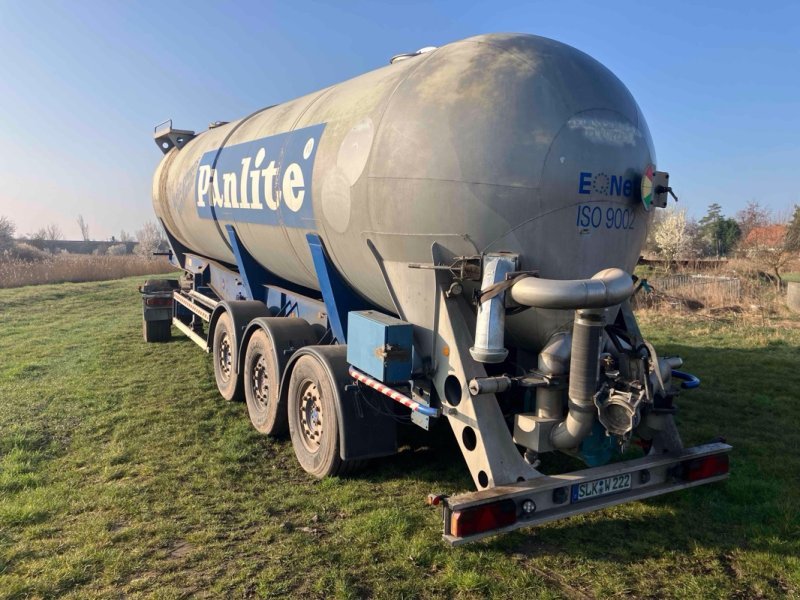

Gofa SSA 60 ADR
Built: 2003 · Series: SSA
More machines from model year 2003
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Gofa SSA – range of heavy semi-trailers, 38 to 50 tonnes gross weight, unladen weight 6,020 to 10,600 kg, lengths up to almost 14 m
This page gathers the semi-trailers of the SSA range of the Gofa brand. The type designation combines the code SSA with a two- or three-digit number, from SSA 36 to SSA 65, giving the size or weight class within the range; the suffix SD marks a separate equipment variant, for example SSA 58-SD.
Read on 3 more paragraphs
The register lists here 15 versions with unladen weights from 6,020 to 10,600 kg and gross weights from 38,000 to 50,000 kg, at lengths from 10,190 to 13,960 mm and widths from 2,520 to 2,600 mm.
The SSA range thus sits entirely in class O4 of heavy semi-trailers, towed behind tractor units in long-haul transport and for oversized loads with high payload. The narrow span of unladen weights against a sharply rising gross weight points to a range with a comparatively light chassis and a high-payload design, sought after in bulk and mass-goods haulage. Because of the high payload, such semi-trailers are often used in oversized-load transport by specialised hauliers.
On a used example, rust and deformation of the chassis rails, the condition of axles, the braking system and suspension, kingpin and landing legs, and, depending on the body, the curtain, side panels or load floor count. At such high payloads it is also worth checking the capacity and wear of the tyres and any chassis cracking from overloading; spare parts run through the open trailer trade.
Sources: SpecCodex register, model data: Gofa SSA
Technical data
Dimensions and weights
| Length | 13,440 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 8,960 mmcorrect |
| Unladen weight | 10,600 kgcorrect |
| Gross vehicle weight | 50,000 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Gofa SSA 60 ADR weigh?
The unladen weight is 10,600 kg.
What is the gross vehicle weight of the Gofa SSA 60 ADR?
50,000 kg.
Up to what speed is the Gofa SSA 60 ADR approved?
Approved up to 100 km/h.
What are the dimensions of the Gofa SSA 60 ADR?
13,440 mm × 2,550 mm.
When was the Gofa SSA 60 ADR built?
Production years: 2003.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
