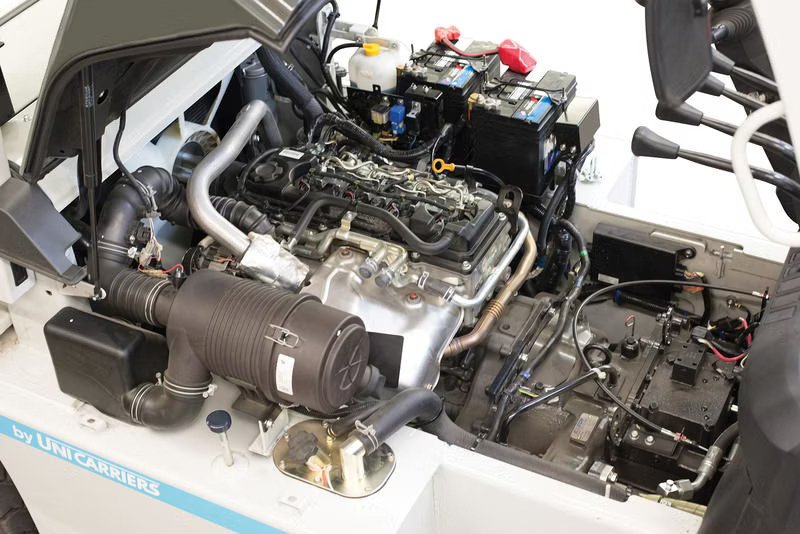

Global Component Technologies ZD30

Built: 2012-2018 · Series: Other models

Source: https://www.lectura-specs.com/en/model/components/engines-gl

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Global Component Technologies ZD30 is a machine built by Global Component Technologies. Production: 2012-2018. The fuel is 7-15 ppm Ultra Low Sulfur Diesel. The rated output is 36 kW. The engine is turbocharged. The engine meets emissions stage Tier 4 (Final or Phase In). Fuel reaches the combustion chamber through direct injection. Charging is by a wastegate turbocharger. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output within this group ranges from 2 to 4,850 kW; the ZD30 sits at the bottom of that range with 36 kW. Its immediate neighbours are the 4LHMQY below it with 35 kW and the 7215 above it with 37 kW. The model is listed under Non-road diesel engines. 26 verified figures from 1 source are on file.

Technical data

Engine

Engine codeZD30K06Ncorrect
Engine familyJNFXL03.0DD2correct
Engine familiesCNFXL03.0DD1correct
Fuel7-15 ppm Ultra Low Sulfur Dieselcorrect
Rated output36 kWcorrect
Power band37<=kW<56correct
Rated speed1,600 rpmcorrect
Maximum torque214 N·mcorrect
Speed at max. torque1,600 rpmcorrect
Cylinders4correct
Cylinder layoutin linecorrect
Bore96 mmcorrect
Stroke102 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectiondirect injectioncorrect
Aspirationturbochargedcorrect
Turbocharger typewastegate turbochargercorrect
Emissions stageTier 4 (Final or Phase In)correct

Origin and approval

VersionZD30K06Ncorrect
Built from2012correct
Built to2012correct
Model year from2012correct
Model year to2018correct
Sales regionbothcorrect

Frequently asked questions

How much power does the Global Component Technologies ZD30 have?

The Global Component Technologies ZD30 delivers 36 kW.

When was the Global Component Technologies ZD30 built?

Production years: 2012-2018.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
