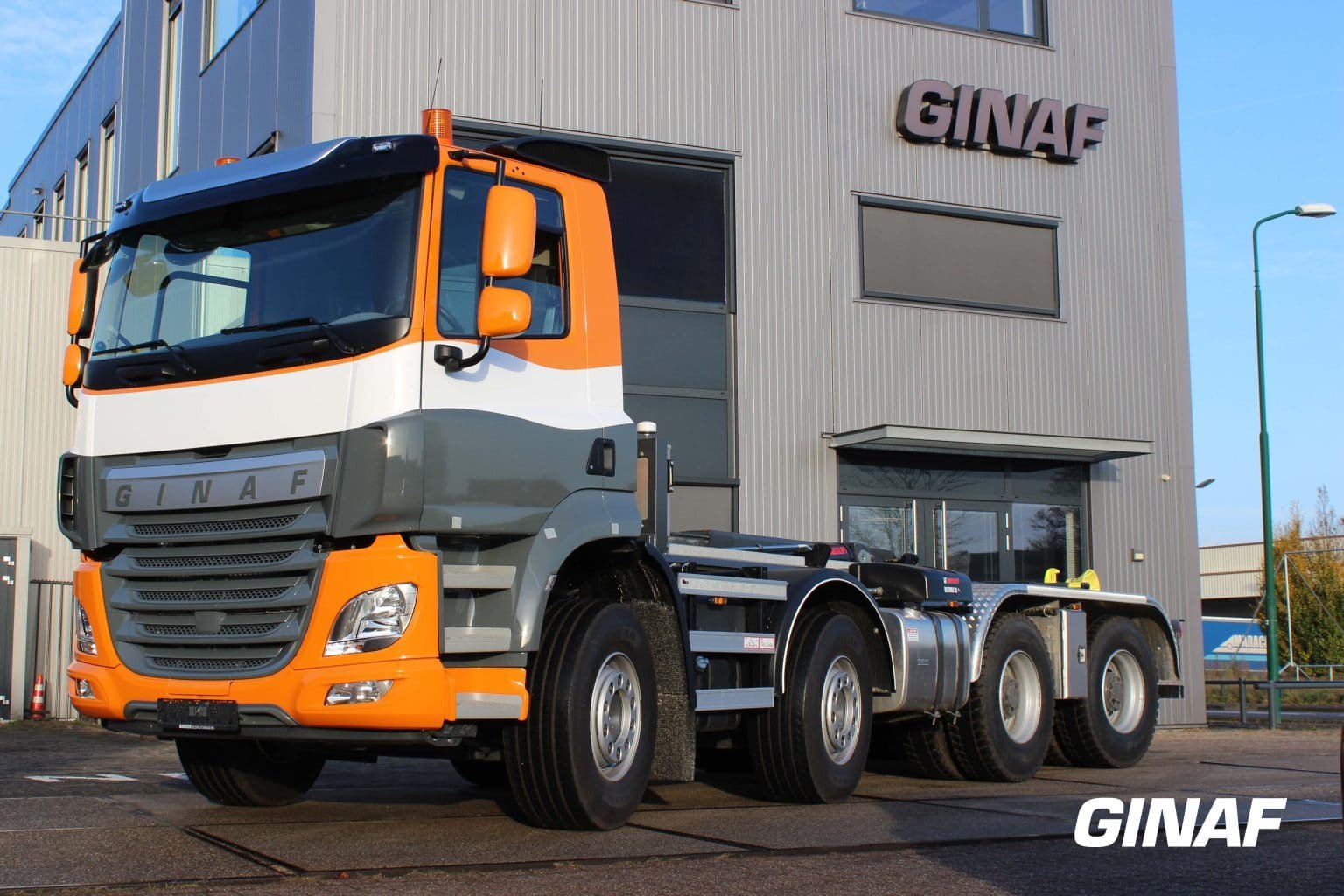

Ginaf XF 5249
Built: 2024 · Series: XF
More machines from model year 2024
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Ginaf XF – heavy off-road and special trucks from the Dutch manufacturer in Veenendaal on a DAF XF basis: six-cylinder of 12.9 litres displacement, 18.25 to 21.09 t unladen weight, 33 to 50 t gross weight
Ginaf XF denotes the vehicles built on the large DAF XF cab and engine by the Dutch manufacturer Ginaf of Veenendaal, which supplements its own multi-axle, all-wheel-drive chassis with DAF components. Unlike the smaller C range, the XF range uses the big six-cylinder engine of 12.9 litres displacement from the DAF XF range and is thus aimed at the heaviest applications: crane, heavy-haulage and special chassis for construction, recovery and military use.
Read on 3 more paragraphs
The register lists here 6 versions from six-cylinders of 12,902 cm³, unladen weights from 18,250 to 21,089 kg, gross weights from 33,000 to 50,000 kg, lengths from 8,750 to 11,150 mm and a width of 2,550 mm.
With gross weights up to 50 tonnes, the Ginaf XF range counts among the top class of off-road heavy-haulage chassis in Europe; it is used for crane bodies, recovery vehicles and special transports where the combination of high payload and full off-road capability is required.
On used Ginaf XF trucks, operating hours of the DAF engine, the condition of the transfer cases and multiple axle drives, rust on the frame and crane support points, the sealing of the hydraulic system on crane bodies, and the condition of tyres and rims count; spare parts run through Ginaf and the DAF network.
Sources: SpecCodex register, model data: Ginaf XF, Ginaf (manufacturer)
Technical data
Engine
| Cylinders | 6correct |
|---|---|
| Displacement | 12,902 cm³correct |
Dimensions and weights
| Length | 10,130 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 7,100 mmcorrect |
| Unladen weight | 18,844 kgcorrect |
| Gross vehicle weight | 49,000 kgcorrect |
Drivetrain and chassis
| Wheels | 14correct |
|---|---|
| Top speed | 90 km/hcorrect |
Frequently asked questions
How much does the Ginaf XF 5249 weigh?
The unladen weight is 18,844 kg.
What is the gross vehicle weight of the Ginaf XF 5249?
49,000 kg.
What engine does the Ginaf XF 5249 have?
6 cylinders, 12,902 cm³ displacement.
How fast does the Ginaf XF 5249 go?
Top speed is 90 km/h.
What are the dimensions of the Ginaf XF 5249?
10,130 mm × 2,550 mm.
When was the Ginaf XF 5249 built?
Production years: 2024.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 11 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
