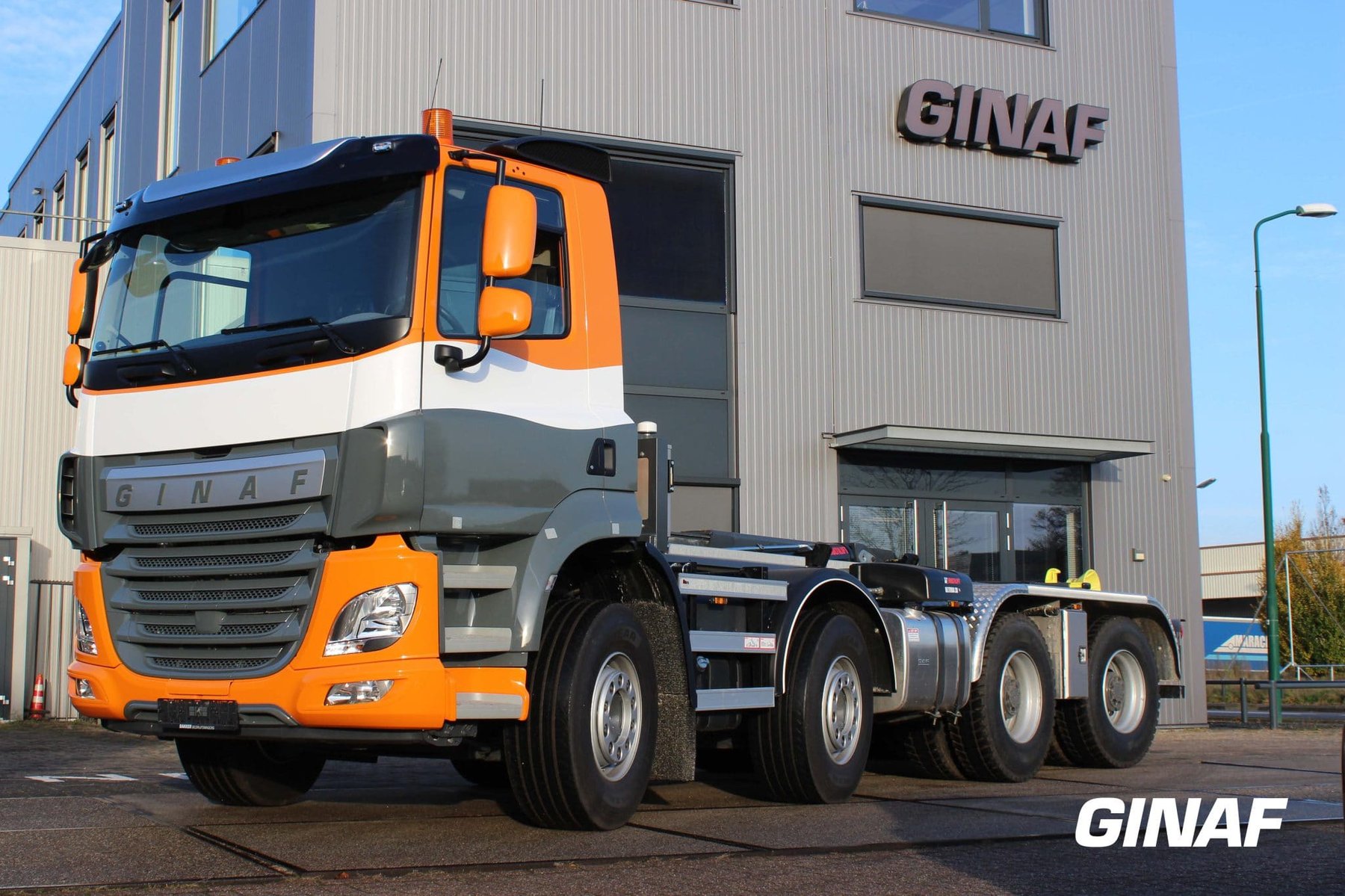

Ginaf XD 3132 F
Built: 2024 · Series: XD
More machines from model year 2024
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Ginaf XD – the collective page of Ginaf's heavy multi-axle trucks from Veenendaal: six-cylinder engines, 10,837 to 12,902 cm³, gross weights of 25,650 to 49,000 kg, three- to five-axle versions
This collective page gathers Ginaf's XD range, heavy multi-axle trucks from the Dutch manufacturer based in Veenendaal. Ginaf began in 1948 as a truck dealership run by brothers Wuf and Adrie van Ginkel, who initially rebuilt and sold surplus US Army vehicles, and became an independent manufacturer in the early 1960s under the name Van Ginkels Automobiel Fabriek. The vehicles are still built on DAF cabs and components, complemented by Ginaf's own multi-axle chassis for heavy-haulage, construction and off-road work; in the XD range's type designation the first digit gives the number of axles, from the three-axle XD 3132 to the five-axle XD 5249.
Read on 3 more paragraphs
The register lists 5 versions with displacements from 10,837 to 12,902 cm³ from six-cylinder engines throughout, unladen weights from 12,640 to 16,050 kg and gross weights from 25,650 to 49,000 kg; lengths range from 8,770 to 10,800 mm, widths from 2,540 to 2,550 mm.
Ginaf builds in a niche between series manufacturers and specialist vehicle builders, and specialises in heavy tippers, crane and heavy-haulage chassis and off-road multi-axle trucks for construction and the military; the close kinship with DAF eases servicing and parts supply despite the low production numbers.
On a used Ginaf XD, rust and cracks in the multi-axle frame, the condition of the transfer cases and differential locks, the mileage of the six-cylinder engine, and on tipper and crane bodies the condition of the hydraulics all count; chassis parts run through DAF, body-specific parts through the respective body builders.
Sources: SpecCodex register, model data: Ginaf XD, Ginaf Trucks (manufacturer)
Technical data
Engine
| Cylinders | 6correct |
|---|---|
| Displacement | 10,837 cm³correct |
Dimensions and weights
| Length | 9,200 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 5,600 mmcorrect |
| Unladen weight | 12,640 kgcorrect |
| Gross vehicle weight | 31,500 kgcorrect |
Drivetrain and chassis
| Wheels | 10correct |
|---|---|
| Top speed | 90 km/hcorrect |
Frequently asked questions
How much does the Ginaf XD 3132 F weigh?
The unladen weight is 12,640 kg.
What is the gross vehicle weight of the Ginaf XD 3132 F?
31,500 kg.
What engine does the Ginaf XD 3132 F have?
6 cylinders, 10,837 cm³ displacement.
How fast does the Ginaf XD 3132 F go?
Top speed is 90 km/h.
What are the dimensions of the Ginaf XD 3132 F?
9,200 mm × 2,550 mm.
When was the Ginaf XD 3132 F built?
Production years: 2024.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 11 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Other models in this series
Sources: RDW — Dutch national vehicle register (retrieved August 2026) · How we check the data
