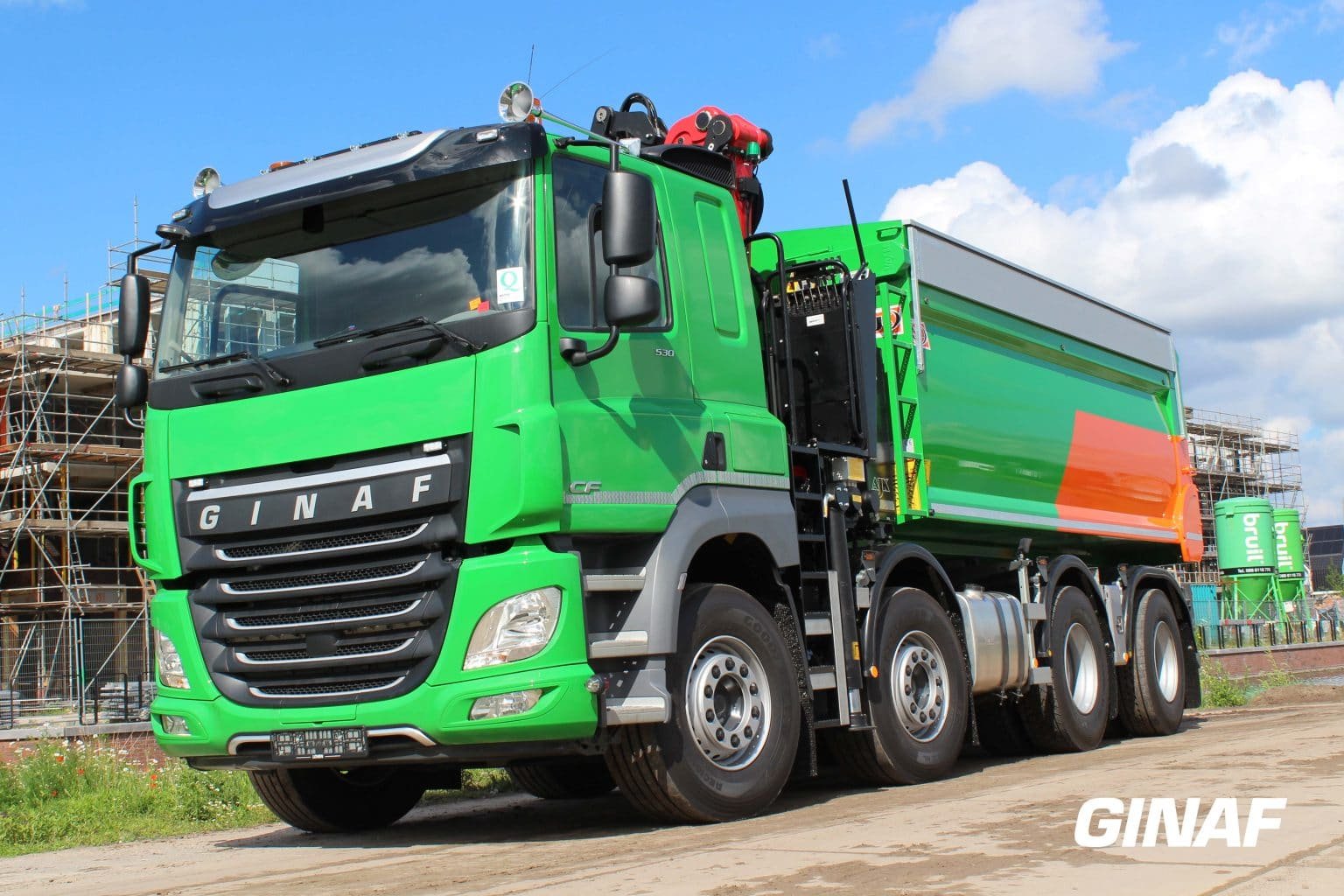

Ginaf X6 4142 CF
Built: 2014-2016 · Series: X6
More machines from model year 2014
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Ginaf X6 – the heavy multi-axle range from Veenendaal: chassis built on the DAF drivetrain with 6x6/8x8 drive, six-cylinder, 10.8 to 12.9 litres, up to 52.5 tonnes
Ginaf is a Dutch maker of heavy multi-axle trucks from Veenendaal that historically builds its vehicles on DAF components, adding extra axles for extreme payloads and off-road capability; the X6 range denotes the heavy, mostly all-wheel-drive chassis in three- and four-axle configurations for construction, crane and heavy transport. The type designations in the register such as X6 4344 CHS or X6 5250 CTSE combine a four-digit number for the weight and power class with a letter code denoting cab and chassis variants.
Read on 3 more paragraphs
The register lists here 43 versions, with six-cylinder engines throughout, displacements of 10,837 to 12,902 cm³, unladen weights of 16,230 to 43,750 kg, gross weights of 30,500 to 52,500 kg, lengths of 8,030 to 11,880 mm and widths of 2,500 to 2,820 mm.
Ginaf supplies above all the Dutch and north-west European market for heavy, construction and special-purpose vehicles, as well as the military, with vehicles combining series-production DAF drivetrains with Ginaf's own multi-axle chassis.
On a used example of these multi-axle vehicles, the condition of the transfer case, axles and propshafts of all driven axles, rust on the frame and bodywork, the hydraulic systems on tipper and crane versions, and the brakes and tyres across the axle set all count; parts run through Ginaf directly and through the DAF network for drivetrain components.
Sources: SpecCodex register, model data: Ginaf X6, Ginaf Trucks (manufacturer)
Technical data
Engine
| Cylinders | 6correct |
|---|---|
| Displacement | 12,902 cm³correct |
Dimensions and weights
| Length | 9,400 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 6,820 mmcorrect |
| Unladen weight | 16,410 kgcorrect |
| Gross vehicle weight | 41,500 kgcorrect |
Drivetrain and chassis
| Wheels | 12correct |
|---|
Frequently asked questions
How much does the Ginaf X6 4142 CF weigh?
The unladen weight is 16,410 kg.
What is the gross vehicle weight of the Ginaf X6 4142 CF?
41,500 kg.
What engine does the Ginaf X6 4142 CF have?
6 cylinders, 12,902 cm³ displacement.
What are the dimensions of the Ginaf X6 4142 CF?
9,400 mm × 2,550 mm.
When was the Ginaf X6 4142 CF built?
Production years: 2014-2016.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
