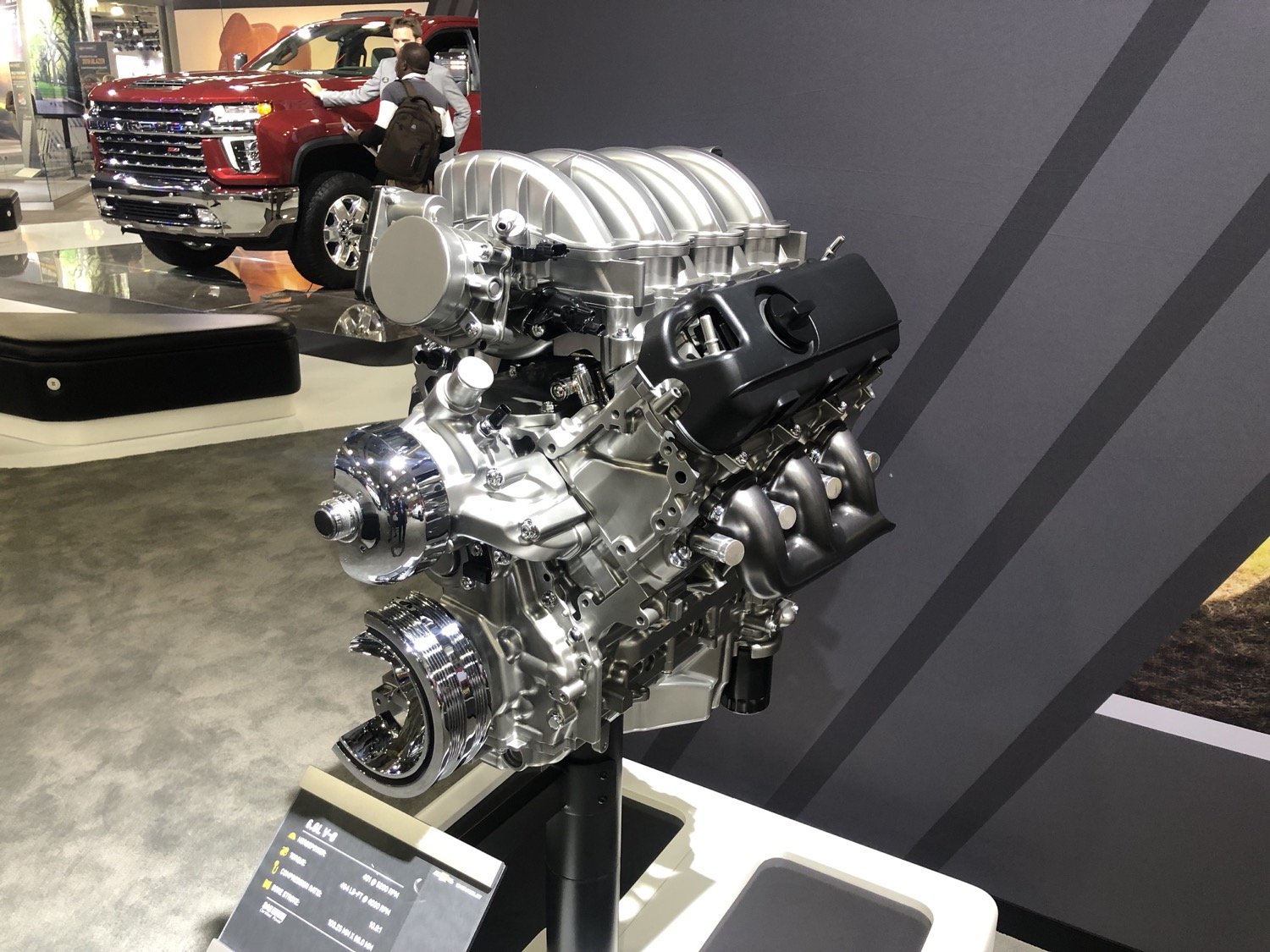

General Motors L8T

Built: 2020-2026 · Series: Other models

More machines from model year 2020

The L8T comes from General Motors. Production: 2020-2026. The engine has a displacement of 6,600 cm³. The fuel is petrol. The rated output is 261 kW. Application: Vocational. The engine is naturally aspirated. It is a petrol engine. Rated output across the General Motors range ranges from 181.2 to 261 kW; the L8T sits at the top of that range with 261 kW. Its immediate neighbours are the L96 below it with 221.5 kW. 35 General Motors models across 6 series are on record.

General Motors – other heavy-duty road engines: the collective page of EPA-certified units for heavy US commercial vehicles outside the named ranges, 243 to 350 hp, petrol and diesel, 4.8 to 6.6-litre displacement

General Motors gathers on this collective page engines for heavy US commercial vehicles and vans that the register could not assign to a named range. The group, headquartered in Detroit, was founded in 1908 and is one of the world's largest carmakers. The units listed here carry the factory designations 350, L20, L8T, L96 and LC8; the EPA engine-family codes, such as TGMXE06.6001 or CGMXE04.8581, encode displacement from 4.8 to 6.6 litres.

Read on 3 more paragraphs

The register lists here 5 versions with 243 to 350 hp rated output at 2,500 to 4,500 rpm. Four of the five engines run on petrol, one on ultra-low-sulphur diesel; injection is sequential fuel injection on three engines and direct injection on two. Maximum torque ranges from 284 to 750 Nm at 1,400 to 4,500 rpm, the certification model years range from 2012 to 2026.

Engines of these designations power heavy pickups, chassis-cab platforms and vans sold under the Chevrolet and GMC brands in the North American market; the parallel listing of petrol and diesel versions with a similar engine-family scheme shows GM's typical dual-fuel strategy in the heavy segment.

When buying used, operating hours and service history count, on the petrol versions the condition of spark plugs and injectors, on the diesel version the injection system and exhaust aftertreatment, plus the cooling system and the condition of the engine mounts; since these engines in heavy commercial vehicles are often run under trailer load, it is worth checking the clutch or automatic transmission and its cooling. Spares and service run through the GM authorised workshop network.

Sources: SpecCodex register, model data: General Motors (weitere Heavy-Duty-Straßenmotoren), General Motors (manufacturer)

Technical data

Engine

Engine code70correct
Engine familyTGMXE06.6001correct
Engine familiesTGMXE06.6001; SGMXE06.6003; RGMXE06.6001; RGMXE06.6003; PGMXE06.6001; NGMXE06.6001; MGMXE06.6001; LGMXE06.6001correct
Fuelpetrolcorrect
Rated output261 kW (= 350 hp)correct
Rated speed4,500 rpmcorrect
Maximum torque425 ft·lbfcorrect
Speed at max. torque3,800 rpmcorrect
Displacement6,600 cm³correct
Displacement6.6 lcorrect
Operating cyclepetrol enginecorrect
Injectiondirect injectioncorrect
Aspirationnaturally aspiratedcorrect

Origin and approval

Version70correct
Built from2020correct
Built to2026correct
Model year from2020correct
Model year to2026correct
Sales regionUSA certificationcorrect

Other data

ApplicationVocationalcorrect

Frequently asked questions

How much power does the General Motors L8T have?

The General Motors L8T delivers 261 kW.

What engine does the General Motors L8T have?

6,600 cm³ displacement, Gasoline.

When was the General Motors L8T built?

Production years: 2020-2026.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 23 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →

Other models in this series

Sources: US EPA — engine certification data (retrieved August 2026) · How we check the data

Diesel engine in 3D section

Turn the model, look inside and click an assembly — each one is explained.

Parts for this engine (122)

Manufacturer part numbers from the official EPA documentation. No prices or availability — those come from the supplier.

Part number Description Manufacturer
12727145 Data File - ECM Eng Caln General Motors
12740291 Data File ECM ENG CALN;Data File - ECM Eng Caln General Motors
12740292 Data File - ECM Eng Caln;Data File ECM ENG CALN General Motors
12740293 Data File ECM ENG CALN;Data File - ECM Eng Caln General Motors
12740294 Data File ECM ENG CALN;Data File - ECM Eng Caln General Motors
12740295 Data File ECM ENG CALN;Data File - ECM Eng Caln General Motors
12740296 Data File - ECM Eng Caln;Data File ECM ENG CALN General Motors
12813828 Data File - ECM Eng Caln General Motors
12813829 Data File - ECM Eng Caln General Motors
12813830 Data File - ECM Eng Caln General Motors
12813831 Data File - ECM Eng Caln General Motors
12813832 Data File - ECM Eng Caln General Motors
12813833 Data File - ECM Eng Caln General Motors
12727148 Data File - ECM Eng Diagn General Motors
12741282 Data File - ECM Eng Diagn General Motors
12743154 Data File - ECM Eng Diagn General Motors
12743155 Data File - ECM Eng Diagn General Motors
12743156 Data File - ECM Eng Diagn General Motors
12743157 Data File - ECM Eng Diagn General Motors
12745278 Data File - ECM Eng Diagn General Motors
12745279 Data File - ECM Eng Diagn General Motors
12745280 Data File - ECM Eng Diagn General Motors
12745281 Data File - ECM Eng Diagn General Motors
12729425 Data File - ECM Fuel Sys Caln;Data File ECM Fuel Sys Caln General Motors
12692663, 12711905 Data File ECM ENG CALN General Motors
12713330, 12718664 Data File ECM ENG CALN General Motors
12717105, 12725570 Data File ECM ENG CALN General Motors
12717106, 12725571 Data File ECM ENG CALN General Motors
12717146, 12729372 Data File ECM ENG CALN General Motors
12725570 Data File ECM ENG CALN General Motors
12725571 Data File ECM ENG CALN General Motors
12725572 Data File ECM ENG CALN General Motors
12725573 Data File ECM ENG CALN General Motors
12725574 Data File ECM ENG CALN General Motors
12729372 Data File ECM ENG CALN General Motors
12729420 Data File ECM ENG CALN General Motors
12729421 Data File ECM ENG CALN General Motors
12729422 Data File ECM ENG CALN General Motors
12729423 Data File ECM ENG CALN General Motors
12729424 Data File ECM ENG CALN General Motors
12736923 Data File ECM ENG CALN General Motors
e889099_Cert Data File ECM ENG CALN General Motors
12692662Cert, 12692662, 12711904 Data File ECM Eng Caln General Motors
12713331, 12718665 Data File ECM Eng Caln General Motors
12717104, 12725569 Data File ECM Eng Caln General Motors
12717145, 12729371 Data File ECM Eng Caln General Motors
12725569 Data File ECM Eng Caln General Motors
12727144 Data File ECM Eng Caln General Motors
12727146 Data File ECM Eng Caln General Motors
12729371 Data File ECM Eng Caln General Motors
12736922 Data File ECM Eng Caln General Motors
12741324 Data File ECM Eng Caln General Motors
12741325 Data File ECM Eng Caln General Motors
a192114667ga_cert, 12732676 Data File ECM Eng Caln General Motors
e889099_a212416761ga_Cert Data File ECM Eng Caln General Motors
12692665, 12711968 Data File ECM Eng Diagn General Motors
12692666, 12711969 Data File ECM Eng Diagn General Motors
12713332 Data File ECM Eng Diagn General Motors
12713333 Data File ECM Eng Diagn General Motors
12717107, 12725575 Data File ECM Eng Diagn General Motors
12717147 Data File ECM Eng Diagn General Motors
12717148 Data File ECM Eng Diagn General Motors
12723853 Data File ECM Eng Diagn General Motors
12723854 Data File ECM Eng Diagn General Motors
12723855 Data File ECM Eng Diagn General Motors
12725575 Data File ECM Eng Diagn General Motors
12725576 Data File ECM Eng Diagn General Motors
12727147 Data File ECM Eng Diagn General Motors
12727149 Data File ECM Eng Diagn General Motors
12729475 Data File ECM Eng Diagn General Motors
12729476 Data File ECM Eng Diagn General Motors
12736924 Data File ECM Eng Diagn General Motors
12736925 Data File ECM Eng Diagn General Motors
12739865 Data File ECM Eng Diagn General Motors
12739866 Data File ECM Eng Diagn General Motors
12739867 Data File ECM Eng Diagn General Motors
12740297 Data File ECM Eng Diagn General Motors
12740298 Data File ECM Eng Diagn General Motors
12740299 Data File ECM Eng Diagn General Motors
12740300 Data File ECM Eng Diagn General Motors
12741326 Data File ECM Eng Diagn General Motors
12741327 Data File ECM Eng Diagn General Motors
12692667, 12712267 Data File ECM Fuel Sys Caln General Motors
12713334 Data File ECM Fuel Sys Caln General Motors
12717108 Data File ECM Fuel Sys Caln General Motors
12692223, 12710194, 12713079 Engine Control Module General Motors
12711975, 12718562 Engine Control Module General Motors
12720095, 12725893 Engine Control Module General Motors
12725893 Engine Control Module General Motors
12737969 Engine Control Module General Motors
12742280 Engine Control Module General Motors
12692703 Fuel Injection Pump General Motors
12692703, 12719159 Fuel Injection Pump General Motors
12692703, 12719159, 12729746 Fuel Injection Pump General Motors
12692703, 12729746, 12719159 Fuel Injection Pump General Motors
12735882 Fuel Injection Pump General Motors
12687709, 12687710, 12687711, Fuel Injector General Motors
12696239, 12730215 Fuel Injector General Motors
12709470,12709471,12709472 Fuel Injector General Motors
12730215 Fuel Injector General Motors
12684286 Fuel Pressure General Motors
12684286, 12708493 Fuel Pressure General Motors
12708493 Fuel Pressure General Motors
12701247, 12711681 Intake Manifold Pressure General Motors
12711681 Intake Manifold Pressure General Motors
12670253 O2 Sensor Switching General Motors
12683551 O2 Sensor Switching General Motors
12735471 Other: Data File - ECM Eng Caln General Motors
12735472 Other: Data File - ECM Eng Caln General Motors
12735473 Other: Data File - ECM Eng Caln General Motors
12746273 Other: Data File - ECM Eng Caln General Motors
e889099_a212416763ga Other: Data File - ECM Eng Caln General Motors
12735474 Other: Data File - ECM Eng Diagn General Motors
12735475 Other: Data File - ECM Eng Diagn General Motors
12735476 Other: Data File - ECM Eng Diagn General Motors
12746097 Other: Data File - ECM Eng Diagn General Motors
12746098 Other: Data File - ECM Eng Diagn General Motors
12746099 Other: Data File - ECM Eng Diagn General Motors
12727150 Data File ECM Fuel Sys Caln;Other: Data File - ECM Fuel Sys Caln General Motors
12744077 Other: Data File - ECM Fuel Sys Caln General Motors
12696845 Three-Way Catalyst General Motors
12724204 Three-Way Catalyst General Motors

Source: EPA HD Engines 2015–Present
